Schneider Electric LV438274 — Molded Case Circuit Breakers (MCCB)

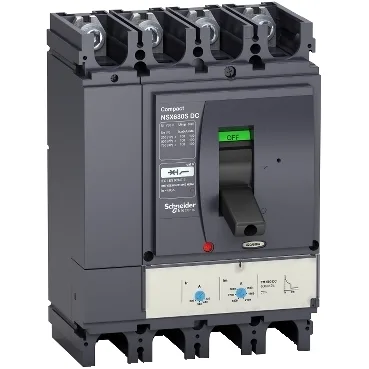

Schneider LV438274 ComPact NSX630S DC MCCB, 4-pole, 600 A, 100 kA

MPNLV438274

Obsolete

Schneider LV438274 Compact Nsx For Direct Current — now discontinued, supplied from remaining surplus and broker stock.

$2,539.98Ref. price · indicative, final on quote

Add to RFQ

Schneider Electric LV438274 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LV438274 — Identification
Parameter	Value
Product / component type	Circuit breaker
Device application	Distribution

LV438274 — Ratings
Parameter	Value
Number of poles	4P

LV438274 — Electrical
Parameter	Value
[In] rated current	600 A at 40 °C
[Ue] rated operational voltage	750 V DC
[Ui] rated insulation voltage	750 V DC conforming to IEC 60947-2

LV438274 — Specifications
Parameter	Value
Trip unit name	TM-DC
Trip unit technology	Thermal-magnetic
Device short name	NSX630S DC
Standards	EN/IEC 60947

Product details

Overview

The LV438274 is a Schneider ComPact NSX630S DC molded case circuit breaker rated for 600 A switching current with a thermal-magnetic TM-DC trip unit, built for 4-pole DC distribution on a 750 V DC insulated system. It delivers a 100 kA breaking capacity at 500 V DC (S-class) and carries EN/IEC 60947 certification, with pollution degree 3 and IK07 impact rating for industrial panel environments.

Compared to the 3-pole LV438278 (NSX500 DC, 500 A), the LV438274 adds a fourth pole and a higher 600 A trip rating — pick the LV438278 when the BOM calls for 3-pole or 500 A; stay with the LV438274 for 4-pole 600 A designs.
