Schneider Electric LV846316 MasterPact MTZ2 40HH Switch Disc

Name: LV846316
Brand: Schneider Electric
SKU: LV846316
Availability: LimitedAvailability
Author: Refurb Rosa

Specifications

Identification

LV846316 — Identification
Parameter	Value
Product type	Switch disconnector
Range	MasterPact
Application	Distribution

Electrical ratings

LV846316 — Electrical ratings
Parameter	Value
Rated operational voltage (Ue)	440 V AC 50/60 Hz conforming to EN/IEC 60947-3
Rated operational current (Ie)	4000 A AC 50/60 Hz 440 V
Poles	3P
Rated insulation voltage (Ui)	1000 V AC 50/60 Hz conforming to EN/IEC 60947-3
Rated impulse withstand voltage (Uimp)	12 kV conforming to EN/IEC 60947-3
Network type	AC
Network frequency	50/60 Hz
Suitable for isolation	Yes conforming to EN/IEC 60947-3

Breaking & withstand capacity

LV846316 — Breaking & withstand capacity
Parameter	Value
Rated service breaking capacity (Ics)	100 kA at 220/415 V AC 50/60 Hz conforming to EN/IEC 60947-2 100 kA at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
Rated short-time withstand current (Icw)	75 kA during 3 s conforming to EN/IEC 60947-3 100 kA during 1 s conforming to EN/IEC 60947-3
Rated short-circuit making capacity (Icm)	220 kA peak 220/415 V AC at 50/60 Hz 220 kA peak 440 V AC at 50/60 Hz
Breaking capacity	100 kA Icu at 220/415 V AC 50/60 Hz conforming to EN/IEC 60947-2 100 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2

Performance

LV846316 — Performance
Parameter	Value
Mechanical durability (cycles)	15000 cycles with periodic preventive maintenance conforming to EN/IEC 60947-3
Electrical durability (cycles)	AC-23A: 5000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3
Utilisation category	AC-23A AC-3

Mechanical & connection

LV846316 — Mechanical & connection
Parameter	Value
Control type	Push-button
Mounting mode	Fixed
Contact position indicator	Yes
Width	422 mm
Height	352 mm
Depth	300 mm
Connection pitch	115 mm

Environmental

LV846316 — Environmental
Parameter	Value
Operating ambient temperature	-25...70 °C
Storage ambient temperature	-40...85 °C
IP degree of protection	IP30
Pollution degree	3 conforming to EN/IEC 60947-4-1

Approvals

LV846316 — Approvals
Parameter	Value
Standards	EN/IEC 60947-3

Product details

Switch disconnector for main distribution

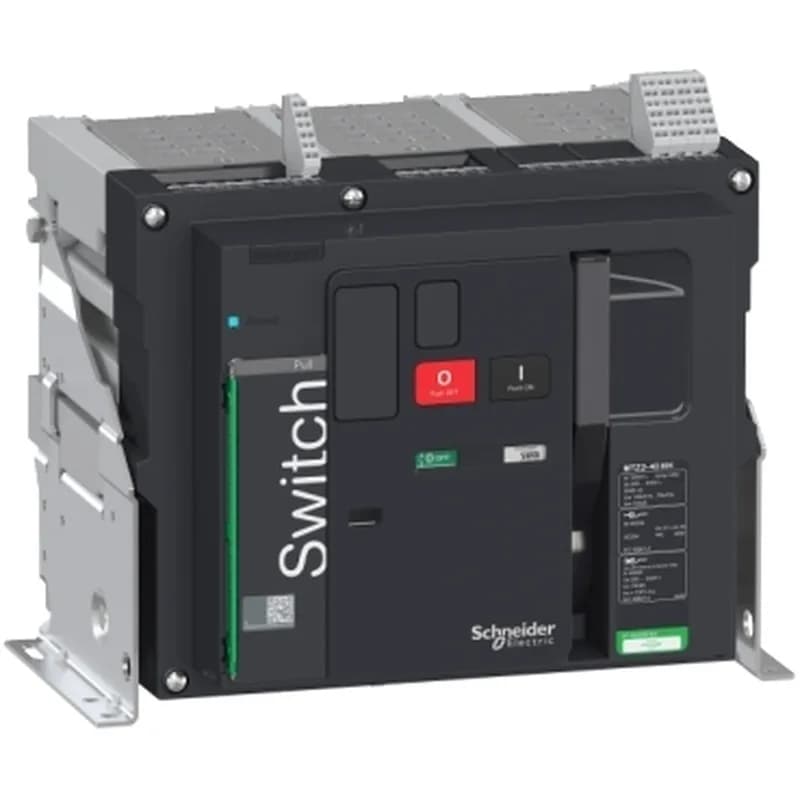

The Schneider Electric LV846316 is a MasterPact MTZ2 40HH switch disconnector rated for 4000 A continuous current at 440 V AC, with a breaking capacity of 100 kA Icu at 415 V AC. This 3-pole fixed-mount unit serves as the main disconnect in low-voltage power distribution, providing visible isolation per EN/IEC 60947-3 with a contact position indicator and suitability for isolation marked on the device.

Breaking capacity and duty ratings

Rated short-time withstand current is 75 kA for 3 s, giving downstream breakers time to clear before the main device trips. The making capacity of 220 kA peak at 440 V AC handles the asymmetrical first half-cycle of a bolted fault.

Fixed-mount chassis with a 422 mm width, 352 mm height, and 300 mm depth — sized for standard low-voltage switchgear cubicles. IP30 front protection keeps hands out but expects enclosure sealing for washdown areas.
