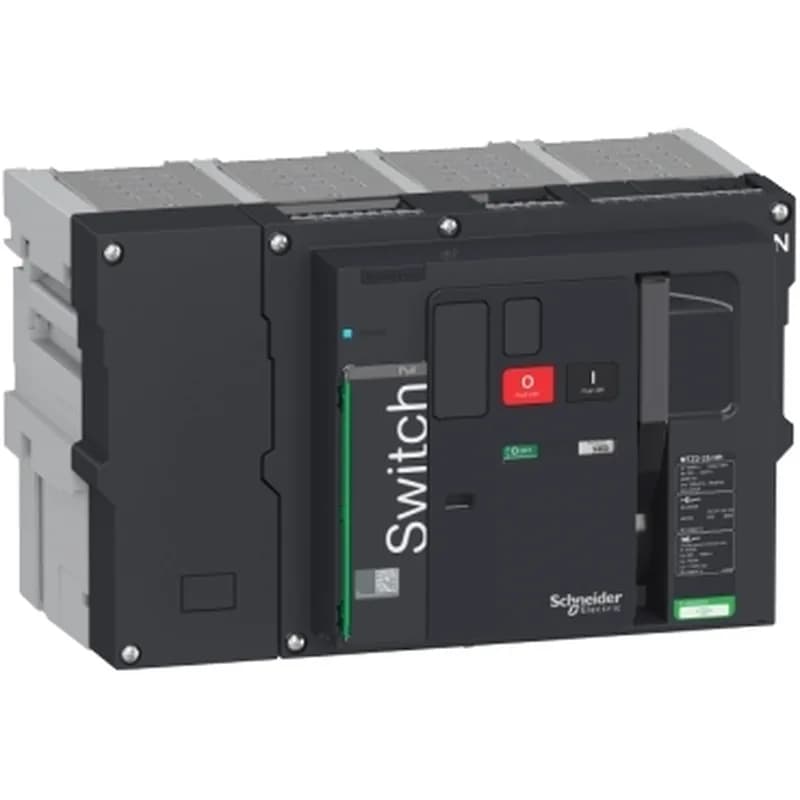

Schneider Electric LV846347 MasterPact MTZ2 25HH Switch Disc

MPNLV846347
Active

Schneider Electric MasterPact MTZ2 25HH switch disconnector, LV846347, 2500 A, 100 kA Icu at 440 V AC, 4P drawout, right Neutral.

$9,864.99Ref. price · indicative, final on quote
Schneider Electric LV846347 datasheet (PDF)
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

LV846347 — Identification
ParameterValue
Product typeSwitch disconnector
RangeMasterPact
ApplicationDistribution

Electrical ratings

LV846347 — Electrical ratings
ParameterValue
Rated operational voltage (Ue)440 V AC 50/60 Hz conforming to EN/IEC 60947-3
Rated operational current (Ie)2500 A AC 50/60 Hz 440 V
Poles4P
Rated insulation voltage (Ui)1000 V AC 50/60 Hz conforming to EN/IEC 60947-3
Rated impulse withstand voltage (Uimp)12 kV conforming to EN/IEC 60947-3
Network typeAC
Network frequency50/60 Hz
Suitable for isolationYes conforming to EN/IEC 60947-3

Breaking & withstand capacity

LV846347 — Breaking & withstand capacity
ParameterValue
Rated service breaking capacity (Ics)100 kA at 220/415 V AC 50/60 Hz conforming to EN/IEC 60947-2 100 kA at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
Rated short-time withstand current (Icw)75 kA during 3 s conforming to EN/IEC 60947-3 100 kA during 1 s conforming to EN/IEC 60947-3
Rated short-circuit making capacity (Icm)220 kA peak 220/415 V AC at 50/60 Hz 220 kA peak 440 V AC at 50/60 Hz
Breaking capacity100 kA Icu at 220/415 V AC 50/60 Hz conforming to EN/IEC 60947-2 100 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2

Performance

LV846347 — Performance
ParameterValue
Mechanical durability (cycles)15000 cycles with periodic preventive maintenance conforming to EN/IEC 60947-3
Electrical durability (cycles)AC-23A: 5000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3
Utilisation categoryAC-23A AC-3

Mechanical & connection

LV846347 — Mechanical & connection
ParameterValue
Control typePush-button
Mounting modeDrawout
Mounting supportChassis
Contact position indicatorYes
Width556 mm
Height439 mm
Depth403 mm
Connection pitch115 mm

Environmental

LV846347 — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP30
Pollution degree3 conforming to EN/IEC 60947-4-1

Approvals

LV846347 — Approvals
ParameterValue
StandardsEN/IEC 60947-3

Product details

The Schneider Electric LV846347 is a MasterPact MTZ2 25HH switch disconnector rated for 2500 A operational current at 440 V AC, 50/60 Hz. The 4-pole drawout chassis mounts into a dedicated cradle, so you can rack it out for maintenance without disturbing the bus bars.

Rated for isolation per EN/IEC 60947-3, with a visible contact position indicator and a 12 kV impulse withstand voltage (Uimp). The utilisation category covers AC-23A and AC-3. Electrical durability is 5000 cycles at 440 V under AC-23A; mechanical durability is 15000 cycles with periodic preventive maintenance.

Drawout mounting on a chassis — the cradle is ordered separately (MasterPact MTZ2 drawout cradle). The unit is 556 mm wide, 439 mm high, 403 mm deep; connection pitch is 115 mm. IP30 front protection keeps hands out but is not sealed against washdown — install in a clean, dry switchgear lineup.
