Schneider Electric LV847160 MasterPact MTZ1 06HA, 630A, 4P,

MPNLV847160
Active

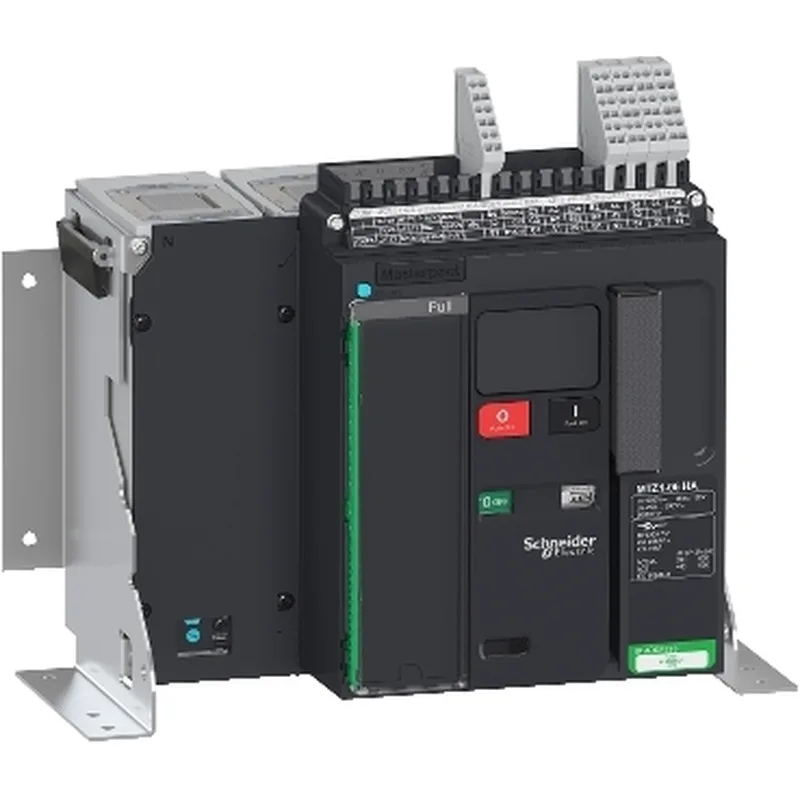

Schneider Electric MasterPact MTZ1 06HA switch disconnector, LV847160, 630 A, 75 kA/690 VAC, 4P, fixed, front-front connection.

Schneider Electric LV847160 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

LV847160 — Identification
ParameterValue
Product typeSwitch disconnector
RangeMasterPact
ApplicationDistribution
LV847160 — Electrical ratings
ParameterValue
Rated operational voltage (Ue)690 V AC 50/60 Hz conforming to EN/IEC 60947-3
Rated operational current (Ie)630 A AC 50/60 Hz 690 V
Poles4P
Rated insulation voltage (Ui)1000 V AC 50/60 Hz conforming to EN/IEC 60947-3
Rated impulse withstand voltage (Uimp)12 kV conforming to EN/IEC 60947-3
Network typeAC
Network frequency50/60 Hz
Suitable for isolationYes conforming to EN/IEC 60947-3
LV847160 — Breaking & withstand capacity
ParameterValue
Rated short-time withstand current (Icw)20 kA during 3 s conforming to EN/IEC 60947-3 36 kA during 0.5 s conforming to EN/IEC 60947-3 36 kA during 1 s
Rated short-circuit making capacity (Icm)75 kA peak 220...690 V AC at 50/60 Hz
LV847160 — Performance
ParameterValue
Mechanical durability (cycles)12500 cycles with periodic preventive maintenance conforming to EN/IEC 60947-3
Electrical durability (cycles)AC-23A: 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3 AC-23A: 3000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3 AC-3: 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3
Utilisation categoryAC-23A AC-3
LV847160 — Mechanical & connection
ParameterValue
Control typePush-button
Mounting modeFixed
Contact position indicatorYes
Width346 mm
Height301 mm
Depth209 mm
Connection pitch70 mm
Upside connectionFront
Downside connectionFront
LV847160 — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP30
Pollution degree3 conforming to EN/IEC 60947-4-1
LV847160 — Approvals
ParameterValue
StandardsEN/IEC 60947-3

Product details

The LV847160 is a fixed-mount MasterPact MTZ1 06HA switch disconnector rated 630 A at 690 V AC, 50/60 Hz, with a 75 kA peak short-circuit making capacity (Icm). It is a 4-pole, front-front connected unit suited for distribution-level isolation and switching per EN/IEC 60947-3.

Ratings and isolation capability

Rated operational current 630 A in AC-23A and AC-3 utilisation categories. Short-time withstand current (Icw) is 20 kA for 3 s, 36 kA for 1 s, and 36 kA for 0.5 s. Rated impulse withstand voltage 12 kV. The device is certified for isolation (suitability for isolation Yes per EN/IEC 60947-3), with a visible contact position indicator and a push-button control type.

Frequently asked questions

What is LV847160's listed depth (209 mm) on this component line?

The LV847160 has a depth of 209 mm, width 346 mm, height 301 mm, and a connection pitch of 70 mm.

What is LV847160's listed range (MasterPact) on this component line?

The LV847160 belongs to the MasterPact range, specifically the MasterPact MTZ1 06 HA switch-disconnector name.
