Schneider Electric LV847261 — Air Circuit Breakers

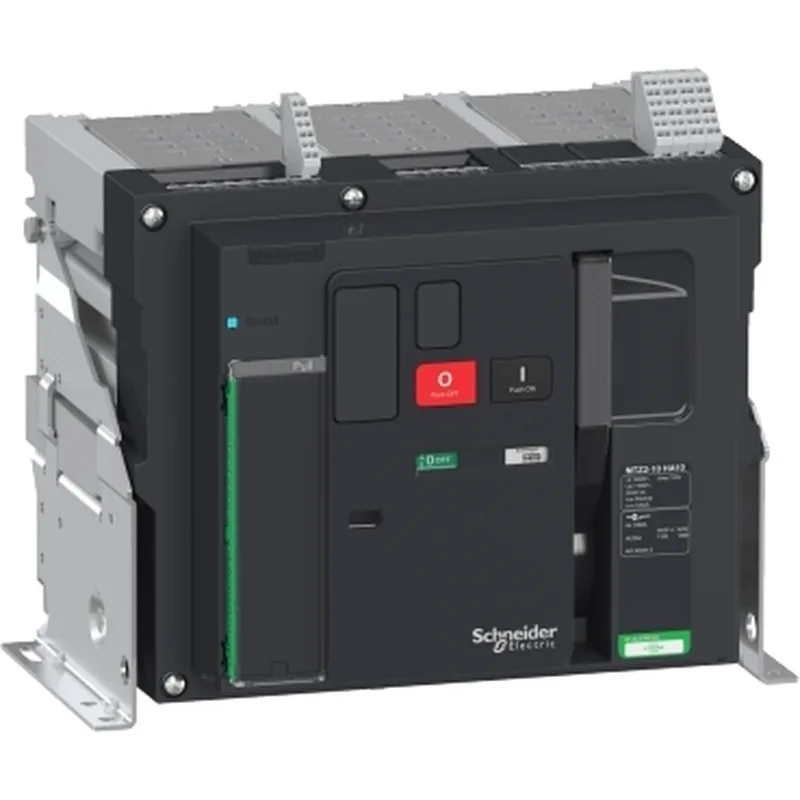

LV847261 MasterPact MTZ2 10 HA10, 1000 A, 3P, fixed switch d

MPNLV847261
Active

Schneider Electric MasterPact MTZ2 10 HA10 switch disconnector, LV847261, 1000 A, 1150 V AC, 105 kA Icm, 3P, fixed mounting, push-button control.

Schneider Electric LV847261 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

LV847261 — Identification
ParameterValue
Product typeSwitch disconnector
RangeMasterPact
ApplicationDistribution
LV847261 — Electrical ratings
ParameterValue
Rated operational voltage (Ue)1150 V AC 50/60 Hz conforming to EN/IEC 60947-3
Rated operational current (Ie)1000 A AC 50/60 Hz 1150 V
Poles3P
Rated insulation voltage (Ui)1250 V AC 50/60 Hz conforming to EN/IEC 60947-3
Rated impulse withstand voltage (Uimp)12 kV conforming to EN/IEC 60947-3
Network typeAC
Network frequency50/60 Hz
Suitable for isolationYes conforming to EN/IEC 60947-3
LV847261 — Breaking & withstand capacity
ParameterValue
Rated short-time withstand current (Icw)50 kA during 1 s conforming to EN/IEC 60947-3 50 kA during 3 s conforming to EN/IEC 60947-3
Rated short-circuit making capacity (Icm)105 kA peak 1150 V AC at 50/60 Hz
LV847261 — Performance
ParameterValue
Mechanical durability (cycles)25000 cycles with periodic preventive maintenance conforming to EN/IEC 60947-3
Electrical durability (cycles)AC-23A: 500 cycles 1150 V AC 50/60 Hz conforming to EN/IEC 60947-3
Utilisation categoryAC-23A AC-3
LV847261 — Mechanical & connection
ParameterValue
Control typePush-button
Mounting modeFixed
Contact position indicatorYes
Width422 mm
Height352 mm
Depth300 mm
Connection pitch115 mm
LV847261 — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP30
Pollution degree3 conforming to EN/IEC 60947-4-1
LV847261 — Approvals
ParameterValue
StandardsEN/IEC 60947-3

Product details

Switch disconnector for distribution — 1000 A, 1150 V, 105 kA Icm

The LV847261 is a Schneider Electric MasterPact MTZ2 10 HA10 switch disconnector rated 1000 A AC at 1150 V, 50/60 Hz, with a short-circuit making capacity of 105 kA peak at that voltage. Three poles, fixed mounting, push-button control. Suitability for isolation per EN/IEC 60947-3 is confirmed — visible break is not provided, but the contact position indicator shows open/closed state. Utilisation category AC-23A (switching motor loads and other highly inductive loads) and AC-3 (squirrel-cage motor starting/switching) means this unit handles both distribution and motor-circuit isolation. The 50 kA short-time withstand (Icw) for 1 s and 3 s gives selectivity headroom in high-fault panels.

Frequently asked questions

What are the key ratings of LV847261?

Rated operational current 1000 A AC at 1150 V, 50/60 Hz. Short-circuit making capacity 105 kA peak. Short-time withstand 50 kA for 1 s and 3 s. Three poles, fixed mount, push-button control. Suitability for isolation per EN/IEC 60947-3.

Where can I buy LV847261 and how is it quoted?

Sourced and quoted to order against an RFQ through independent distribution channels. Availability and current pricing are confirmed at the time of quote — no stock or price figures are published here.

Does LV847261 comply with EN/IEC 60947-3?

Yes, the switch disconnector is designed and certified to EN/IEC 60947-3, covering isolation, making/breaking capacity, and short-circuit performance. Pollution degree 3 per EN/IEC 60947-4-1 also applies.
