Schneider Electric LV847272 — Air Circuit Breakers

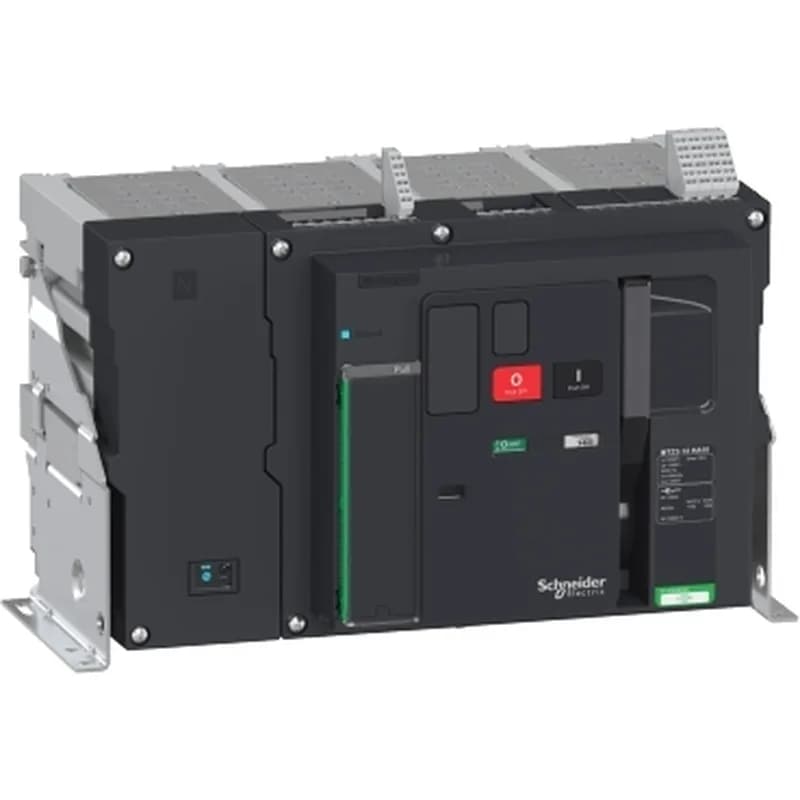

Schneider Electric LV847272 MasterPact MTZ2 12 HA10 Switch D

MPNLV847272
Active

Schneider Electric MasterPact MTZ2 12 HA10, LV847272, switch disconnector, 1250 A, 105 kA / 1150 V AC, 4P, fixed mount.

Schneider Electric LV847272 datasheet (PDF)
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

LV847272 — Identification
ParameterValue
Product typeSwitch disconnector
RangeMasterPact
ApplicationDistribution

Electrical ratings

LV847272 — Electrical ratings
ParameterValue
Rated operational voltage (Ue)1150 V AC 50/60 Hz conforming to EN/IEC 60947-3
Rated operational current (Ie)1250 A AC 50/60 Hz 1150 V
Poles4P
Rated insulation voltage (Ui)1250 V AC 50/60 Hz conforming to EN/IEC 60947-3
Rated impulse withstand voltage (Uimp)12 kV conforming to EN/IEC 60947-3
Network typeAC
Network frequency50/60 Hz
Suitable for isolationYes conforming to EN/IEC 60947-3

Breaking & withstand capacity

LV847272 — Breaking & withstand capacity
ParameterValue
Rated short-time withstand current (Icw)50 kA during 1 s conforming to EN/IEC 60947-3 50 kA during 3 s conforming to EN/IEC 60947-3
Rated short-circuit making capacity (Icm)105 kA peak 1150 V AC at 50/60 Hz

Performance

LV847272 — Performance
ParameterValue
Mechanical durability (cycles)25000 cycles with periodic preventive maintenance conforming to EN/IEC 60947-3
Electrical durability (cycles)AC-23A: 500 cycles 1150 V AC 50/60 Hz conforming to EN/IEC 60947-3
Utilisation categoryAC-23A AC-3

Mechanical & connection

LV847272 — Mechanical & connection
ParameterValue
Control typePush-button
Mounting modeFixed
Contact position indicatorYes
Width537 mm
Height352 mm
Depth300 mm
Connection pitch115 mm

Environmental

LV847272 — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP30
Pollution degree3 conforming to EN/IEC 60947-4-1

Approvals

LV847272 — Approvals
ParameterValue
StandardsEN/IEC 60947-3

Product details

The Schneider Electric LV847272 is a MasterPact MTZ2 12 HA10 switch disconnector rated for 1250 A continuous at 1150 V AC, 50/60 Hz. The 50 kA short-time withstand for 1 s (and 3 s) gives selectivity headroom downstream; you can coordinate it with feeders rated up to that let-through.

Fixed-mount, 4-pole footprint: 537 mm wide, 352 mm tall, 300 mm deep.

Rated insulation voltage 1250 V AC, impulse withstand 12 kV. Utilisation categories AC-23A and AC-3 cover motor switching (AC-3) and mixed resistive-inductive loads (AC-23A). Electrical durability is 500 cycles at 1150 V in AC-23A; mechanical durability is 25,000 cycles with periodic maintenance. Push-button control, no visible break window — the contact position indicator is mechanical, not a transparent arc chamber.
