Schneider Electric LV847483 — Air Circuit Breakers

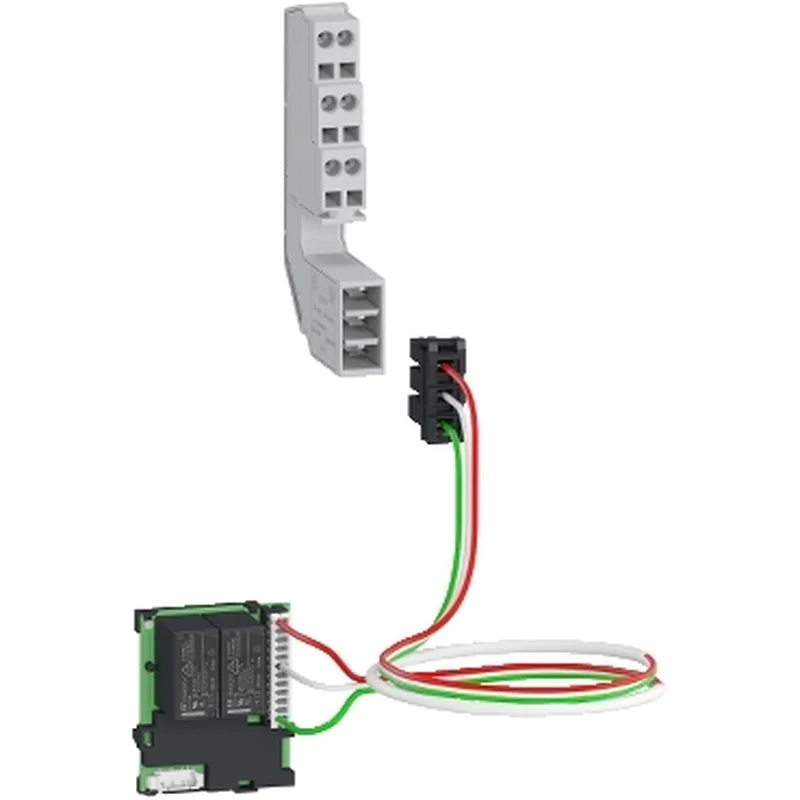

Schneider LV847483 MasterPact M2c Programmable Contact, 2 NO

MPNLV847483
Active

Schneider Electric MasterPact MTZ1, M2c programmable contact, drawout, 2 NO signal contacts, 3 A at 250 V AC / 3 A at 30 V DC.

$492.09Ref. price · indicative, final on quote
Schneider Electric LV847483 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

LV847483 — Identification
ParameterValue
Product typeProgrammable contact
RangeMasterPact
ApplicationSafety logic controller
LV847483 — Electrical ratings
ParameterValue
Rated operational current (Ie)3 A at 250 V AC 3 A at 30 V DC
LV847483 — Other specifications
ParameterValue
Minimum load10 mA at 5 V DC
Device short nameM2c
Number of contacts2
Signal contacts composition2 NO
Circuit breaker mounting modeDrawout

Product details

The LV847483 is a MasterPact M2c programmable contact designed for the MasterPact MTZ1 drawout circuit breaker platform. It functions as a safety logic controller element with 2 normally-open signal contacts, each rated 3 A at 250 V AC and 3 A at 30 V DC. The minimum load it reliably switches is 10 mA at 5 V DC, which matters when the contact is used in low-energy logic circuits — below that threshold, oxide films on the silver-alloy contacts may not break down, causing intermittent opens in PLC or safety-relay inputs.

The drawout mounting style means the contact block plugs into the MTZ1 cradle without disturbing the breaker's power connections. This is standard for MasterPact switchgear — the programmable contact is wired to the control wiring harness, and the entire assembly slides into the cassette. The 2 NO configuration gives two isolated signal paths, typically used for dual-channel safety circuits or separate status feedback to the PLC and a local annunciator.

Frequently asked questions

Where can I buy LV847483 and how do I get a price?

The LV847483 is sourced and quoted to order against an RFQ through independent distribution. Submit an RFQ for current availability and pricing — no stock count or price is listed here because both fluctuate with supply.

What is the minimum load the LV847483 contacts can switch?

The minimum load is 10 mA at 5 V DC. Below that, contact oxidation may prevent reliable switching in low-energy circuits.

What compliance documentation does Schneider provide for LV847483?

As a MasterPact component, the LV847483 is covered by the standard Schneider compliance documentation package — typically RoHS, REACH, and applicable IEC/UL standards for the MTZ1 platform. Specific declarations are available on request at quote time.
