Schneider Electric LV848079 — Air Circuit Breakers

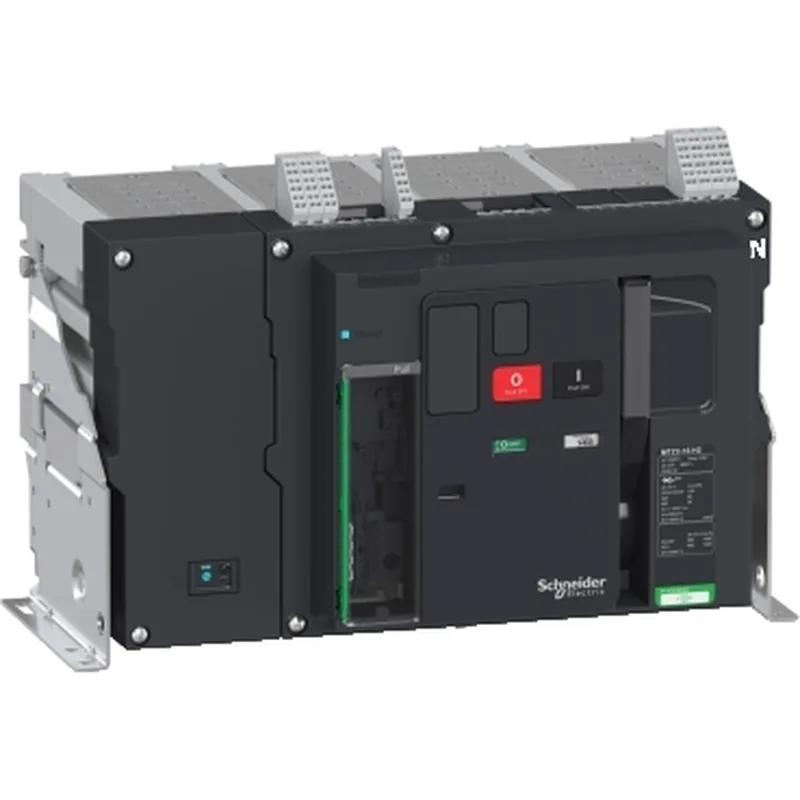

Schneider Electric LV848079 MasterPact MTZ2 2500A 4P Circuit

MPNLV848079
Active

Schneider Electric, MasterPacT range, MasterPact MTZ2 25 H2, 4P fixed circuit breaker, 2500 A at 40 °C, H2 100 kA at 415 V AC.

Schneider Electric LV848079 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

LV848079 — Identification
ParameterValue
Product typeCircuit breaker
Product nameMasterPact MTZ2
RangeMasterPacT
ApplicationPower distribution protection
Control unitWithout control unit
LV848079 — Electrical ratings
ParameterValue
Rated current (In)2500 A at 40 °C
Sensor rating1250 A 1600 A 2000 A 2500 A
Rated operational voltage (Ue)690 V AC 50/60 Hz
Poles4P
Rated insulation voltage (Ui)1000 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)12 kV
Suitable for isolationYes conforming to EN/IEC 60947-2
LV848079 — Breaking & withstand capacity
ParameterValue
Rated ultimate breaking capacity (Icu)100 kA at 220/415 V AC 50/60 Hz 100 kA at 440 V AC 50/60 Hz 85 kA at 500/525 V AC 50/60 Hz 85 kA at 660/690 V AC 50/60 Hz
Rated service breaking capacity (Ics)100 kA at 220/415 V AC 50/60 Hz 100 kA at 440 V AC 50/60 Hz 85 kA at 500/525 V AC 50/60 Hz 85 kA at 660/690 V AC 50/60 Hz
Rated short-time withstand current (Icw)85 kA 0.5 s 85 kA 1 s 75 kA 3 s
Rated short-circuit making capacity (Icm)220 kA 220/415 V AC at 50/60 Hz 220 kA 440 V AC at 50/60 Hz 187 kA 500/525 V AC at 50/60 Hz 187 kA 660/690 V AC at 50/60 Hz
Performance typeH2 100 kA 415 V AC
LV848079 — Performance
ParameterValue
Breaking time, max.25 ms
Closing response time, max.70 ms
Mechanical durability (cycles)20000 cycles with periodic preventive maintenance
Electrical durability (cycles)AC-3: 6000 cycles 440/690 V AC 50/60 Hz conforming to EN/IEC 60947-3 2500 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-2 5000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 AC-23A: 2500 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3 AC-23A: 5000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3
Selectivity categoryCategory B
Power dissipation260 W
LV848079 — Mechanical & connection
ParameterValue
Control typePush-button
Mounting modeFixed
Mounting supportRails Base plate
Width537 mm
Height352 mm
Depth300 mm
Neutral pole positionRight
Connection pitch115 mm
Upside connectionFront Rear
Downside connectionFront Rear
LV848079 — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP30 conforming to EN 60529
Pollution degree3 conforming to IEC 60947-1
Operating altitude0...2000 m without derating 2000...5000 m with derating
LV848079 — Approvals
ParameterValue
StandardsEN/IEC 60947-1 EN/IEC 60947-2 EN/IEC 60947-2 Annex H IEC 61557-12

Product details

MasterPact MTZ2 2500 A — fixed-mount power breaker

The Schneider Electric LV848079 is a MasterPact MTZ2 25 H2 fixed-mount circuit breaker, rated 2500 A at 40 °C with a 4-pole configuration. Category B selectivity means it coordinates with downstream breakers to isolate faults without blacking out upstream feeders, critical for service continuity in industrial switchboards.

Breaking performance and withstand

Service breaking capacity (Ics) holds 100 kA at 220/415 V and 440 V, derating to 85 kA at 500/525 V and 85 kA at 660/690 V. Short-time withstand (Icw) is 85 kA for 1 s, 75 kA for 3 s — the sustained fault window a downstream relay might need to clear. Making capacity (Icm) peaks at 220 kA at 415 V. Maximum total break time is 25 ms; closing response is 70 ms. These numbers define the SCCR headroom for coordination studies.

Insulation and environment

Rated insulation voltage (Ui) is 1000 V AC, operational voltage (Ue) 690 V AC, with an impulse withstand (Uimp) of 12 kV. Connection pitch is 115 mm. Operating range is -25 to 70 °C, storage -40 to 85 °C, altitude up to 2000 m without derating.

Frequently asked questions

What are the key ratings for LV848079?

The LV848079 is rated 2500 A at 40 °C, 4-pole, with an H2 breaking capacity of 100 kA at 415 V AC. Its rated operational voltage is 690 V AC, insulation voltage 1000 V AC, and impulse withstand 12 kV.

Where can I buy LV848079 and how is it quoted?

The LV848079 is sourced and quoted to order against an RFQ through independent distribution channels. Availability and current pricing are confirmed at the time of quotation.

What compliance standards does LV848079 meet?

It complies with EN/IEC 60947-1, EN/IEC 60947-2, EN/IEC 60947-2 Annex H, and IEC 61557-12. It is suitable for isolation per EN/IEC 60947-2.
