The LX0FG011 is a TeSys F contactor coil — the solenoid that pulls the main contactor in when energized. Rated for 415 V AC control voltage, with a latching voltage tolerance of 0.85 to 1.1 times Uc and unlatching tolerance in the same band. Verify against your control transformer's regulation under load. Latching time is 35 to 40 ms; unlatching takes 50 to 100 ms. Coil resistance measures 102.3 Ω for the latching winding and 14305 Ω for the unlatching winding at 20 °C. These values let you calculate inrush and hold current for your control circuit sizing. That's a standard-duty coil for typical motor-starting applications — not intended for high-speed cycling like a welding press or rapid-reversing conveyor.

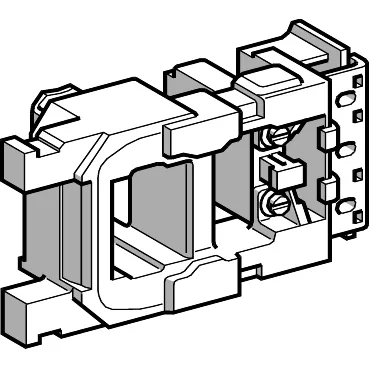

TeSys LX0FG011 Contactor Coil, 415 V AC, Obsolete
MPNLX0FG011
Obsolete
TeSys F, contactor coil, LX0FG011, 415 V AC 50/60 Hz, obsolete.
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Contactor coil |
| Product range | TeSys |
| Device short name | LX0FG |
| Parameter | Value |
|---|---|
| Control circuit voltage [Uc] | 415 V AC 50/60 Hz |
| Control circuit type | AC 50/60 Hz |
| Control circuit voltage limits | Latching: 0.85...1.1 Uc Unlatching: 0.85...1.1 Uc |
| Coil resistance (avg.) | 102.3 Ohm latching 68 °F (20 °C) 14305 Ohm unlatching 68 °F (20 °C) |
| Parameter | Value |
|---|---|
| Operating time | 35...40 ms latching 50...100 ms unlatching |
| Max. operating rate | 120 cyc/h 104 °F (40 °C) |
| Mechanical durability | 1 Mcycles |
Product details
Frequently asked questions
What is the closest alternative to LX0FG011?
No official successor is recorded in the lifecycle data. A parametric search for a TeSys F coil rated 415 V AC 50/60 Hz with similar latching time and resistance profile would be the starting point for a cross-reference — but there is no pin-for-pin drop-in replacement documented here.
What range does LX0FG011 belong to?
It is part of the TeSys F range of contactors and accessories.
