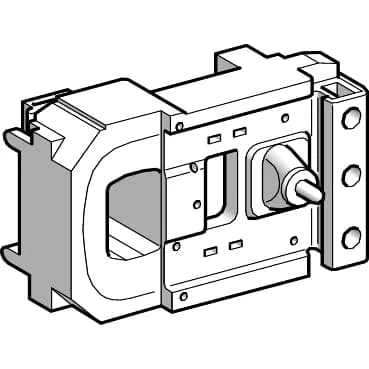

Schneider Electric LX0FJ056 TeSys F Contactor Coil, 110 V DC

MPNLX0FJ056
Active

Schneider Electric TeSys F contactor coil, LX0FJ056, 110 V DC low consumption, 50...100 ms unlatching / 40...75 ms latching.

Schneider Electric LX0FJ056 datasheet (PDF)
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

LX0FJ056 — Identification
ParameterValue
Product typeContactor coil
Product rangeTeSys
Device short nameLX0FJ

Electrical

LX0FJ056 — Electrical
ParameterValue
Control circuit voltage [Uc]110 V DC
Control circuit typeDC low consumption
Control circuit voltage limitsLatching: 0.85...1.1 Uc Unlatching: 0.85...1.1 Uc
Coil resistance (avg.)25.39 Ohm latching at 20 °C 171.49 Ohm unlatching at 20 °C

Performance & Durability

LX0FJ056 — Performance & Durability
ParameterValue
Operating time50...100 ms unlatching 40...75 ms latching
Max. operating rate120 cyc/h 40 °C
Mechanical durability1 Mcycles

Product details

Part identity and control voltage

The LX0FJ056 is a TeSys F contactor coil from Schneider Electric, designed as a DC low-consumption replacement or spare coil for the TeSys F contactor range. It operates on a 110 V DC control circuit, with voltage limits of 0.85...1.1 Uc for both latching and unlatching — meaning the coil holds in reliably down to about 93.5 V DC and up to 121 V DC, per the datasheet tolerance.

Timing and durability

Unlatching time is 50...100 ms; latching time is 40...75 ms. That spread matters for sequencing logic where you need to know the coil will drop out within a 50 ms window after power removal.

Frequently asked questions

What is the control voltage for this coil?

The control circuit voltage is 110 V DC, with permissible limits of 0.85 to 1.1 times Uc for both latching and unlatching operations.

What are the operating times for the LX0FJ056?

Unlatching time is 50 to 100 milliseconds; latching time is 40 to 75 milliseconds.

What is the mechanical durability of this coil?

Mechanical durability is rated at 1 million cycles, with a maximum operating rate of 120 cycles per hour at 40 °C.
