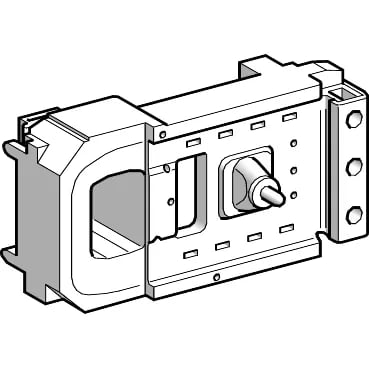

The LX0FL009 is a TeSys F contactor coil from Schneider Electric, designed to switch the main poles of a TeSys F contactor. It operates on a 240 V AC 50/60 Hz control circuit, with a latching time of 50 to 100 ms and an unlatching time of 40 to 80 ms. The coil resistance measures 25.36 ohms in the latching state and 5658 ohms in the unlatching state at 20 °C.
The 240 V AC rating governs the control voltage that must be supplied to the coil terminals — wire it to the correct phase-to-neutral or phase-to-phase voltage for reliable pick-up and drop-out. The operating-time window (50–100 ms latching, 40–80 ms unlatching) is tight enough for standard motor-starting sequences; if your application requires faster switching, this coil may not be the right fit. The mechanical durability of 1 million cycles means the coil itself is rated for that many operations before wear-out — useful for estimating maintenance intervals in high-cycle applications.
This coil is a service part for TeSys F contactors, which are typically DIN-rail mounted inside control panels for switching motor loads, resistive heaters, or other industrial loads. The control voltage limits (0.85 to 1.1 Uc for both latching and unlatching) mean the coil will pick up reliably as long as the supply stays within 204 to 264 V AC — a standard tolerance for 240 V circuits in most industrial environments.
