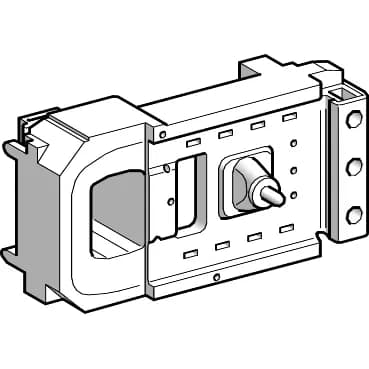

Schneider Electric TeSys F contactor coil, LX0FL056, 110 V DC low consumption, DC control circuit, 50...100 ms unlatching, 40...80 ms latching.
| Parameter | Value |
|---|---|
| Product type | Contactor coil |
| Product range | TeSys |
| Device short name | LX0FL |
| Parameter | Value |
|---|---|
| Control circuit voltage [Uc] | 110 V DC |
| Control circuit type | DC low consumption |
| Control circuit voltage limits | Latching: 0.85...1.1 Uc Unlatching: 0.85...1.1 Uc |
| Coil resistance (avg.) | 19.36 Ohm latching at 20 °C 365.33 Ohm unlatching at 20 °C |
| Parameter | Value |
|---|---|
| Operating time | 50...100 ms unlatching 40...80 ms latching |
| Max. operating rate | 120 cyc/h 40 °C |
| Mechanical durability | 1 Mcycles |
The LX0FL056 is a TeSys F contactor coil for 110 V DC low-consumption control circuits. Operating time is 50 to 100 ms unlatching and 40 to 80 ms latching. Coil resistance at 20 °C is 19.36 ohms latching and 365.33 ohms unlatching.
It belongs to the TeSys range, specifically the TeSys F series of contactors and associated coils.
Operating time is 50 to 100 ms unlatching and 40 to 80 ms latching.
