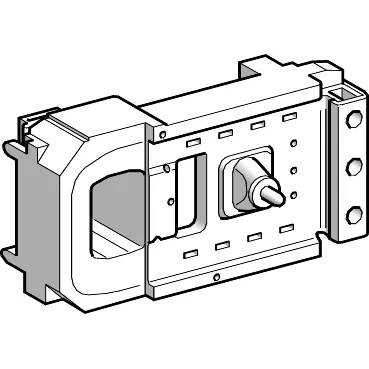

The LX0FL058 is a TeSys F contactor coil, a DC low-consumption replacement coil for TeSys F contactors. It operates on a 220 V DC control circuit, with a latching coil resistance of 74.44 Ohm and an unlatching coil resistance of 1071.43 Ohm at 20 °C. The coil's operating time is 50 to 100 ms for unlatching and 40 to 80 ms for latching, with a maximum operating rate of 120 cycles per hour at 40 °C. Mechanical durability is rated at 1 million cycles.
TeSys LX0FL058 Contactor Coil, 220 V DC Low Consumption, Obs
MPNLX0FL058
Obsolete
TeSys F, contactor coil, LX0FL058, 220 V DC low consumption, 50-100 ms unlatching.
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Contactor coil |
| Product range | TeSys |
| Device short name | LX0FL |
| Parameter | Value |
|---|---|
| Control circuit voltage [Uc] | 220 V DC |
| Control circuit type | DC low consumption |
| Control circuit voltage limits | Latching: 0.85...1.1 Uc Unlatching: 0.85...1.1 Uc |
| Coil resistance (avg.) | 74.44 Ohm latching at 20 °C 1071.43 Ohm unlatching at 20 °C |
| Parameter | Value |
|---|---|
| Operating time | 50...100 ms unlatching 40...80 ms latching |
| Max. operating rate | 120 cyc/h 40 °C |
| Mechanical durability | 1 Mcycles |
Product details
Frequently asked questions
What is LX0FL058's listed range on this component line?
It belongs to the TeSys range, specifically the TeSys F series of contactor coils.
What is LX0FL058's listed operating time?
The unlatching operating time is 50 to 100 ms, and the latching operating time is 40 to 80 ms.
