Active production — what it means for your BOM line
For a panel builder or MRO planner, that means the LX1D4U6 is a standard-stock item through distribution, not a surplus-hunt part. Lead time and volume pricing are confirmed at RFQ against your quantity.
Coil voltage — 240 V AC 60 Hz, the one spec that decides fit
The LX1D4 base designation means it mates with the standard TeSys D contactor range — the coil sits on the contactor magnet assembly and is held by the same clip. No adapter or bracket needed.
Where this coil fits in the panel

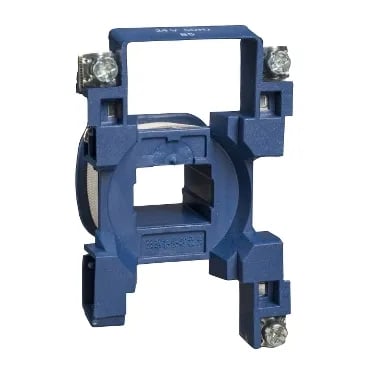

The LX1D4U6 is a replacement or spare coil for TeSys D contactors — the same coil body that snaps onto the contactor yoke across the D-range (from the smallest D09 up through D38 frames). The coil terminals are standard fast-on tabs; the control wiring lands with 6.35 mm female disconnects.
