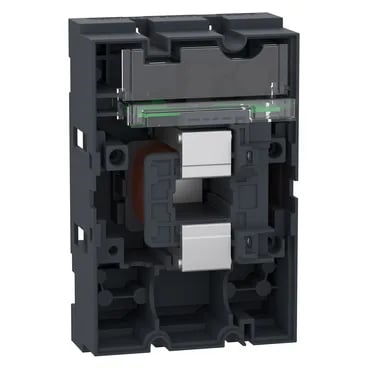

Schneider Electric TeSys Deca control module, LX1D83EHE, wide-range AC/DC coil 48-130V, for LC1D115A-150A/3P contactors.
| Parameter | Value |
|---|---|
| Product type | Contactor coil |
| Product range | TeSys Deca |
| Coil type | Wide range |
| Parameter | Value |
|---|---|
| Control circuit voltage [Uc] | 48...130 V AC/DC |
| Control circuit type | AC/DC |
| Control circuit voltage limits | 0.8 Uc Min...1.1 Uc Max (at <60 °C) |
| Parameter | Value |
|---|---|
| Inrush power (VA) | 170 VA (at 20 °C) |
| Inrush power (W) | 120 W (at 20 °C) |
| Hold-in power (VA) | 7.5 VA (at 20 °C) |
| Hold-in power (W) | 5.1 W at 20 °C |
| Heat dissipation | 1.5 W |
| Parameter | Value |
|---|---|
| Mechanical durability | 8 Mcycles |
| Parameter | Value |
|---|---|
| Compatible poles | 3P |
Inrush power is 120 W / 170 VA at 20 °C, dropping to a hold-in consumption of 5.1 W / 7.5 VA — the wide-range design trades a slightly higher inrush for stable pick-up across the voltage band. Heat dissipation at 1.5 W is modest; no special ventilation required inside a standard IP54 enclosure. The control circuit accepts AC or DC (no polarity sensitivity), with voltage limits of 0.8...1.1 Uc below 60 °C ambient.
It is the control module for TeSys Deca LC1D115A, LC1D150A, and the corresponding three-pole frames (LC1D115A...150A/3P).
48...130 V AC/DC, with operating limits of 0.8 to 1.1 times nominal voltage at ambient temperatures below 60 °C.
