The LX1D83KUE is the wide-range control coil module from the TeSys Deca Advanced range, built to drive LC1D115A through LC1D150A three-pole contactors. It accepts 100...250 V AC/DC directly — no tap selection, no DC rectifier needed — which simplifies BOM variety when the panel runs mixed supplies. Inrush hits 105 W (170 VA) at 20 °C on pickup; holding power drops to 4.5 W (8 VA), so the thermal load on the enclosure stays low once the contactor is sealed. Mechanical durability is rated 8 Mcycles, which aligns with the contactor's own life curve for high-cycle conveyor or pump stations.

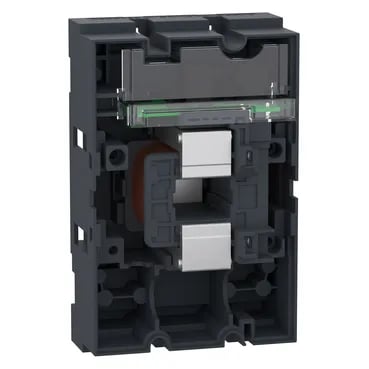

Schneider LX1D83KUE Contactor Coil, TeSys Deca, 100-250V AC/
MPNLX1D83KUE
Active
Schneider TeSys Deca Advanced control module, LX1D83KUE, wide-range 100-250 V AC/DC coil for LC1D115A-150A/3P contactors, active production.
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Contactor coil |
| Product range | TeSys Deca |
| Coil type | Wide range |
| Parameter | Value |
|---|---|
| Control circuit voltage [Uc] | 100...250 V AC/DC |
| Control circuit type | AC/DC |
| Control circuit voltage limits | 0.8 Uc Min...1.1 Uc Max (at <60 °C) |
| Parameter | Value |
|---|---|
| Inrush power (VA) | 170 VA (at 20 °C) |
| Inrush power (W) | 105 W (at 20 °C) |
| Hold-in power (VA) | 8 VA (at 20 °C) |
| Hold-in power (W) | 4.5 W at 20 °C |
| Heat dissipation | 1.1 W |
| Parameter | Value |
|---|---|
| Mechanical durability | 8 Mcycles |
| Parameter | Value |
|---|---|
| Compatible poles | 3P |
Product details
Frequently asked questions
What is the control voltage range for this coil module?
The LX1D83KUE accepts 100...250 V AC/DC. The operating voltage limits are 0.8 times minimum to 1.1 times maximum of Uc at temperatures below 60 °C.
Which contactors does the LX1D83KUE fit?
It is designed for the TeSys Deca Advanced range, specifically for LC1D115A through LC1D150A three-pole contactors.
What are the power consumption figures for this coil?
Inrush power is 105 W (170 VA) at 20 °C. Holding power drops to 4.5 W (8 VA) at 20 °C. Heat dissipation during continuous operation is 1.1 W.
