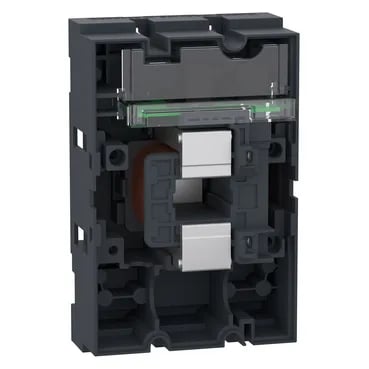

Schneider LX1D83LSE TeSys Deca Contactor Coil, 200-500V AC/D

MPN LX1D83LSE
Active

Schneider Electric TeSys Deca Advanced control module, LX1D83LSE, wide-range 200-500V AC/DC coil for LC1D115A-150A/3P contactors, 3 W heat dissipation, 8 Mcycles mechanical durability.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

LX1D83LSE specifications
ParameterValue
Coil typeWide range
Control circuit typeAC/DC
Main product or component typeContactor coil
Coil voltage200...500 V AC/DC
Mechanical life cycles8 Mcycles

Product details

What this coil is and what it mates to

The LX1D83LSE is a control module (contactor coil) from the TeSys Deca Advanced line, designed specifically to drive the LC1D115A through LC1D150A three-pole contactors. It is not a standalone contactor — it is the replaceable coil assembly that snaps onto the contactor base. If you are sourcing this for a panel with an LC1D115A or LC1D150A that has a failed coil, this is the direct fit.

Coil voltage — the wide-range advantage

Rated for 200...500 V AC/DC, this is a wide-range coil that accepts both AC and DC control voltages across a broad band. That means one part number covers 240 V, 277 V, 400 V, and 480 V control circuits without swapping coils. The hold-in power consumption sits at 5.1 W (16.5 VA) at 20 °C — modest enough that a standard PLC relay output can drive it, but the inrush is 120 W (170 VA) at 20 °C, so verify your control transformer is sized for the pull-in surge if multiple coils pick simultaneously.

Mechanical durability and thermal load

Rated for 8 million mechanical cycles, this coil is built for high-cycling applications like conveyor lines or pump sequencing where the contactor opens and closes frequently. The steady-state heat dissipation is 3 W — negligible in a ventilated enclosure, but if the coil is in a sealed panel with other heat sources, the 5.1 W hold-in power adds up. The control circuit voltage limits are 0.8 to 1.1 times Uc at temperatures below 60 °C, so a 200 V minimum control supply at the low end of the range means the coil drops out cleanly below 160 V — no partial-pickup chatter.

MPN
LX1D83LSE
