The LX1D84BNE is a wide-range control coil from the TeSys Deca series, designed as a replacement or spare coil for the LC1DT200A 4-pole contactor. It accepts a 24...60 V AC/DC control circuit, meaning the same coil handles both AC and DC supplies across that band — useful when a panel has mixed control voltages and you want one spare part for both. Coil inrush hits 136 W (170 VA) at 20 °C, then settles to a 5.1 W (7.5 VA) hold-in draw. The 2.2 W continuous heat dissipation is low enough that thermal buildup in a crowded DIN-rail enclosure stays manageable — no forced cooling needed for this coil alone. Rated for 8 million mechanical cycles, so it outlasts most contactor bodies in cyclic service — conveyor indexing or compressor cycling applications won't wear this coil out before the main poles need inspection.

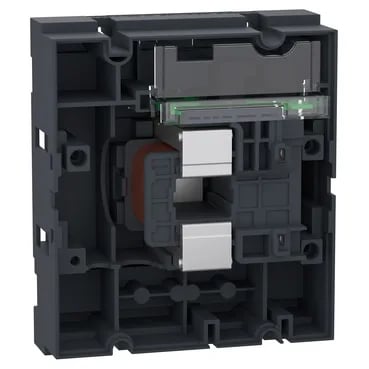

Schneider LX1D84BNE TeSys Deca Contactor Coil, 24-60 V AC/DC
MPNLX1D84BNE
Active
Schneider Electric TeSys Deca LX1D84BNE wide-range contactor coil, 24-60 V AC/DC, 136 W inrush, 2.2 W dissipation, for 4-pole LC1DT200A.
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
Identification
| Parameter | Value |
|---|---|
| Product type | Contactor coil |
| Product range | TeSys Deca |
| Coil type | Wide range |
Electrical
| Parameter | Value |
|---|---|
| Control circuit voltage [Uc] | 24...60 V AC/DC |
| Control circuit type | AC/DC |
| Control circuit voltage limits | 0.8 Uc Min...1.1 Uc Max (at <60 °C) |
Power & Thermal
| Parameter | Value |
|---|---|
| Inrush power (VA) | 170 VA (at 20 °C) |
| Inrush power (W) | 136 W (at 20 °C) |
| Hold-in power (VA) | 7.5 VA (at 20 °C) |
| Hold-in power (W) | 5.1 W at 20 °C |
| Heat dissipation | 2.2 W |
Performance & Durability
| Parameter | Value |
|---|---|
| Mechanical durability | 8 Mcycles |
Mechanical
| Parameter | Value |
|---|---|
| Compatible poles | 4P |
Product details
Frequently asked questions
What contactor does the LX1D84BNE fit?
It is the control coil for the TeSys Deca LC1DT200A 4-pole contactor. The wide-range 24...60 V AC/DC coil replaces the standard-voltage coil in that frame.
What are the key electrical ratings of the LX1D84BNE?
Control voltage 24...60 V AC/DC, inrush power 136 W (170 VA) at 20 °C, hold-in power 5.1 W (7.5 VA), continuous heat dissipation 2.2 W. Mechanical durability is 8 million cycles.
