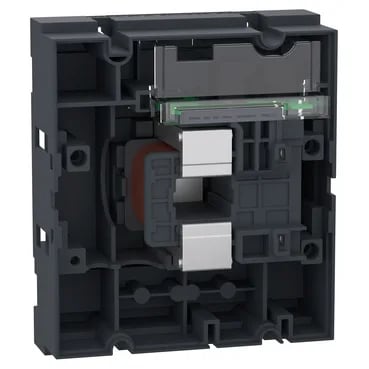

Schneider Electric LX1D84KUE

Schneider LX1D84KUE TeSys Deca Contactor Coil, 100-250V AC/D

MPN LX1D84KUE
Active

Schneider Electric TeSys Deca Advanced control module, LX1D84KUE, wide-range 100-250V AC/DC coil for LC1DT200A 4-pole contactor.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

LX1D84KUE specifications
ParameterValue
Coil typeWide range
Control circuit typeAC/DC
Main product or component typeContactor coil
Coil voltage100...250 V AC/DC
Mechanical life cycles8 Mcycles

Product details

The LX1D84KUE is a control coil module from the TeSys Deca Advanced line, built to drive the LC1DT200A 4-pole contactor. It's the wide-range version, meaning one coil covers 100-250 V AC/DC without swapping out the magnet assembly. That's a real time-saver on the panel bench when you're wiring up a batch of starters and the control voltage varies between machines. Rated for 4-pole compatibility, this module snaps onto the contactor body and handles the pull-in and hold-in duties. Inrush hits 105 W (170 VA) at 20 °C to pull the armature closed, then settles to 4.5 W (8 VA) holding — a 23:1 ratio that keeps the coil cool in a sealed enclosure.

The 1.1 W heat dissipation is the steady-state thermal load this coil dumps into the panel. Control voltage tolerance is 0.8 to 1.1 times Uc at under 60 °C. So on a 120 V line, it holds in from 96 V to 132 V; on 240 V, from 192 V to 264 V. That's a solid margin for brownout conditions or long cable runs where voltage drop is a concern. Dropout happens below the 0.8 Uc threshold, which is typical for wide-range AC/DC coils. Mechanical durability is rated at 8 million cycles. That's a long service life for a contactor coil — you'd wear out the main contacts long before this coil gives up in normal motor-starting duty. It's the kind of number that tells you this module is built for the route, not for a bench test.

MPN
LX1D84KUE
