The LX1FG475 is a replacement coil for Schneider Electric TeSys F series contactors, rated 600VAC and designed to fit the LC1F225 through LC1F185 frame sizes. It is the energizing element that pulls the contactor armature in; if the coil fails, the contactor drops out and the load circuit opens.

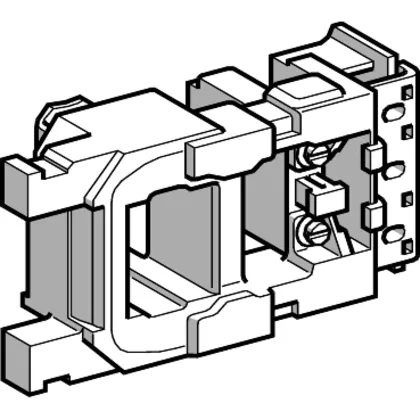

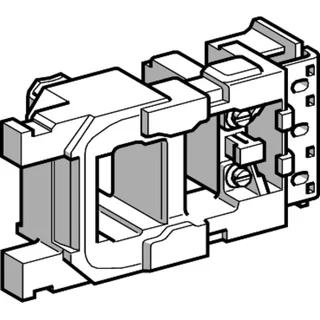

Schneider Electric LX1FG475 Contactor Coil, 600VAC, TeSys F
MPNLX1FG475
Schneider Electric TeSys F contactor coil, LX1FG475, 600VAC, for LC1F225–LC1F185 contactors, 0.45 kg.
$77.47Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 0.45 kgs |
Product details
Frequently asked questions
Who supplies LX1FG475 and how is it quoted for volume purchases?
The LX1FG475 is sourced to order against an RFQ through independent distribution. Current pricing and lead time are confirmed at quote time — submit an RFQ for your volume needs.
What is the closest pin-compatible alternative to LX1FG475 in this component family?
Within the TeSys F family, the LX1FG475 is the 600VAC coil variant for LC1F225–LC1F185 contactors. There is no pin-compatible alternative with a different voltage rating — the coil voltage must match the control circuit. If you need a different coil voltage, select the corresponding TeSys F coil for that voltage range.
What compliance documentation does this brand provide for LX1FG475 (RoHS, REACH, UL, IEC)?
Schneider Electric typically provides RoHS, REACH, and UL/CSA/CE declarations for TeSys components. Request the specific compliance documentation for LX1FG475 at quote time.
MPN
LX1FG475
