Schneider Electric LX1G4QBEEA

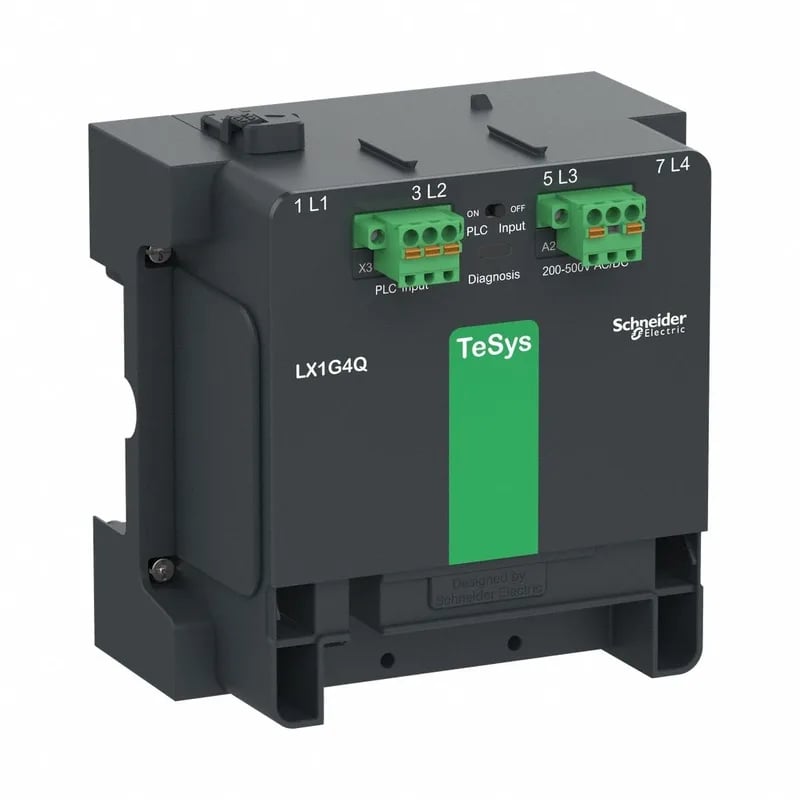

Schneider LX1G4QBEEA TeSys Contactor Coil, 24-48V AC/DC

MPNLX1G4QBEEA
Active

Schneider TeSys contactor coil LX1G4QBEEA, 4-pole, 24...48 V AC/DC 50/60 Hz, 3.7 x 5.5 x 5.7 in.

$421.28 – $515.00Ref. price · indicative, final on quote
Schneider Electric LX1G4QBEEA datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LX1G4QBEEA key specifications
ParameterValue
Product or component typeContactor coil
Coil voltage24...48 V AC/DC 50/60 Hz
Control circuit voltage limitsOperational 0.8...1.1 Uc 140 °F (60 °C)) Drop-out 0...0.45 Uc 140 °F (60 °C))
Inrush power in330 VA 48 V AC, 50 Hz
Hold-in power consumption in6.2 VA 48 V AC, 50 Hz
Poles description4P
IP degree of protectionIP20 IEC 60529
Connections - terminalsControl circuit push-in termination 1 0.0003...0.004 in² (0.2...2.5 mm²) solid stranded without cable end sleeve AWG 26...AWG 12 Control circuit push-in termination 1 0.0004...0.004 in² (0.25...2.5 mm²) flexible with cable end sleeve AWG 24...AWG 14 Control circuit push-in termination 2 0.0008...0.002 in² (0.5...1.0 mm²) rigid or stranded with cable end sleeve AWG 20...AWG 18
Pollution degree3 IEC 60947-1
Operating altitude9842.52 ft (3000 m) without derating 5000 m with derating factor
Depth3.7 in (94.0 mm)
Width5.5 in (140.7 mm)

All specifications

LX1G4QBEEA additional specifications
ParameterValue
Height5.7 in (144.5 mm)
Mechanical durability5 Mcycles
StandardsEN/IEC 60947-4-1 UL 60947-4-1A CSA C22.2 No 60947-4-1
RangeTeSys
CategoryUS10I1222328
Operating time20...35 ms opening 40...55 ms closing
Coil technologyBuilt-in bidirectional peak limiting
Quantity per set1
Device short nameLX1G
Maximum operating rate600 cyc/mn 140 °F (60 °C)
Electromagnetic compatibilityEMC immunity conforming to IEC 60947-4-1 Emission tests criteria A conforming to IEC 60947-4-1 Immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 Voltage dips and interruptions immunity test conforming to SEMI F47
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-13...140 °F (-25...60 °C)
Permissible ambient air temperature around the device-40...158 °F (-40...70 °C) at Uc

Product details

Contactor coil for TeSys frames

The LX1G4QBEEA is a replacement coil from Schneider's TeSys range, designed for 4-pole contactors. Control circuit voltage spans 24…48 V AC/DC, 50/60 Hz, with built-in bidirectional peak limiting that suppresses the back-EMF spike on de-energization — no external flyback diode needed. Dimensions are 3.7 in deep (94.0 mm) by 5.5 in wide (140.7 mm) by 5.7 in high (144.5 mm), matching the mounting footprint of compatible TeSys contactor frames.

Electrical and mechanical characteristics

Inrush power is 205 W DC or 330 VA at 48 V AC, while hold-in consumption drops to 3.6 W DC or 6.2 VA at 48 V AC — a typical ratio for TeSys coils. Opening time ranges 20…35 ms, closing 40…55 ms, and the coil is rated for 5 million mechanical cycles. Control circuit limits: pick-up is guaranteed between 0.8 and 1.1 Uc, drop-out between 0 and 0.45 Uc. IP20 protects against finger contact during panel installation. Ambient temperature range for operation is -13…140 °F (-25…60 °C); storage tolerance is wider at -76…176 °F (-60…80 °C). The coil is certified to EN/IEC 60947-4-1, UL 60947-4-1A, and CSA C22.2 No 60947-4-1.

Frequently asked questions

What are the key specifications of this coil?

Control voltage 24…48 V AC/DC, 4-pole, dimensions 3.7 x 5.5 x 5.7 in, IP20, built-in peak limiting, 5 Mcycles mechanical durability.

What compliance standards does this coil meet?

It meets EN/IEC 60947-4-1, UL 60947-4-1A, and CSA C22.2 No 60947-4-1.

MPN
LX1G4QBEEA
