Schneider LX4D6DW TeSys contactor coil, 96 V DC, active prod

MPN LX4D6DW
Obsolete

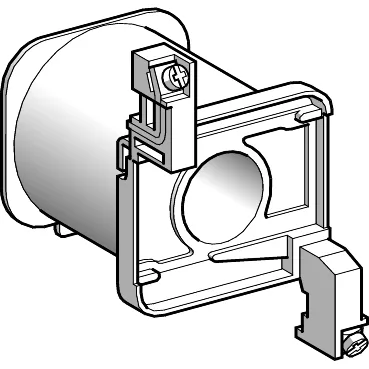

Schneider Electric TeSys LX4D6DW, contactor coil for LX1D6 series, 96 V DC, without built-in suppressor module.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

LX4D6DW specifications
ParameterValue
Main product or component typeContactor coil
Coil voltage96 V DC
Temp operating max60 °C
Temp operating min-5 °C
Mechanical life cycles10 Mcycles
Operating temperature23...140 °F (-5...60 °C)

Product details

Coil for the line — LX4D6DW keeps the contactor cycling

The Schneider Electric TeSys LX4D6DW is a replacement contactor coil for the LX1D6 series, rated at 96 V DC control voltage. No built-in suppressor module, so you add your own flyback diode or RC snubber at the PLC output card — standard practice for DC coils to protect the driver transistor. The 51.9 Ohm resistance at 20 °C and 4.18 H closed-circuit inductance define the inrush and hold current; your 96 V DC supply needs to deliver roughly 1.85 A peak during pickup, then settle to about 23 mA hold.

Rated for high-cycle lines — 10 Mcycles mechanical

That's one cycle per second sustained — fine for high-speed pick-and-place or packaging lines where the contactor sees continuous duty. The ambient temperature range of -5 to 60 °C covers most ventilated panel environments, but if your enclosure sits near ovens or in direct sun, verify the coil temperature rise against your actual duty cycle.
