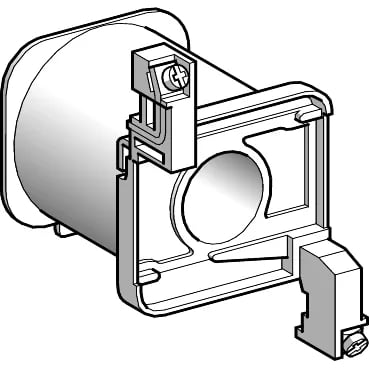

Schneider LX4D6VD TeSys contactor coil, 348 V DC

MPNLX4D6VD
Active

Schneider Electric TeSys D contactor replacement coil, 348 V DC, 51.9 Ohm, 10 Mcycles mechanical durability, active production.

StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

LX4D6VD — Identification
ParameterValue
Product typeContactor coil
Product rangeTeSys
Device short nameLX1D6
Coil technologyWithout built-in suppressor module

Electrical

LX4D6VD — Electrical
ParameterValue
Control circuit voltage [Uc]348 V DC
Coil resistance (avg.)51.9 Ohm 68 °F (20 °C)
Coil inductance (closed circuit)4.18 H

Performance & Durability

LX4D6VD — Performance & Durability
ParameterValue
Max. operating rate3600 cyc/h 140 °F (60 °C)
Mechanical durability10 Mcycles

Environmental

LX4D6VD — Environmental
ParameterValue
Operating temperature23...140 °F (-5...60 °C)

Product details

The LX4D6VD is a replacement coil for the TeSys D contactor line, specifically the LX1D6 device short name. It's the part you swap when the original coil burns out or you're converting a contactor to a different control voltage. The coil is rated for 348 V DC control circuits, with a measured resistance of 51.9 Ohm at 68 °F (20 °C). This coil has no built-in suppressor module, so you'll need to add an external flyback diode or RC snubber across the coil terminals if your application requires it — standard practice for DC coils driving inductive loads.

The coil's inductance when closed is 4.18 H, which governs the inrush current profile and the suppression you'll need. Ambient operating temperature range is 23 to 140 °F (-5 to 60 °C), so it's fine for most indoor panel environments but not for direct exposure to ovens or outdoor cabinets in direct sun without derating.

Frequently asked questions

What is the closest pin-compatible alternative to the LX4D6VD in the TeSys family?

Within the TeSys D range, the LX4D6VD is the specific 348 V DC coil variant for the LX1D6 contactor. There is no direct pin-compatible alternative at a different voltage — you would need to match the contactor frame and coil voltage exactly. For a different control voltage, select the corresponding coil order code from the TeSys D coil family.

Does the LX4D6VD have a built-in coil suppression module?

No, this coil is supplied without a built-in suppressor module. You must add an external suppression circuit (e.g., a free-wheeling diode for DC or an RC snubber for AC) if your application requires it to protect the control circuit from voltage spikes.
