Schneider Electric LXD1D7
MPNLXD1D7
Obsolete

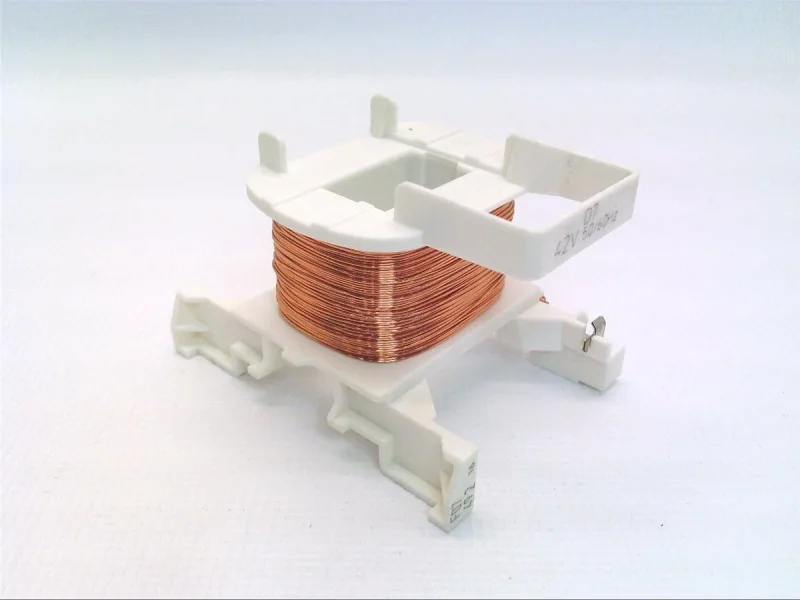

TeSys D - contactor coil - LXD1 - 42 V AC 50/60 Hz for 9... 38 A contactor
$20.79Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Contactor coil |
| Product range / family | TeSys |
| Parameter | Value |
|---|---|
| Mechanical durability (cycles) | 15 Mcycles |
| Parameter | Value |
|---|---|
| Operating ambient temperature | 23...140 °F (-5...60 °C) |
| Parameter | Value |
|---|---|
| Device short name | LXD1 |
| Parameter | Value |
|---|---|
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 2...3 W 50/60 Hz |
| Average resistance | 17 Ohm 68 °F (20 °C) |
| Inrush power in | 70 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)) 70 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C)) |
| Control circuit type | AC 50/60 Hz |
| Maximum operating rate | 3600 cyc/h 140 °F (60 °C) |
| Inductance of closed circuit | 0.67 H |
| Coil voltage | 42 V AC 50/60 Hz |
| Control circuit voltage limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at Operational: 0.8...1.1 Uc at 50 Hz (at Operational: 0.85...1.1 Uc at 60 Hz (at <140 °F (60 °C)) |
| Hold-in power consumption in | 7.5 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) 7 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) |
MPN
LXD1D7
