Analog expansion for EasyLogic systems

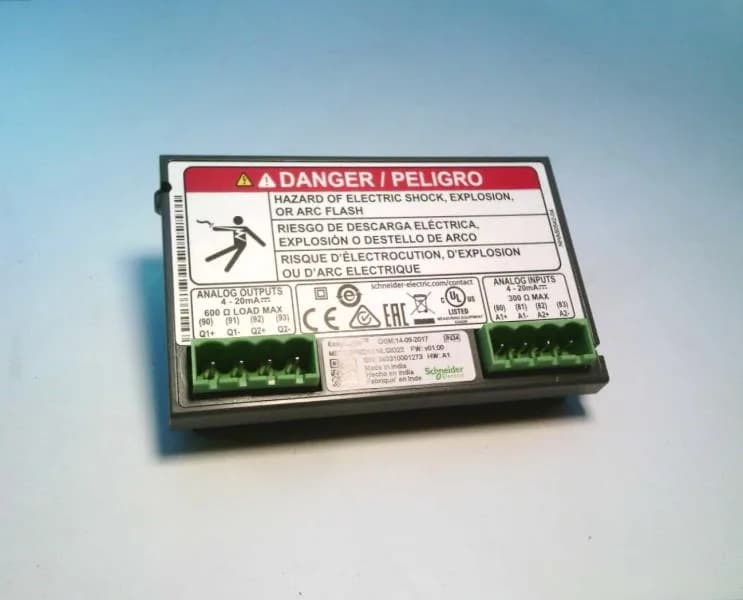

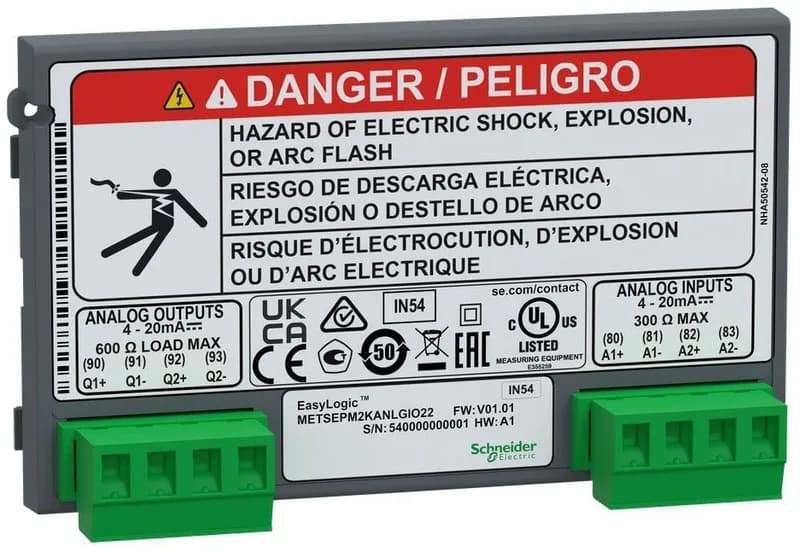

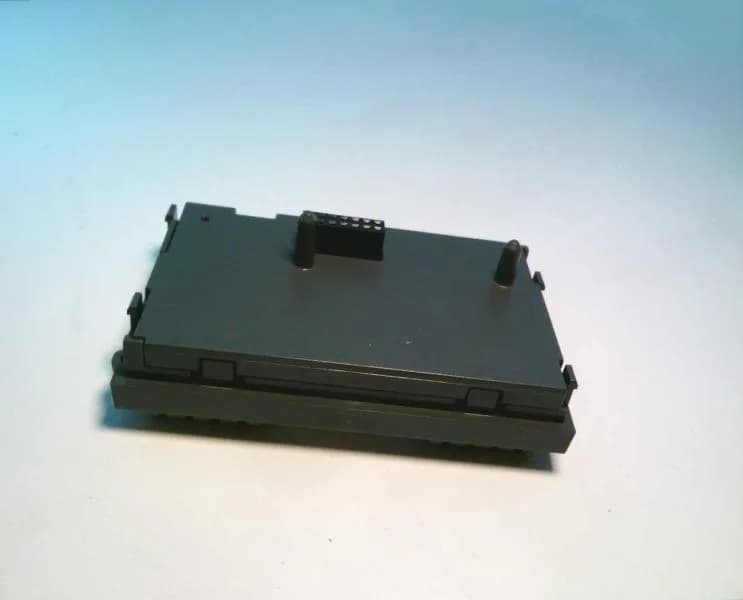

The Schneider Electric METSEPM2KANLGIO22 is an analog expansion module within the EasyLogic range, providing two 4-20 mA analog inputs and two 4-20 mA analog outputs. The module operates on a 12-30 V AC supply and provides a 12 V AC output loop drive for the analog outputs. Input impedance is specified at ≤300 Ohms; the analog output is rated for a 600 Ohm load loop. Rated insulation voltage is 2500 V, providing isolation between the module and the backplane. Ambient operating temperature range is 14 to 140 °F (-10 to 60 °C); storage range is -13 to 158 °F (-25 to 70 °C). Physical dimensions: width 3.6 in (90.5 mm), height 2.09 in (53 mm), depth 0.6 in (14.6 mm).
