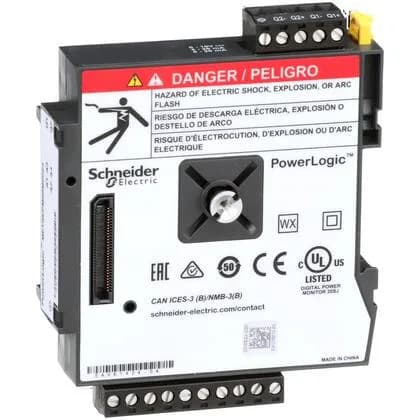

Schneider Electric PowerLogic METSEPM89M0024 Analog I/O Module, 4 analog inputs, 2 analog outputs, IP30, 3.6 x 0.9 x 3.6 in.
| Parameter | Value |
|---|---|
| Product or component type | I/O module |
| I/O channels | 4 analog 0...20 mA/4...20 mA 0...30 V |
| IP degree of protection | IP30 conforming to IEC 60529 |
| Depth | 3.6 in (90.5 mm) |
| Width | 0.9 in (22 mm) |
| Height | 3.6 in (90.5 mm) |
| Range | PowerLogic |
| Category | US10PL109782 |
| Device application | Optional expansion module |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
The METSEPM89M0024: Inputs accept 0-20 mA or 4-20 mA current loops, or 0-30 V voltage signals — configurable per channel. Outputs can be set for 0-20 mA, 4-20 mA, or 0-10 V. Rated IP30 per IEC 60529, so it stays in a clean indoor panel.
Overall dimensions 3.6 x 0.9 x 3.6 in (H x W x D).
No cross-reference or replacement required for this active line.
The listed depth is 3.6 in (90.5 mm).
It is part of the PowerLogic range.
