Schneider Electric NJJF36150TW
MPNNJJF36150TW
Active

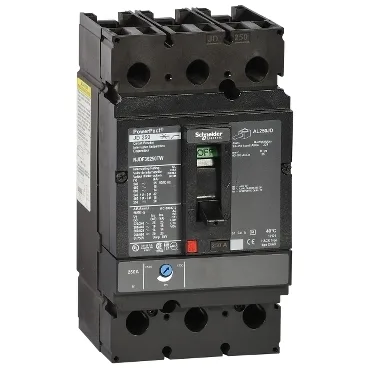

PowerPacT multistandard - J-Frame - 150 A - 100 KA - Therm-Mag trip unit
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Circuit breaker |
| Product name | J-Frame |
| Range of product | PowerPact multistandard |
| Product range | PowerPact |
| Device application | Distribution |
| Parameter | Value |
|---|---|
| Rated current [In] | 150 A 104 °F (40 °C) |
| Rated operational voltage [Ue] | 525 V AC 50/60 Hz IEC 60947-2 690 V AC 50/60 Hz IEC 947-2 600 V AC 50/60 Hz UL 489 |
| Rated insulation voltage [Ui] | 750 V AC 50/60 Hz IEC 60947-2 |
| Rated impulse withstand voltage [Uimp] | 8 kV IEC 60947-2 |
| Poles description | 3P |
| Parameter | Value |
|---|---|
| Breaking capacity | Icu 100 kA 220/240 V - AC IEC 947-2 Icu 65 kA 380/415 V - AC IEC 947-2 Icu 65 kA 440/480 V - AC IEC 947-2 Icu 25 kA 500/525 V - AC IEC 947-2 100 kA 240 V - AC UL 489 65 kA 480 V - AC UL 489 25 kA 600 V - AC UL 489 |
| Rated service breaking capacity [Ics] | Ics 100 kA 220/240 V - AC IEC 947-2 Ics 65 kA 380/415 V - AC IEC 947-2 Ics 65 kA 440/480 V - AC IEC 947-2 Ics 25 kA 500/525 V - AC IEC 947-2 |
| Breaking capacity code | JJ |
| Trip unit technology | Thermal-magnetic |
| Trip unit rating | 150 A |
| Trip unit name | TM |
| Suitability for isolation | Yes |
| Utilisation category | Category A |
| Mechanical durability | 5000 cycles |
| Electrical durability | 1000 cycles |
| Local signalling | ON/OFF indication |
| Contact position indicator | Yes |
| Parameter | Value |
|---|---|
| Connection pitch | 1.8 in (45 mm) |
| Device short name | J-Frame |
| Control type | Toggle |
| Mounting mode | Unit mount |
| Mounting support | Flush DIN rail Backplate |
| Width | 4.09 in (104 mm) |
| Height | 7.5 in (191 mm) |
| Depth | 3.4 in (86 mm) |
| Parameter | Value |
|---|---|
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Pollution degree | 3 IEC 60947-1 3 IEC 60664-1 |
| Operating ambient air temperature | 104 °F (40 °C) |
| Storage ambient air temperature | -58...185 °F (-50...85 °C) |
| Parameter | Value |
|---|---|
| Standards | NMX J-266 NEMA AB1 W-C-375B/GEN CSA C22.2 No 5 UL 489 IEC 60947-2 |
