Schneider Electric SDN3000123
MPNSDN3000123

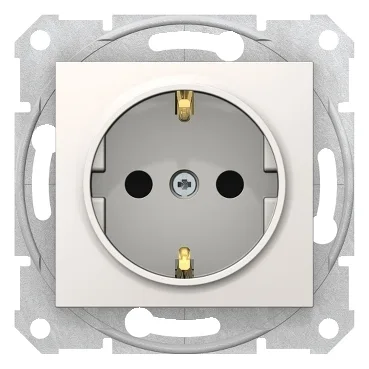

Sedna - single socket outlet, side earth - 16A shutters, without frame cream
$5.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Rated current | 16 A at 250 V AC |
| Parameter | Value |
|---|---|
| Product range / series | Sedna |
| Delivery form | Without frame |
| Parameter | Value |
|---|---|
| Function | Socket-outlet |
| IP protection rating | IP20 |
| Compliance standards | IEC 60884-1 |
| Parameter | Value |
|---|---|
| Terminal connection type | Lift terminals |
| Terminal wire capacity | 2 cable(s) 2.5 mm² |
| Wire structure | Flexible, Rigid |
| Wire stripping length | 13 mm |
| Parameter | Value |
|---|---|
| Width | 71 mm |
| Height | 71 mm |
| Depth | 41.3 mm |
| Mounting / fixing mode | Claws, span of claws working range: 52...69 mm, Screws |
| Weight | 0.07 Kg |
| Visible parts material | ASA + PC |
| Visible part depth | 10 mm |
| Surface finish | Glossy |
MPN
SDN3000123
