Schneider Electric SDN3000160
MPNSDN3000160

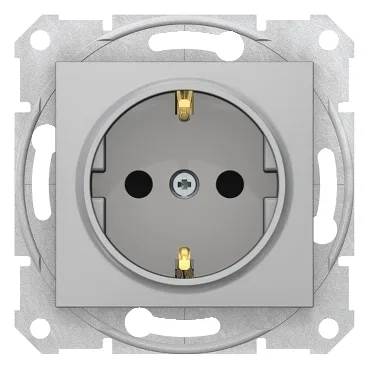

Sedna - single socket outlet, side earth - 16A shutters, without frame aluminium
$5.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Current | 16 A at 250 V AC |
| Power range | 3680 W |
| Outlet poles configuration | 2P + E with shutters |
| IP degree of protection | IP20 |
| Wire structure | Rigid, Flexible |
| Kind of terminals | Lift terminals |
| Wire AWG | 2 cable(s) 2.5 mm² |
| Wire stripping length | 13 mm |
| Depth | 41.3 mm |
| Width | 71 mm |
| Height | 71 mm |
| Weight | 0.07 Kg |
All specifications
| Parameter | Value |
|---|---|
| Shipping weight | 1.0 Kg |
| Depth of visual part | 10 mm |
| Material of visible parts | PC |
| Standards | IEC 60884-1 |
| Outlet standard | Poland |
| Outlet standard description | Side earth |
| Function | Socket-outlet |
| Range name | Sedna |
| Fixing mode | Claws, span of claws working range: 52...69 mm, Screws |
| Manufacturer | Schneider Electric |
| Delivery form | Without frame |
| Surface finish | Glossy |
| Estimated lead time | 4 - 6 Weeks |
MPN
SDN3000160
