Schneider Electric SR2B201FU

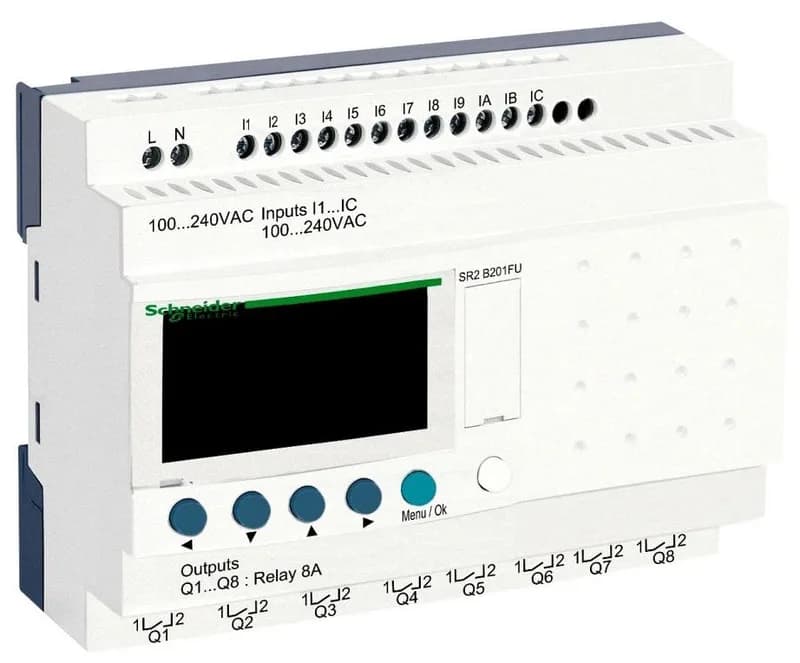

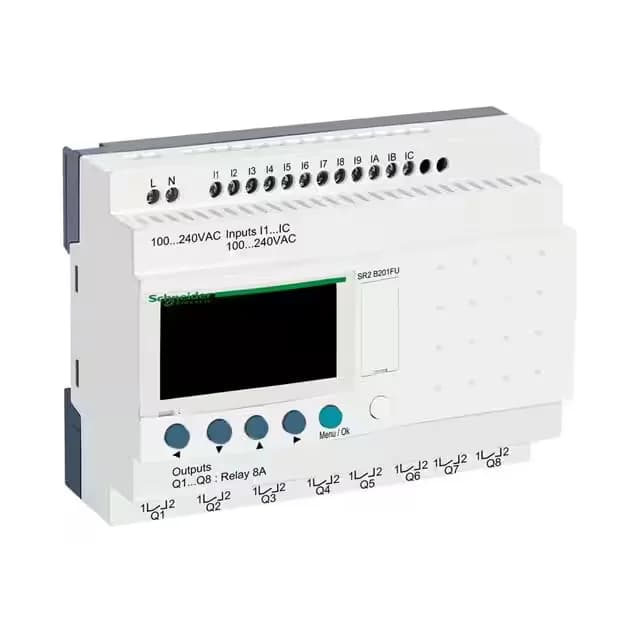

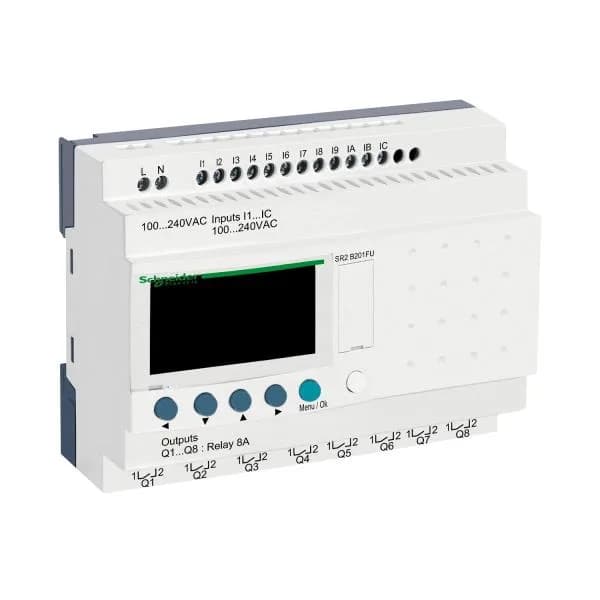

Schneider SR2B201FU Zelio Logic Smart Relay, Real-Time Clock

MPNSR2B201FU
Active

Schneider SR2B201FU, Zelio Logic compact smart relay, 100-240 V AC supply, 12 discrete inputs, real-time clock, screw terminals, IP40 front panel.

$113.03Ref. price · indicative, final on quote
Schneider Electric SR2B201FU datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

SR2B201FU key specifications
ParameterValue
Protection typeAgainst inversion of terminals (control instructions not executed)
Range of productZelio Logic
Product or component typeCompact smart relay
Isolation voltage1780 V
Supply voltage limits85...264 V
Discrete input voltage100...240 V AC
Supply voltage100...240 V AC
Voltage state 0 guaranteed= 0.17 mA discrete input)
Voltage state 1 guaranteed>= 79 V discrete input
[Uimp] rated impulse withstand voltage4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Discrete input current0.6 mA
Maximum supply current100 mA 100 V without extension) 50 mA 240 V without extension)

All specifications

SR2B201FU additional specifications
ParameterValue
Current state 0 guaranteed= 10 mA 12 V relay output)
Power consumption in11 VA without extension
Supply frequency50/60 Hz
Operating rate in0.1 Hz at Ie)relay output 10 Hz no load)relay output
Discrete input frequency57...63 Hz 47...53 Hz
IP degree of protectionIP20 IEC 60529 terminal block) IP40 IEC 60529 front panel)
Connections - terminalsScrew terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid Screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid Screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Response time50 ms ladder from state 0 to state 1)discrete input 50 ms ladder from state 1 to state 0)discrete input 50...255 ms FBD from state 0 to state 1)discrete input 50...255 ms FBD from state 1 to state 0)discrete input 10 ms from state 0 to state 1)relay output 5 ms from state 1 to state 0)relay output
Pollution degree2 IEC 61131-2
Relative humidity95 % without condensation or dripping water
Operating altitude6561.68 ft (2000 m)
Maximum altitude transport10000 ft (3048 m)
Mechanical durability10000000 cycles relay output
StandardsIEC 61000-4-6 level 3 IEC 61000-4-11 IEC 60068-2-27 Ea IEC 61000-4-5 IEC 60068-2-6 Fc IEC 61000-4-12 IEC 61000-4-2 level 3 IEC 61000-4-3 IEC 61000-4-4 level 3
ClockWith
ChecksProgram memory on each power up
CategoryUS1000I22378
Cycle time6...90 ms
Backup time10 years 77 °F (25 °C)
Clock drift12 min/year 32...131 °F (0...55 °C) 6 s/month 77 °F (25 °C)
Local displayWith
Tightening torque4.4 lbf.in (0.5 N.m)
Overvoltage categoryIII conforming to IEC 60664-1
Discrete input number12
Immunity to microbreaks1 ms
Environmental characteristicEMC directive conforming to IEC 61000-6-2 EMC directive conforming to IEC 61000-6-3 EMC directive conforming to IEC 61000-6-4 EMC directive conforming to IEC 61131-2 zone B Low voltage directive conforming to IEC 61131-2
Disturbance radiated (conducted)Class B EN 55022-11 group 1
Number or control scheme lines0...240 ladder 0...500 FBD
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation-4...104 °F (-20...40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 -4...131 °F (-20...55 °C) IEC 60068-2-1 and IEC 60068-2-2

Product details

The Schneider SR2B201FU is a Zelio Logic compact smart relay with a built-in real-time clock (RTC) that supports time-based sequencing and logging. It carries 12 discrete inputs rated for 100–240 V AC and includes a relay output rated for 10 A (resistive). The unit performs a program memory integrity check on every power-up, and its cycle time ranges from 6 to 90 ms depending on program size and logic type.

This relay is sized for standalone control of small machines, conveyors, or lighting panels. The front panel carries IP40 protection, terminals are IP20. Supply is 100–240 V AC, 50/60 Hz, consuming 11 VA without extension modules.

Frequently asked questions

What is the real-time clock accuracy?

Clock drift is specified at 12 min/year over 0–55 °C, or 6 s/month at 25 °C.

What compliance documentation is available for the SR2B201FU?

It conforms to IEC 61000-6-2, -3, -4, IEC 61131-2 (both EMC and Low Voltage directives), and radiated/conducted emissions at Class B per EN 55022-11. The unit also meets several immunity standards (IEC 61000-4-2/3/4/5/6/11/12 and shock/vibration per IEC 60068-2-27/6).
