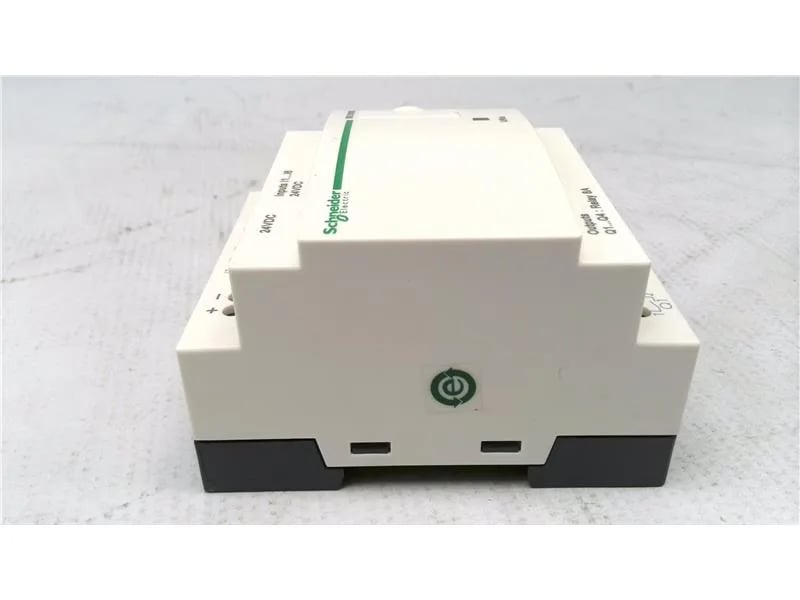

Schneider Electric SR2D101BD

Schneider SR2D101BD Zelio Logic Smart Relay, 24 V DC, 6 Inpu

MPNSR2D101BD
Active

Schneider Electric Zelio Logic compact smart relay, SR2D101BD, 24 V DC, 6 discrete inputs (IEC 61131-2 Type 1), relay outputs, no clock, program memory check on power up.

$60.96Ref. price · indicative, final on quote
Schneider Electric SR2D101BD datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

SR2D101BD key specifications
ParameterValue
Range of productZelio Logic
Discrete input typeResistive
Product or component typeCompact smart relay
Supply voltage limits19.2...30 V
Discrete input voltage24 V DC
Supply voltage24 V DC
Voltage state 0 guaranteed= 1.2 mA IB...IG used as discrete input circuit) >= 2.2 mA I1...IA and IH...IR discrete input circuit)
Voltage state 1 guaranteed>= 15 V I1...IA and IH...IR discrete input circuit >= 15 V IB...IG used as discrete input circuit
[Uimp] rated impulse withstand voltage4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Discrete input current4 mA
Maximum supply current100 mA without extension)
Current state 0 guaranteed= 10 mA 12 V relay output)

All specifications

SR2D101BD additional specifications
ParameterValue
Power dissipation in3 W without extension
Counting frequency1 kHz discrete input
Operating rate in0.1 Hz at Ie)relay output 10 Hz no load)relay output
IP degree of protectionIP20 IEC 60529 terminal block) IP40 IEC 60529 front panel)
Connections - terminalsScrew terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid Screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid Screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Response time10 ms from state 0 to state 1)relay output 5 ms from state 1 to state 0)relay output
Pollution degree2 IEC 61131-2
Relative humidity95 % without condensation or dripping water
Operating altitude6561.68 ft (2000 m)
Maximum altitude transport10000 ft (3048 m)
Mechanical durability10000000 cycles relay output
StandardsIEC 61000-4-5 IEC 61000-4-12 IEC 60068-2-27 Ea IEC 61000-4-2 level 3 IEC 60068-2-6 Fc IEC 61000-4-11 IEC 61000-4-4 level 3 IEC 61000-4-6 level 3 IEC 61000-4-3
ClockWithout
ChecksProgram memory on each power up
CategoryUS1000I22378
Cycle time6...90 ms
Backup time10 years 77 °F (25 °C)
Clock drift12 min/year 32...131 °F (0...55 °C) 6 s/month 77 °F (25 °C)
Local displayWithout
Tightening torque4.4 lbf.in (0.5 N.m)
Overvoltage categoryIII conforming to IEC 60664-1
Discrete input number6 IEC 61131-2 Type 1
Immunity to microbreaks1 ms
Reverse polarity protectionWith
Environmental characteristicEMC directive conforming to IEC 61000-6-2 EMC directive conforming to IEC 61000-6-3 EMC directive conforming to IEC 61000-6-4 EMC directive conforming to IEC 61131-2 zone B Low voltage directive conforming to IEC 61131-2
Disturbance radiated (conducted)Class B EN 55022-11 group 1
Number or control scheme lines240 ladder
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation-4...104 °F (-20...40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 -4...131 °F (-20...55 °C) IEC 60068-2-1 and IEC 60068-2-2

Product details

Schneider Electric SR2D101BD is a Zelio Logic compact smart relay running on 24 V DC. It brings 6 discrete inputs (IEC 61131-2 Type 1) and relay outputs, but notably carries no real-time clock — if your application needs time-stamping or scheduled events, you will need the external clock module or a different body. A program memory check runs on every power-up, catching corrupted logic early. Cycle time ranges from 6 to 90 ms depending on the ladder size (240 lines max).

I/O & output performance

Inputs are resistive type, 24 V DC nominal, 4 mA per point. The relay output response: 10 ms from off to on, 5 ms from on to off. Counting frequency hits 1 kHz on discrete inputs; operating rate at rated load is 0.1 Hz, no-load it can manage 10 Hz.

Power & environmental

Supply voltage limits 19.2…30 V DC; max supply current 100 mA without extension modules, dissipation 3 W. Reverse polarity protection is built in. Front panel is IP40, terminals IP20.

Compliance & standards

The SR2D101BD carries EMC conformity to IEC 61000-6-2, -6-3, -6-4 and IEC 61131-2 zone B, plus Low Voltage Directive. Immunity standards include IEC 61000-4-2 level 3 (ESD), IEC 61000-4-4 level 3 (burst), IEC 61000-4-5 (surge), IEC 61000-4-6 level 3 (conducted), IEC 61000-4-11 (dips), IEC 61000-4-12 (ring wave), and IEC 60068-2-27 shock / -2-6 vibration. Radiated and conducted emissions meet Class B EN 55022-11 group 1.

This is a current-production part — no end-of-life signals. Given the PLC-like programming and solid I/O count, it's a common spare for panel builders.

Frequently asked questions

What is the SR2D101BD's clock configuration?

The SR2D101BD has no real-time clock (field = 'Without'). If you need time-based scheduling, use the external RTC module or a Zelio Logic body with an RTC.

What does 'Checks Program memory on each power up' mean?

The unit verifies ladder program integrity at every startup, reducing the risk of executing corrupted logic.

What compliance documentation is available for the SR2D101BD?

It conforms to EMC directives IEC 61000-6-2, -6-3, -6-4, IEC 61131-2 zone B, and Low Voltage Directive. Immunity standards include IEC 61000-4-2/4/5/6/11/12 and IEC 60068-2-27/2-6. Emissions meet Class B EN 55022-11 group 1.
