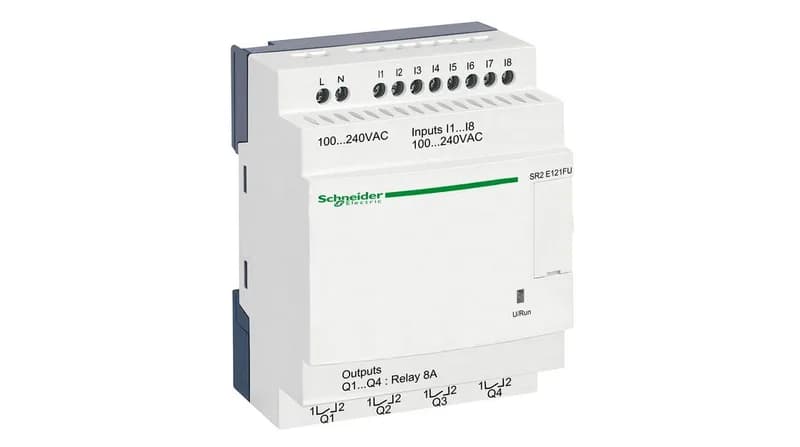

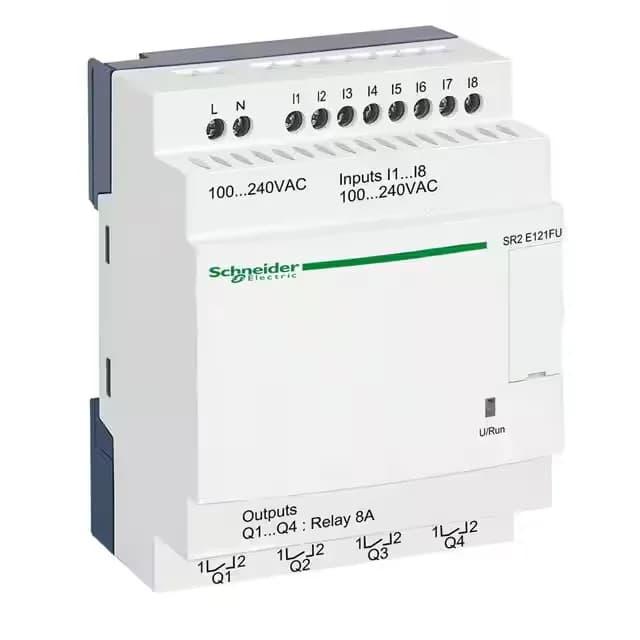

The SR2E121FU is a compact smart relay from Schneider's Zelio Logic range. Out here in the grease you'll see these tucked into panels running pumps, fans, and simple conveyor interlocks. It packs 8 discrete inputs rated for 100...240 V AC, so you can wire it straight to line-voltage pushbuttons or limit switches without a step-down transformer. Outputs are relay contacts good for 10 million mechanical cycles — the kind of life you expect from a panel that's running every shift.
Clock and timing
The built-in real-time clock holds its time for 10 years at 25 °C on the internal backup — so after a power outage you don't come back to a scrambled schedule. Drift runs about 12 minutes per year over the full 0...55 °C operating range, or 6 seconds per month at 25 °C. That's tight enough for daily on/off schedules and basic time-of-day logic. The relay also checks program memory on each power-up, so corruption from a brownout doesn't slip through.
Ruggedness for the plant floor
This smart relay is built to IEC 61131-2 and passes IEC 61000-4-2/4/5/6 Level 3 EMC tests, so it'll sit right next to a VFD or contactor without locking up. Pollution degree 2 and IP20 on the terminals (IP40 front) mean it's right at home in a standard enclosure out in the grease. Cycle time runs 6 to 90 ms depending on the program size — adequate for relay logic and basic process control.
