Schneider Electric SR2E201FU

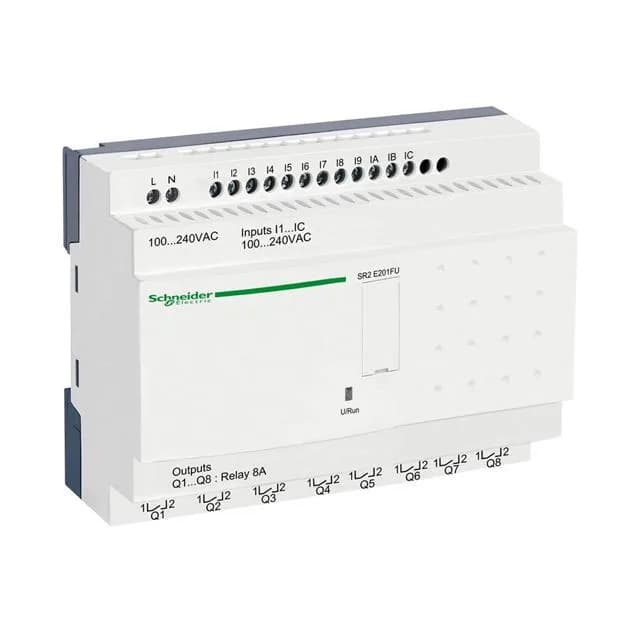

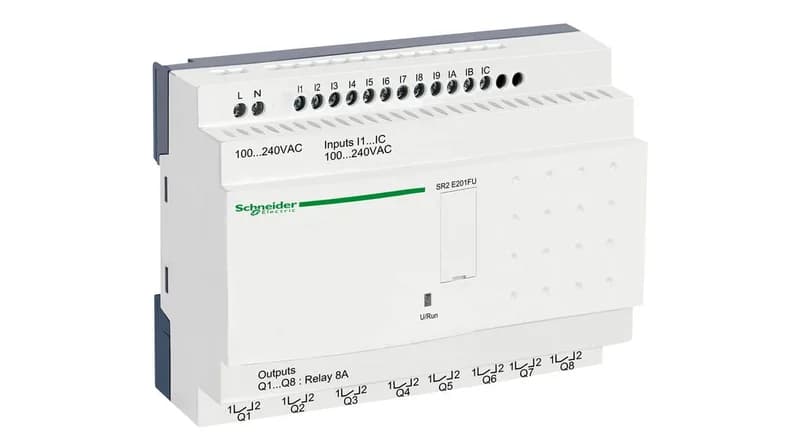

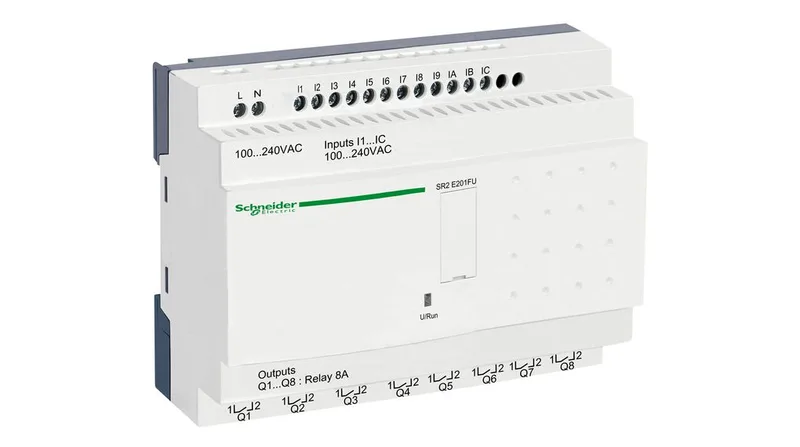

Schneider SR2E201FU Zelio Logic Smart Relay, 100-240V AC

MPNSR2E201FU
Active

Schneider Zelio Logic SR2E201FU compact smart relay, 100-240 V AC supply, 12 discrete inputs, relay outputs, with real-time clock.

$96.52Ref. price · indicative, final on quote
Schneider Electric SR2E201FU datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

SR2E201FU key specifications
ParameterValue
Protection typeAgainst inversion of terminals (control instructions not executed)
Range of productZelio Logic
Product or component typeCompact smart relay
Isolation voltage1780 V
Supply voltage limits85...264 V
Discrete input voltage100...240 V AC
Supply voltage100...240 V AC
Voltage state 0 guaranteed= 0.17 mA discrete input)
Voltage state 1 guaranteed>= 79 V discrete input
[Uimp] rated impulse withstand voltage4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Discrete input current0.6 mA
Maximum supply current100 mA 100 V without extension) 50 mA 240 V without extension)

All specifications

SR2E201FU additional specifications
ParameterValue
Current state 0 guaranteed= 10 mA 12 V relay output)
Power consumption in11 VA without extension
Supply frequency50/60 Hz
Operating rate in0.1 Hz at Ie)relay output 10 Hz no load)relay output
Discrete input frequency57...63 Hz 47...53 Hz
IP degree of protectionIP20 IEC 60529 terminal block) IP40 IEC 60529 front panel)
Connections - terminalsScrew terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid Screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid Screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Response time50 ms ladder from state 0 to state 1)discrete input 50 ms ladder from state 1 to state 0)discrete input 50...255 ms FBD from state 0 to state 1)discrete input 50...255 ms FBD from state 1 to state 0)discrete input 10 ms from state 0 to state 1)relay output 5 ms from state 1 to state 0)relay output
Pollution degree2 IEC 61131-2
Relative humidity95 % without condensation or dripping water
Operating altitude6561.68 ft (2000 m)
Maximum altitude transport10000 ft (3048 m)
Mechanical durability10000000 cycles relay output
StandardsIEC 61000-4-3 IEC 61000-4-11 IEC 60068-2-6 Fc IEC 61000-4-2 level 3 IEC 61000-4-12 IEC 61000-4-4 level 3 IEC 61000-4-5 IEC 60068-2-27 Ea IEC 61000-4-6 level 3
ClockWith
ChecksProgram memory on each power up
CategoryUS1000I22378
Cycle time6...90 ms
Backup time10 years 77 °F (25 °C)
Clock drift12 min/year 32...131 °F (0...55 °C) 6 s/month 77 °F (25 °C)
Local displayWithout
Tightening torque4.4 lbf.in (0.5 N.m)
Overvoltage categoryIII conforming to IEC 60664-1
Discrete input number12
Immunity to microbreaks10 ms
Environmental characteristicEMC directive conforming to IEC 61000-6-2 EMC directive conforming to IEC 61000-6-3 EMC directive conforming to IEC 61000-6-4 EMC directive conforming to IEC 61131-2 zone B Low voltage directive conforming to IEC 61131-2
Disturbance radiated (conducted)Class B EN 55022-11 group 1
Number or control scheme lines0...240 ladder 0...500 FBD
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation-4...104 °F (-20...40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 -4...131 °F (-20...55 °C) IEC 60068-2-1 and IEC 60068-2-2

Product details

Key specs for fit

Inputs are 100...240 V AC, 0.6 mA each, with a guaranteed state 1 threshold of ≥ 79 V. Outputs are relay type with a mechanical durability of 10 million cycles. Response time: 50 ms for inputs in ladder logic, 5 ms relay close, 10 ms relay open. The relay switches at 0.1 Hz under load (10 Hz no load). Pollutes to degree 2 per IEC 61131-2. Overvoltage category III. Terminals accept 0.2...2.5 mm² solid or ferrule, torque to 0.5 N·m. IP40 front, IP20 terminals.

Meets IEC 61000-4-3, -4-11, -4-2 level 3, -4-4 level 3, -4-5, -4-6, -4-12; IEC 60068-2-6, -2-27; and IEC 61131-2 (EMC zone B, low voltage). Emissions: Class B per EN 55022-11.

Frequently asked questions

Does the SR2E201FU include a real-time clock?

Yes. It has a clock with 10-year backup at 25 °C and a drift of 6 s/month at that temperature (12 min/year over 0...55 °C).

What check does the SR2E201FU perform on power-up?

It checks the program memory on each power-up to ensure integrity before running the logic.
