Schneider Electric SR2PACK2BD

Schneider SR2PACK2BD Zelio Logic Discovery Pack, 20 I/O

MPNSR2PACK2BD
Active

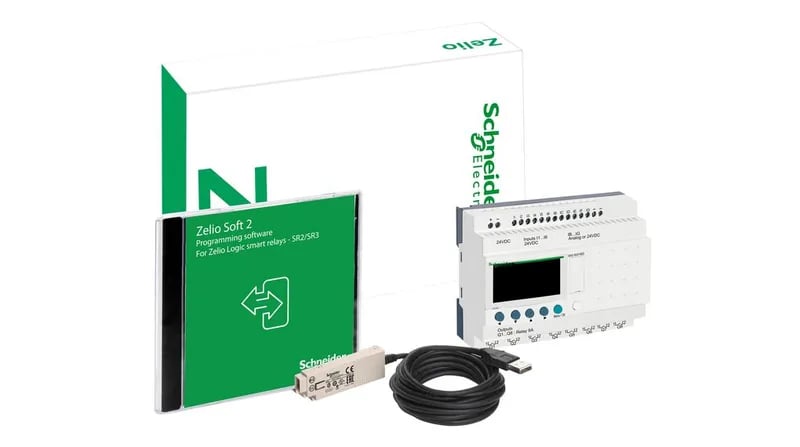

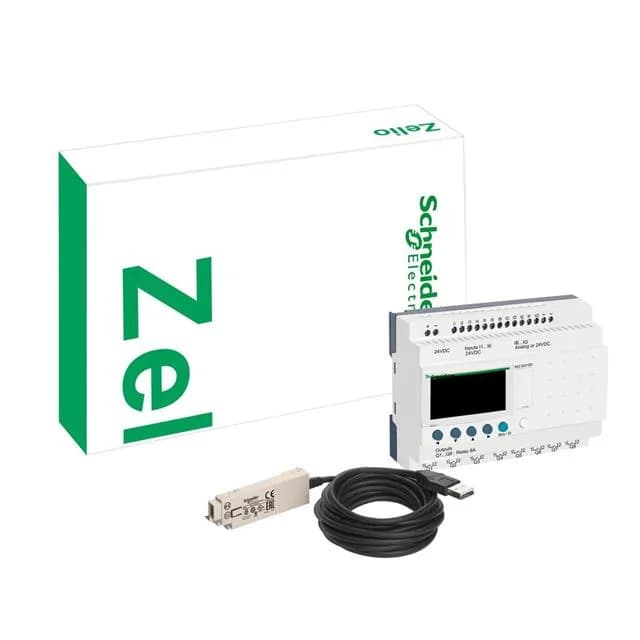

Schneider Electric Zelio Logic SR2PACK2BD compact discovery pack, 20 I/O (12 discrete inputs, 8 relay outputs), 24 V DC supply, no real-time clock, with local display and programming cable.

$346.78 – $452.82Ref. price · indicative, final on quote
Schneider Electric SR2PACK2BD datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

SR2PACK2BD key specifications
ParameterValue
Range of productZelio Logic
Discrete input typeResistive
Product or component typeCompact discovery packs
Supply voltage limits19.2...30 V
Discrete input voltage24 V DC
Supply voltage24 V
Voltage state 0 guaranteed= 1.2 mA IB...IG used as discrete input circuit) >= 2.2 mA I1...IA and IH...IR discrete input circuit)
Voltage state 1 guaranteed>= 15 V I1...IA and IH...IR discrete input circuit >= 15 V IB...IG used as discrete input circuit
[Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Discrete input current4 mA
Maximum supply current100 mA without extension)
Current state 0 guaranteed= 10 mA 12 V relay output)

All specifications

SR2PACK2BD additional specifications
ParameterValue
Power dissipation in6 W without extension
Counting frequency1 kHz discrete input
Operating rate in0.1 Hz at Ie)relay output 10 Hz no load)relay output
I/O channels8 relay
IP degree of protectionIP20 IEC 60529 terminal block) IP40 IEC 60529 front panel)
Connections - terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Response time10 ms from state 0 to state 1)relay output 5 ms from state 1 to state 0)relay output
Pollution degree2 IEC 61131-2
Relative humidity95 % without condensation or dripping water
Operating altitude6561.68 ft (2000 m)
Maximum altitude transport10000 ft (3048 m)
Mechanical durability10000000 cycles relay output
StandardsIEC 61000-4-6 level 3 IEC 61000-4-3 IEC 60068-2-27 Ea IEC 61000-4-11 IEC 61000-4-12 IEC 60068-2-6 Fc IEC 61000-4-5 IEC 61000-4-2 level 3 IEC 61000-4-4 level 3
ClockWithout
ChecksProgram memory on each power up
CategoryUS1000I22378
Cycle time6...90 ms
Backup time10 years 77 °F (25 °C)
Clock drift12 min/year 32...131 °F (0...55 °C) 6 s/month 77 °F (25 °C)
Local displayWith
Kit compositionSR2B201BD Cable PC SR2USB01 for connection to PC
Tightening torque4.4 lbf.in (0.5 N.m)
Input (output number)20
Overvoltage categoryIII conforming to IEC 60664-1
Discrete input number12 IEC 61131-2 Type 1
Immunity to microbreaks1 ms
Reverse polarity protectionWith
Environmental characteristicEMC directive IEC 61000-6-2 EMC directive IEC 61000-6-3 EMC directive IEC 61000-6-4 EMC directive IEC 61131-2 zone B low voltage directive IEC 61131-2
Disturbance radiated (conducted)Class B EN 55022-11 group 1
Number or control scheme lines120 ladder 0...200 FBD
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation-4...104 °F (-20...40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 -4...131 °F (-20...55 °C) IEC 60068-2-1 and IEC 60068-2-2

Product details

The SR2PACK2BD is a Schneider Electric Zelio Logic compact discovery pack — a pre-assembled kit that skips the separate part hunt. It bundles the SR2B201BD smart relay with the SR2USB01 programming cable, so it lands on your bench ready to load logic out of the box. Supply voltage is 19.2–30 V DC (rated 24 V), drawing 100 mA max without expansion modules, dissipating 6 W. The 20 I/O split is 12 discrete inputs (24 V DC, 4 mA, Type 1 per IEC 61131-2) and 8 relay outputs.

No real-time clock (: Without) — this unit does not timestamp events or run time-of-day schedules. If your application logs alarms or cycles loads by the hour, you need a Zelio with RTC (SR2B201BD does not include one either, but the SR3 series does). Program memory is checked on every power-up, which means a corruption gets caught before the relay starts controlling loads. Backup time is 10 years at 25 °C, so your logic survives indefinite power-downs without battery replacement. Relay outputs are rated for mechanical durability of 10 million cycles. Their operating rate is 0.1 Hz at rated load (Ie) and 10 Hz unloaded — fine for contactor or valve control, not for fast pulse counting. Response time is 10 ms ON, 5 ms OFF. Counting frequency on discrete inputs reaches 1 kHz, suitable for encoder pulses at moderate speeds. The local display lets you monitor or tweak logic on the panel without a laptop.

IP20 on terminals, IP40 on front panel. Operating altitude up to 6561.68 ft (2000 m) without derating.

No last-time-buy or obsolescence notice is associated with this order code. There is no officially announced successor, but the natural evolution within the Zelio family is the SR3 series if you need a real-time clock or Ethernet connectivity. For a direct BOM drop-in today, the SR2PACK2BD is the current active kit.

Frequently asked questions

Does the SR2PACK2BD include a real-time clock?

No. The part is listed without a real-time clock. If your application requires time-based scheduling, look at the Zelio SR3 series which includes an RTC.

What comes in the kit?

The SR2PACK2BD includes the SR2B201BD smart relay and the SR2USB01 programming cable. No separate cable purchase needed.
