Schneider Electric SR2PACK2FU

Schneider SR2PACK2FU Zelio Logic smart relay, 12 inputs, 8 relay outputs

MPNSR2PACK2FU
Active

Schneider SR2PACK2FU Controllers Programmable (Plc, Pac) — now discontinued, supplied from remaining surplus and broker stock.

$346.78 – $452.82Ref. price · indicative, final on quote
Schneider Electric SR2PACK2FU datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

SR2PACK2FU key specifications
ParameterValue
Protection typeAgainst inversion of terminals (control instructions not executed)
Range of productZelio Logic
Product or component typeCompact discovery packs
Isolation voltage1780 V
Supply voltage limits85...264 V
Discrete input voltage100...240 V AC
Supply voltage100...240 V
Voltage state 0 guaranteed= 0.17 mA discrete input)
Voltage state 1 guaranteed>= 79 V discrete input
[Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Discrete input current0.6 mA
Maximum supply current100 mA 100 V without extension) 50 mA 240 V without extension)

All specifications

SR2PACK2FU additional specifications
ParameterValue
Current state 0 guaranteed= 10 mA 12 V relay output)
Power consumption in11 VA without extension
Supply frequency50/60 Hz
Operating rate in0.1 Hz at Ie)relay output 10 Hz no load)relay output
Discrete input frequency57...63 Hz 47...53 Hz
I/O channels8 relay
IP degree of protectionIP20 IEC 60529 terminal block) IP40 IEC 60529 front panel)
Connections - terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Response time50 ms ladder from state 0 to state 1)discrete input 50 ms ladder from state 1 to state 0)discrete input 50...255 ms FBD from state 0 to state 1)discrete input 50...255 ms FBD from state 1 to state 0)discrete input 10 ms from state 0 to state 1)relay output 5 ms from state 1 to state 0)relay output
Pollution degree2 IEC 61131-2
Relative humidity95 % without condensation or dripping water
Operating altitude6561.68 ft (2000 m)
Maximum altitude transport10000 ft (3048 m)
Mechanical durability10000000 cycles relay output
StandardsIEC 61000-4-2 level 3 IEC 60068-2-27 Ea IEC 61000-4-5 IEC 61000-4-6 level 3 IEC 61000-4-3 IEC 60068-2-6 Fc IEC 61000-4-4 level 3 IEC 61000-4-12 IEC 61000-4-11
ClockWithout
ChecksProgram memory on each power up
CategoryUS1000I22378
Cycle time6...90 ms
Backup time10 years 77 °F (25 °C)
Clock drift12 min/year 32...131 °F (0...55 °C) 6 s/month 77 °F (25 °C)
Local displayWith

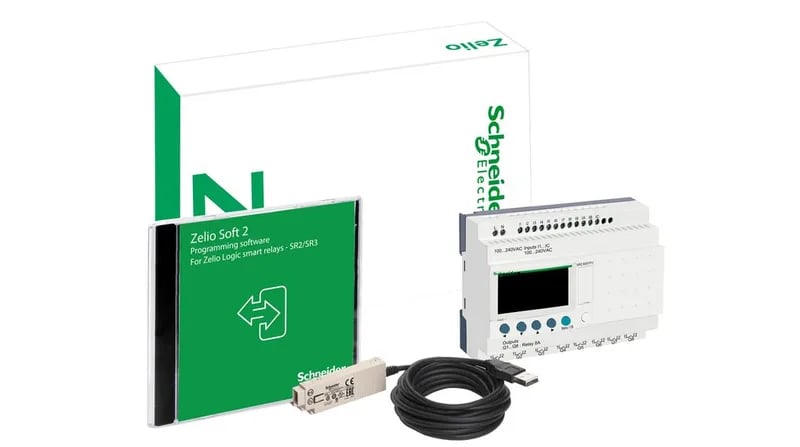

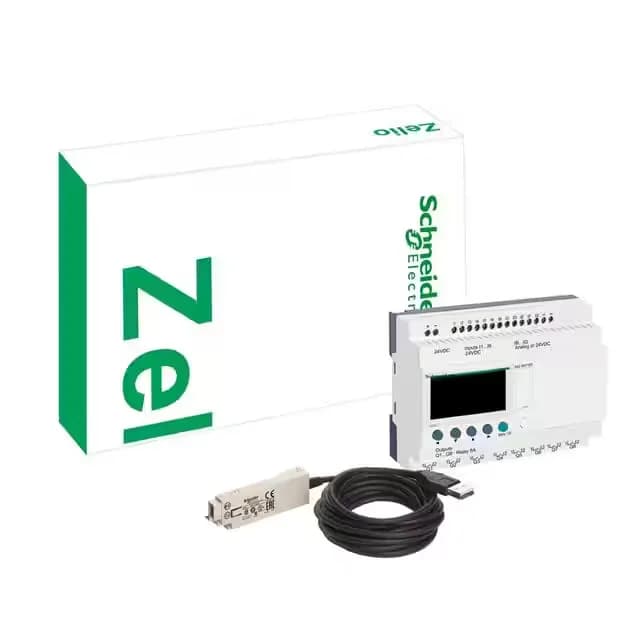

Kit compositionSR2B201FU Cable PC SR2USB01 for connection to PC
Tightening torque4.4 lbf.in (0.5 N.m)
Input (output number)20
Overvoltage categoryIII conforming to IEC 60664-1
Discrete input number12
Immunity to microbreaks10 ms
Environmental characteristicEMC directive IEC 61000-6-2 EMC directive IEC 61000-6-3 EMC directive IEC 61000-6-4 EMC directive IEC 61131-2 zone B low voltage directive IEC 61131-2
Disturbance radiated (conducted)Class B EN 55022-11 group 1
Number or control scheme lines120 ladder 0...200 FBD
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation-4...104 °F (-20...40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 -4...131 °F (-20...55 °C) IEC 60068-2-1 and IEC 60068-2-2

Product details

Overview

The SR2PACK2FU is a Schneider Zelio Logic smart relay packing 12 discrete inputs and 8 relay outputs on a 100-240 VAC supply, with a built-in real-time clock and USB programming via the included cable. It is non-expandable and sealed to IP20 (IP40 on the front face), fitting a DIN-rail panel.

Compared to the SR2PACKFU, the SR2PACK2FU adds 4 more discrete inputs (12 vs 8) and 4 more relay outputs (8 vs 4), and is non-expandable — the SR2PACKFU can accept expansion modules. Choose the SR2PACK2FU when the I/O count is fixed and you need the higher density in a single base unit.
