Schneider Electric SR2PACKFU

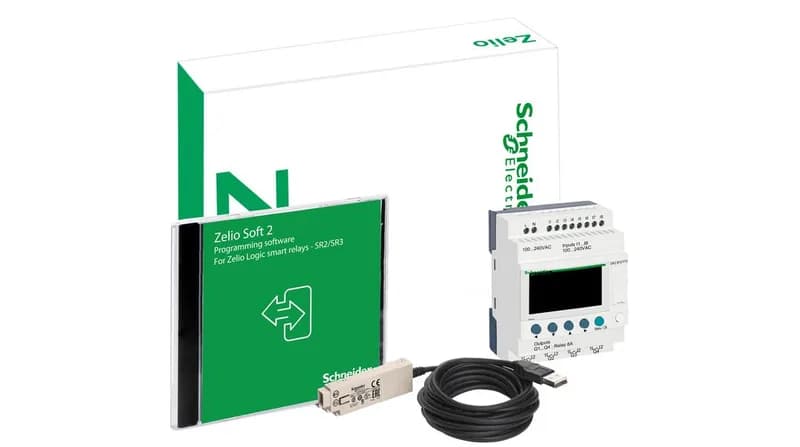

Schneider Electric SR2PACKFU Zelio Logic Compact Smart Relay

MPNSR2PACKFU
Active

Schneider Electric Zelio Logic compact discovery pack, 12 I/O (8 discrete inputs, 4 relay outputs), 100-240 VAC supply, cycle time 6-90 ms, with local display and real-time clock.

$102.87Ref. price · indicative, final on quote
Schneider Electric SR2PACKFU datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

SR2PACKFU key specifications
ParameterValue
Protection typeAgainst inversion of terminals (control instructions not executed)
Range of productZelio Logic
Product or component typeCompact discovery packs
Isolation voltage1780 V
Supply voltage limits85...264 V
Discrete input voltage100...240 V AC
Supply voltage100...240 V
Voltage state 0 guaranteed= 0.17 mA discrete input)
Voltage state 1 guaranteed>= 79 V discrete input
[Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Discrete input current0.6 mA
Maximum supply current30 mA 240 V without extension) 80 mA 100 V without extension)

All specifications

SR2PACKFU additional specifications
ParameterValue
Current state 0 guaranteed= 10 mA 12 V relay output)
Power consumption in7 VA without extension
Supply frequency50/60 Hz
Operating rate in0.1 Hz at Ie)relay output 10 Hz no load)relay output
Discrete input frequency47...53 Hz 57...63 Hz
I/O channels4 relay
IP degree of protectionIP20 IEC 60529 terminal block) IP40 IEC 60529 front panel)
Connections - terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Response time50 ms ladder from state 0 to state 1)discrete input 50 ms ladder from state 1 to state 0)discrete input 50...255 ms FBD from state 0 to state 1)discrete input 50...255 ms FBD from state 1 to state 0)discrete input 10 ms from state 0 to state 1)relay output 5 ms from state 1 to state 0)relay output
Pollution degree2 IEC 61131-2
Relative humidity95 % without condensation or dripping water
Operating altitude6561.68 ft (2000 m)
Maximum altitude transport10000 ft (3048 m)
Mechanical durability10000000 cycles relay output
StandardsIEC 61000-4-2 level 3 IEC 61000-4-12 IEC 61000-4-11 IEC 61000-4-3 IEC 60068-2-6 Fc IEC 61000-4-6 level 3 IEC 60068-2-27 Ea IEC 61000-4-5 IEC 61000-4-4 level 3
ClockWith
ChecksProgram memory on each power up
CategoryUS1000I22378
Cycle time6...90 ms
Backup time10 years 77 °F (25 °C)
Clock drift12 min/year 32...131 °F (0...55 °C) 6 s/month 77 °F (25 °C)
Local displayWith
Kit compositionSR2B121FU Cable PC SR2USB01 for connection to PC
Tightening torque4.4 lbf.in (0.5 N.m)
Input (output number)12
Overvoltage categoryIII conforming to IEC 60664-1
Discrete input number8
Immunity to microbreaks10 ms
Environmental characteristicEMC directive IEC 61000-6-2 EMC directive IEC 61000-6-3 EMC directive IEC 61000-6-4 EMC directive IEC 61131-2 zone B low voltage directive IEC 61131-2
Disturbance radiated (conducted)Class B EN 55022-11 group 1
Number or control scheme lines120 ladder 0...200 FBD
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation-4...104 °F (-20...40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 -4...131 °F (-20...55 °C) IEC 60068-2-1 and IEC 60068-2-2

Product details

Smart relay with built-in RTC and display

The Schneider Electric SR2PACKFU is a Zelio Logic compact discovery pack combining a smart relay with 12 I/O: 8 discrete inputs (100-240 VAC, 0.6 mA) and 4 relay outputs. It runs on 100-240 VAC supply, 50/60 Hz, and has a cycle time of 6 to 90 ms. A local display and real-time clock are included; the clock maintains time for 10 years at 25°C without power, with drift of 12 min/year over 0-55°C or 6 s/month at 25°C. The base unit checks program memory on each power-up.

Supply voltage limits are 85-264 VAC, so it handles nominal 120 V or 240 V lines with brownout margin. At 240 V the module draws 30 mA (without extension); at 100 V it draws 80 mA. Inputs are 100-240 VAC, sinking 0.6 mA each — straight off the line, no separate sensor supply needed. Relay outputs switch at 0.1 Hz at rated current (10 Hz no-load), mechanical durability 10 million cycles. Isolation voltage 1780 V. IP20 on terminals, IP40 front panel.

Frequently asked questions

What is the clock drift and backup time?

Clock drift is 12 min/year over 32-131°F (0-55°C) and 6 s/month at 77°F (25°C). Backup time is 10 years at 77°F (25°C).

What compliance standards does it meet?

It meets IEC 61000-4-2 level 3, IEC 61000-4-12, IEC 61000-4-11, IEC 61000-4-3, IEC 60068-2-6 Fc, IEC 61000-4-6 level 3, IEC 60068-2-27 Ea, IEC 61000-4-5, IEC 61000-4-4 level 3, and IEC 61131-2 (pollution degree 2).
