Schneider Electric SR3B261BD

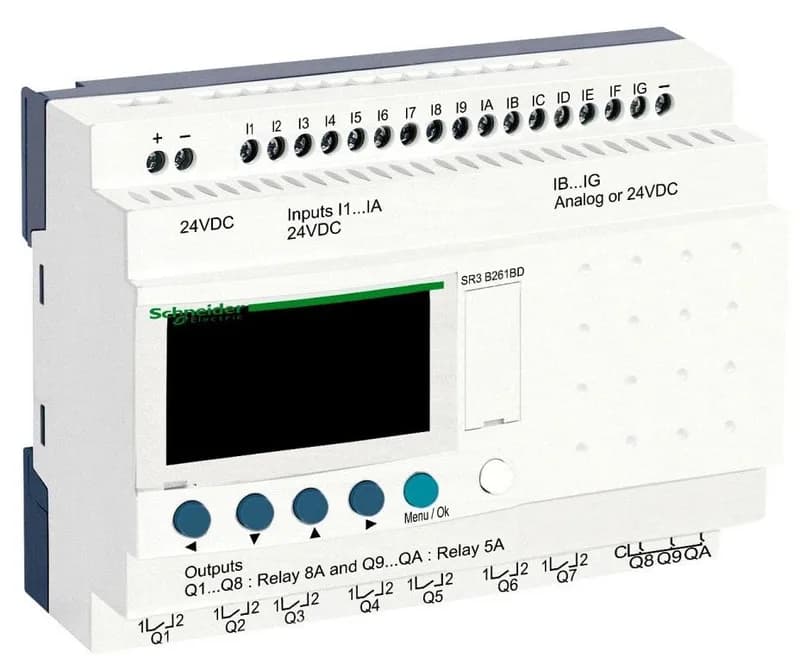

Schneider SR3B261BD Zelio Logic PLC, 22 I/O, 16 digital, 6 analog, 10 relay outp

MPNSR3B261BD
Active

Schneider SR3B261BD Controllers Programmable (Plc, Pac) — now discontinued, supplied from remaining surplus and broker stock.

$134.62Ref. price · indicative, final on quote
Schneider Electric SR3B261BD datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

SR3B261BD key specifications
ParameterValue
Range of productZelio Logic
Discrete input typeResistive
Product or component typeModular smart relay
Supply voltage limits19.2...30 V
Discrete input voltage24 V DC
Supply voltage24 V
Voltage state 0 guaranteed= 1.2 mA IB...IG used as discrete input circuit) >= 2.2 mA I1...IA and IH...IR discrete input circuit)
Voltage state 1 guaranteed>= 15 V I1...IA and IH...IR discrete input circuit >= 15 V IB...IG used as discrete input circuit
[Uimp] rated impulse withstand voltage4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Discrete input current4 mA
Maximum supply current190 mA without extension) 300 mA with extensions)
Current state 0 guaranteed= 10 mA 12 V relay output)

All specifications

SR3B261BD additional specifications
ParameterValue
Power dissipation in10 W with extensions 6 W without extension
Counting frequency1 kHz discrete input
Operating rate in0.1 Hz at Ie)relay output 10 Hz no load)relay output
IP degree of protectionIP20 IEC 60529 terminal block) IP40 IEC 60529 front panel)
Connections - terminalsScrew terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid Screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid Screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Response time10 ms from state 0 to state 1)relay output 5 ms from state 1 to state 0)relay output
Pollution degree2 IEC 61131-2
Relative humidity95 % without condensation or dripping water
Operating altitude6561.68 ft (2000 m)
Maximum altitude transport10000 ft (3048 m)
Mechanical durability10000000 cycles relay output
StandardsIEC 61000-4-2 level 3 IEC 61000-4-5 IEC 61000-4-6 level 3 IEC 61000-4-11 IEC 61000-4-3 IEC 60068-2-27 Ea IEC 61000-4-12 IEC 60068-2-6 Fc IEC 61000-4-4 level 3
ClockWith
ChecksProgram memory on each power up
CategoryUS1000I22378
Cycle time6...90 ms
Backup time10 years 77 °F (25 °C)
Clock drift12 min/year 32...131 °F (0...55 °C) 6 s/month 77 °F (25 °C)
Local displayWith
Tightening torque4.4 lbf.in (0.5 N.m)
Overvoltage categoryIII conforming to IEC 60664-1
Discrete input number16 IEC 61131-2 Type 1
Immunity to microbreaks1 ms
Reverse polarity protectionWith
Environmental characteristicEMC directive conforming to IEC 61000-6-2 EMC directive conforming to IEC 61000-6-3 EMC directive conforming to IEC 61000-6-4 EMC directive conforming to IEC 61131-2 zone B Low voltage directive conforming to IEC 61131-2
Disturbance radiated (conducted)Class B EN 55022-11 group 1
Number or control scheme lines0...500 FBD 0...240 ladder
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation-4...104 °F (-20...40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 -4...131 °F (-20...55 °C) IEC 60068-2-1 and IEC 60068-2-2

Product details

Overview

The SR3B261BD is a Schneider Zelio Logic smart relay with 22 I/O: 16 digital inputs conforming to EN/IEC 61131-2 Type 1, 6 analog inputs (0-10 V, 39 mV LSB), and 10 relay outputs rated for 500,000 cycles at 230 V AC-12 (1.5 A) and 24 V DC-12 (1.5 A). It includes a real-time clock with a drift of 6 s/month at 25 °C, a 90 ms scan time, and draws 4 mA from a 24 V DC supply.

Compared to the SR3B261JD, which has 12 digital and 6 analog inputs (18 total), the SR3B261BD adds 4 more digital inputs (16 vs 12) while keeping the same 6 analog channels, making it the higher-density choice for applications needing more discrete sensing.

The SR3B261BD is in active production; lead time is typically quoted per RFQ and varies by quantity.
