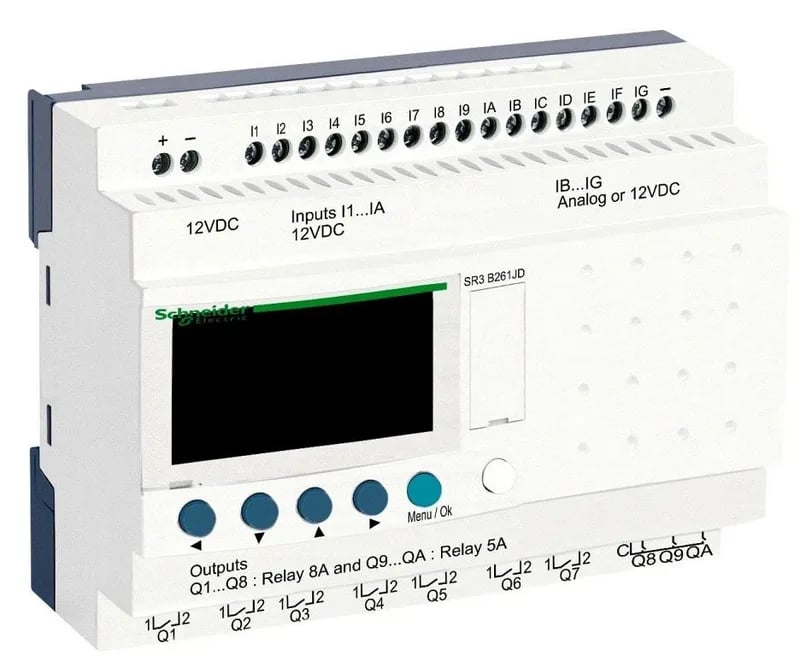

Schneider Electric SR3B261JD

Schneider SR3B261JD Zelio Logic Smart Relay, 12V DC, Real-Ti

MPNSR3B261JD
Active

Schneider Electric Zelio Logic modular smart relay, SR3B261JD, 12 V DC supply, 16 resistive inputs, relay outputs, real-time clock, local display.

$134.62Ref. price · indicative, final on quote
Schneider Electric SR3B261JD datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

SR3B261JD key specifications
ParameterValue
Range of productZelio Logic
Discrete input typeResistive
Product or component typeModular smart relay
Supply voltage limits10.4...14.4 V
Discrete input voltage12 V DC
Supply voltage12 V
Voltage state 0 guaranteed= 2 mA I1...IA and IH...IR discrete input circuit) >= 0.5 mA IB...IG used as discrete input circuit)
Voltage state 1 guaranteed>= 7 V IB...IG used as discrete input circuit >= 5.6 V I1...IA and IH...IR discrete input circuit
[Uimp] rated impulse withstand voltage4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Discrete input current4 mA
Maximum supply current250 mA without extension) 400 mA with extensions)
Current state 0 guaranteed= 10 mA 12 V relay output)

All specifications

SR3B261JD additional specifications
ParameterValue
Power dissipation in3 W without extension 5 W with extensions
Counting frequency1 kHz discrete input
Operating rate in0.1 Hz at Ie)relay output 10 Hz no load)relay output
IP degree of protectionIP20 IEC 60529 terminal block) IP40 IEC 60529 front panel)
Connections - terminalsScrew terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid Screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid Screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Response time10 ms from state 0 to state 1)relay output 5 ms from state 1 to state 0)relay output
Pollution degree2 IEC 61131-2
Relative humidity95 % without condensation or dripping water
Operating altitude6561.68 ft (2000 m)
Maximum altitude transport10000 ft (3048 m)
Mechanical durability10000000 cycles relay output
StandardsIEC 60068-2-6 Fc IEC 61000-4-12 IEC 61000-4-3 IEC 61000-4-6 level 3 IEC 61000-4-5 IEC 61000-4-11 IEC 61000-4-2 level 3 IEC 60068-2-27 Ea IEC 61000-4-4 level 3
ClockWith
ChecksProgram memory on each power up
CategoryUS1000I22378
Cycle time6...90 ms
Backup time10 years 77 °F (25 °C)
Clock drift12 min/year 32...131 °F (0...55 °C) 6 s/month 77 °F (25 °C)
Local displayWith
Tightening torque4.4 lbf.in (0.5 N.m)
Overvoltage categoryIII conforming to IEC 60664-1
Discrete input number16 IEC 61131-2 Type 1
Immunity to microbreaks1 ms repeated 20 times
Reverse polarity protectionWith
Environmental characteristicEMC directive conforming to IEC 61000-6-2 EMC directive conforming to IEC 61000-6-3 EMC directive conforming to IEC 61000-6-4 EMC directive conforming to IEC 61131-2 zone B Low voltage directive conforming to IEC 61131-2
Disturbance radiated (conducted)Class B EN 55022-11 group 1
Number or control scheme lines0...500 FBD 0...240 ladder
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation-4...104 °F (-20...40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 -4...131 °F (-20...55 °C) IEC 60068-2-1 and IEC 60068-2-2

Product details

The SR3B261JD is a Zelio Logic modular smart relay from Schneider Electric, running on a 12 V DC supply and rated for 16 IEC 61131-2 Type 1 discrete inputs plus relay outputs. It carries a real-time clock that runs on supercapacitor backup for 10 years at 25 °C, with typical drift of 6 seconds per month at that temperature. The local display and program memory check on every power-up are built in, so you get immediate status at startup without a separate programmer.

Cycle time is listed as 6…90 ms — that range covers simple to moderately complex ladder (up to 240 lines) or function block (up to 500 lines) programs, per the spec. The relay output response is 10 ms on-to-off and 5 ms off-to-on; for time-critical valve or contactor sequences, keep this in mind. Discrete inputs are 12 V DC, resistive type, with 4 mA draw per channel. Counting frequency on those inputs goes to 1 kHz, so it handles encoder or flowmeter pulses without a separate counter. The power budget sits at 3 W without expansion modules and 5 W with them; maximum supply current is 250 mA without expansion, 400 mA with — that gives you a headroom number when sizing the 12 V supply. Reverse polarity protection is included, saving a replacement if a field wire is crossed. EMC compliance covers IEC 61000-6-2 (industrial immunity), IEC 61000-6-3 and -6-4 (emission limits), and IEC 61131-2 Zone B. The conducted and radiated emission class is B per EN 55022-11 Group 1, so it is acceptable for both residential and industrial environments without external filtering in most panels.

Build and mounting

IP40 on the front panel, IP20 on the terminals — standard for a panel-mount smart relay. Screw terminals accept 0.2…2.5 mm² solid or stranded with ferrules, or 2 x 0.2…1.5 mm² solid. Tightening torque is 0.5 N·m. Clock drift is listed as 12 minutes per year over the full 0…55 °C range, but only 6 seconds per month at 25 °C — the drift is temperature-sensitive, so if your logic relies on precision time-of-day events in a hot cabinet, account for that.

Sourcing note

As an active catalog item from Schneider, the SR3B261JD is available to order. Submit an RFQ with your quantity and preferred lead time; no surplus or broker channel needed. This is a straight BOM line item for a new panel or a running replacement.

Frequently asked questions

What compliance documentation does the SR3B261JD carry?

The part conforms to IEC 60068-2-6 Fc, IEC 61000-4-12, IEC 61000-4-3, IEC 61000-4-6 level 3, IEC 61000-4-5, IEC 61000-4-11, IEC 61000-4-2 level 3, IEC 60068-2-27 Ea, and IEC 61000-4-4 level 3. It also meets EMC directive IEC 61000-6-2, -6-3, -6-4, and IEC 61131-2 Zone B, plus Low Voltage Directive per IEC 61131-2. Emission class is Class B per EN 55022-11 Group 1.

What is the clock and backup time on the SR3B261JD?

The smart relay includes a real-time clock with program memory check on each power-up. Backup time is 10 years at 25 °C via supercapacitor. Clock drift is 6 seconds per month at 25 °C, or 12 minutes per year over the full 0…55 °C range.
