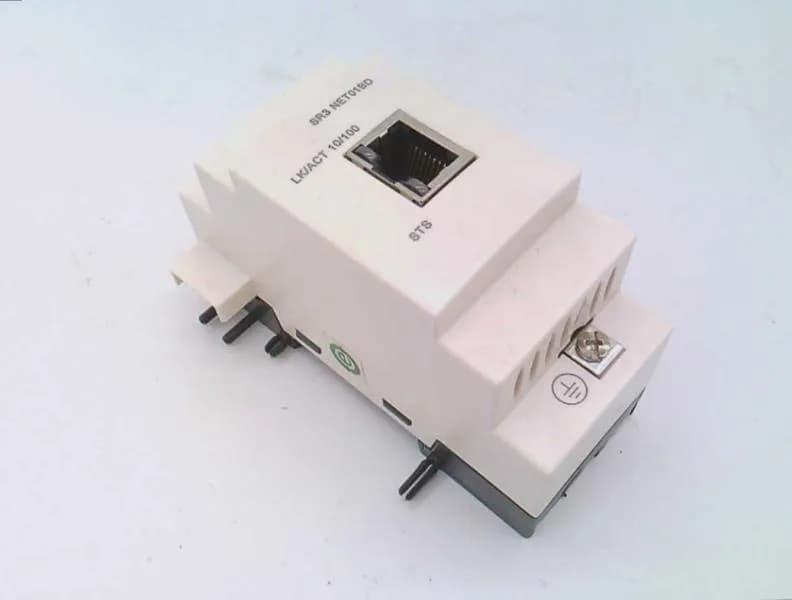

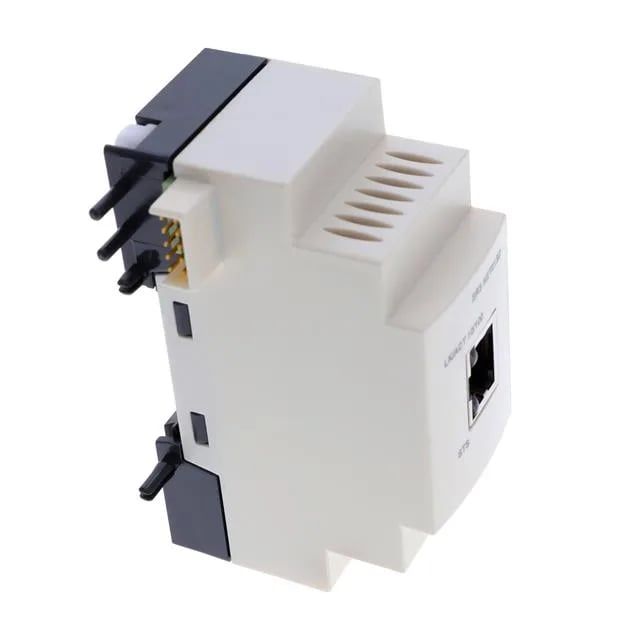

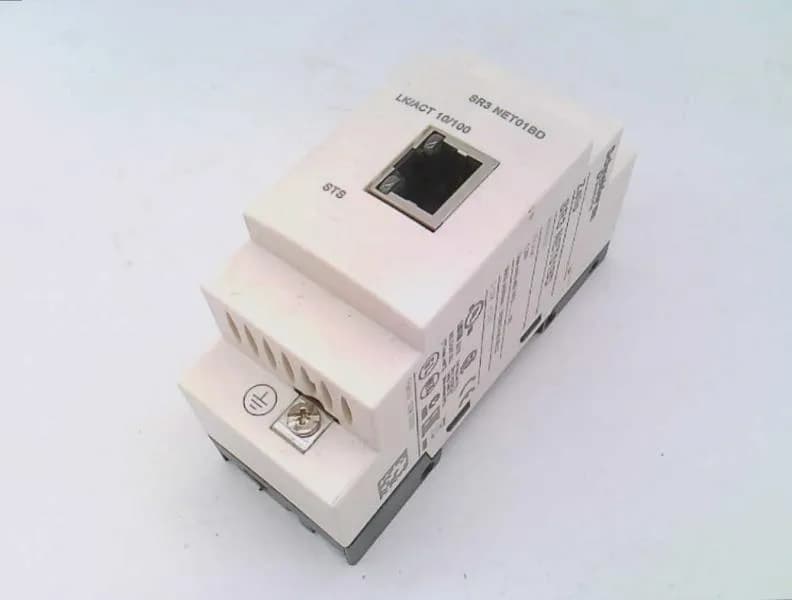

Schneider Electric SR3NET01BD

Schneider Electric SR3NET01BD Zelio Logic Ethernet Module, 1

MPNSR3NET01BD
Active

Schneider Electric Zelio Logic SR3NET01BD Ethernet communication module, 10/100BASE-T, RJ45, IP20 front panel / IP40 terminals.

$74.93Ref. price · indicative, final on quote
Schneider Electric SR3NET01BD datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

SR3NET01BD key specifications
ParameterValue
Range of productZelio Logic
Product or component typeEthernet communication module
IP degree of protectionIP20 IEC 60529 terminal block) IP40 IEC 60529 front panel)
Communication port support10/100BASE-T
Communication port protocolEthernet
Electrical connection1 connector RJ45
Connections - terminalsScrew terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) semi-solid Screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) solid Screw terminals, 2 x 0.25...2 x 1.5 mm² AWG 23...AWG 16) solid Screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Pollution degree2 IEC 61131-2
Relative humidity95 % without condensation or dripping water
Operating altitude6561.68 ft (2000 m)
Maximum altitude transport10000 ft (3048 m)
StandardsIEC 61000-4-4 level 3 IEC 61000-4-5 IEC 61000-4-2 level 3 IEC 61000-4-3 IEC 60068-2-6 Fc IEC 60068-2-27 Ea

All specifications

SR3NET01BD additional specifications
ParameterValue
CategoryUS1000I22378
Local signalling1 LED for communication (LK/ACT 10/100) 1 LED for status (STS)
Tightening torque4.4 lbf.in (0.5 N.m)
Programming languageFBD
Environmental characteristicEMC directive conforming to IEC 61000-6-2 EMC directive conforming to IEC 61000-6-3 EMC directive conforming to IEC 61000-6-4 EMC directive conforming to IEC 61131-2 zone B Low voltage directive conforming to IEC 61131-2
Disturbance radiated (conducted)Class B EN 55022-11 group 1
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation-4...104 °F (-20...40 °C) IEC 60068-2-1 and IEC 60068-2-2 -4...131 °F (-20...55 °C) IEC 60068-2-1 and IEC 60068-2-2

Product details

The SR3NET01BD is an Ethernet communication interface for the Schneider Electric Zelio Logic SR3 series smart relays (24 V DC models). It adds a 10/100BASE-T port via an RJ45 connector, with two LEDs for link/activity and module status.

Mounted on the front of an SR3 smart relay, the module occupies no additional DIN rail space. Terminal block wiring accepts 0.25–2.5 mm² solid or flexible cable (AWG 24–14) with a tightening torque of 0.5 N·m. Pollution degree 2 per IEC 61131-2 means it is suitable for typical control panel environments without conductive contamination. Operating temperature range is –20 to 55 °C (IEC 60068-2-1/2-2) with a 40 °C derated limit; storage range –40 to 70 °C. The module is rated IP20 at the terminal block and IP40 on the front panel per IEC 60529.

Compliance & immunity

The module conforms to the EMC directive via IEC 61000-6-2 (industrial immunity), IEC 61000-6-3/4 (emission), and IEC 61131-2 zone B. Radiated/conducted emissions meet Class B of EN 55022-11 group 1. Transient/burst immunity is Level 3 per IEC 61000-4-4, surge per IEC 61000-4-5, and ESD per IEC 61000-4-2 Level 3. Vibration (IEC 60068-2-6 Fc) and shock (IEC 60068-2-27 Ea) testing is covered. The module operates at altitudes up to 2000 m and withstands 95% relative humidity without condensation.

Frequently asked questions

What is the category code for the SR3NET01BD?

The category code is US1000I22378.

What EMC/immunity standards does the SR3NET01BD comply with?

It complies with IEC 61000-4-4 Level 3, IEC 61000-4-5, IEC 61000-4-2 Level 3, IEC 61000-4-3, IEC 60068-2-6 Fc, and IEC 60068-2-27 Ea. Emissions meet Class B of EN 55022-11 group 1.

Does the SR3NET01BD support 10/100BASE-T?

Yes, it supports 10/100BASE-T Ethernet via an RJ45 connector.
