Schneider Electric SR3PACK2BD

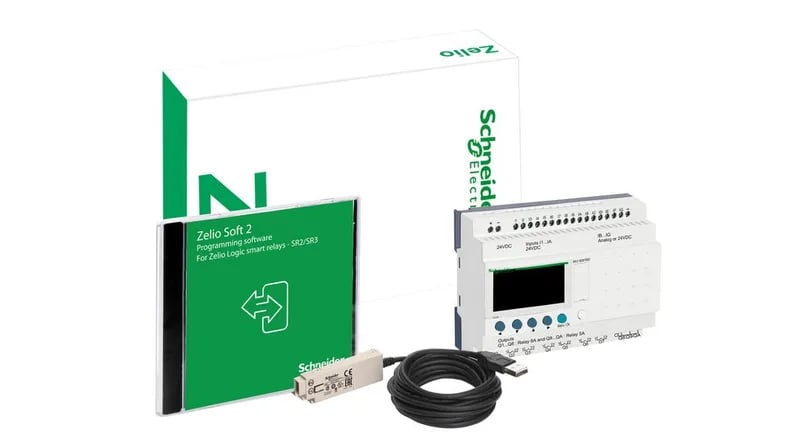

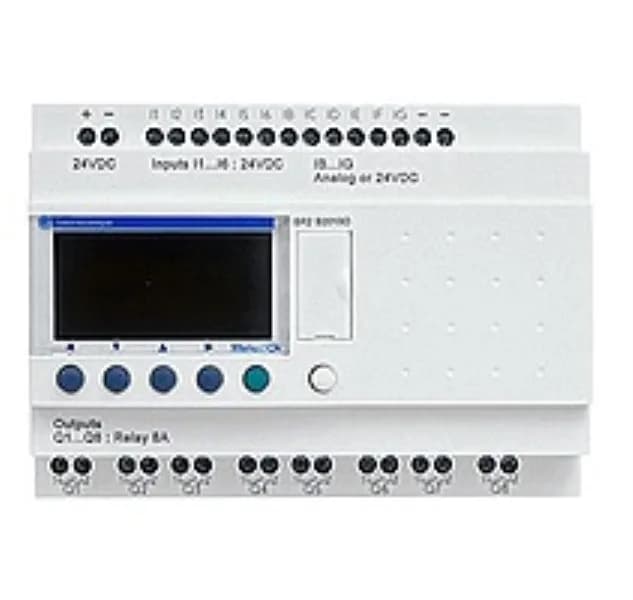

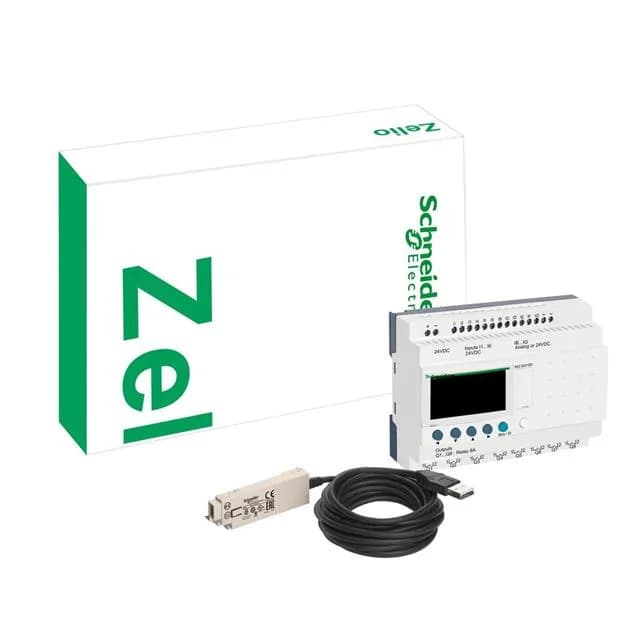

Schneider SR3PACK2BD Zelio Logic Discovery Pack, 24V DC

MPNSR3PACK2BD
Active

Schneider Zelio Logic modular discovery pack, 16 DI/10 relay DO, 24V DC, clock, active.

$148.59Ref. price · indicative, final on quote
Schneider Electric SR3PACK2BD datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

SR3PACK2BD key specifications
ParameterValue
Range of productZelio Logic
Discrete input typeResistive
Product or component typeModular discovery packs
Supply voltage limits19.2...30 V
Discrete input voltage24 V DC
Supply voltage24 V
Voltage state 0 guaranteed= 1.2 mA IB...IG used as discrete input circuit) >= 2.2 mA I1...IA and IH...IR discrete input circuit)
Voltage state 1 guaranteed>= 15 V I1...IA and IH...IR discrete input circuit >= 15 V IB...IG used as discrete input circuit
[Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Discrete input current4 mA
Maximum supply current190 mA without extension) 300 mA with extensions)
Current state 0 guaranteed= 10 mA 12 V relay output)

All specifications

SR3PACK2BD additional specifications
ParameterValue
Power dissipation in10 W with extensions 6 W without extension
Counting frequency1 kHz discrete input
Operating rate in0.1 Hz at Ie)relay output 10 Hz no load)relay output
I/O channels10 relay
IP degree of protectionIP20 IEC 60529 terminal block) IP40 IEC 60529 front panel)
Connections - terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Response time10 ms from state 0 to state 1)relay output 5 ms from state 1 to state 0)relay output
Pollution degree2 IEC 61131-2
Relative humidity95 % without condensation or dripping water
Operating altitude6561.68 ft (2000 m)
Maximum altitude transport10000 ft (3048 m)
Mechanical durability10000000 cycles relay output
StandardsIEC 61000-4-4 level 3 IEC 61000-4-12 IEC 60068-2-6 Fc IEC 60068-2-27 Ea IEC 61000-4-5 IEC 61000-4-6 level 3 IEC 61000-4-2 level 3 IEC 61000-4-3 IEC 61000-4-11
ClockWith
ChecksProgram memory on each power up
CategoryUS1000I22378
Cycle time6...90 ms
Backup time10 years 77 °F (25 °C)
Clock drift12 min/year 32...131 °F (0...55 °C) 6 s/month 77 °F (25 °C)
Local displayWith
Kit compositionCable PC SR2USB01 for connection to PC SR3B261BD
Tightening torque4.4 lbf.in (0.5 N.m)
Input (output number)26
Overvoltage categoryIII conforming to IEC 60664-1
Discrete input number16 IEC 61131-2 Type 1
Immunity to microbreaks1 ms
Reverse polarity protectionWith
Environmental characteristicEMC directive IEC 61000-6-2 EMC directive IEC 61000-6-3 EMC directive IEC 61000-6-4 EMC directive IEC 61131-2 zone B low voltage directive IEC 61131-2
Disturbance radiated (conducted)Class B EN 55022-11 group 1
Number or control scheme lines120 ladder 0...200 FBD
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation-4...104 °F (-20...40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 -4...131 °F (-20...55 °C) IEC 60068-2-1 and IEC 60068-2-2

Product details

The SR3PACK2BD: Cycle time 6 to 90 ms — enough for most logic and simple process control. Relay output response: 10 ms off-to-on, 5 ms on-to-off. Counting frequency up to 1 kHz on discrete inputs. Operating altitude 2000 m. For the wireman: screw terminals accept up to 2.5 mm² solid or 1.5 mm² with ferrule, torque at 0.5 N·m. IP20 on terminal block, IP40 front panel.

Compliance box tick

Standards include IEC 61000-4-2/3/4/5/6/11 level 3, IEC 60068-2-6 Fc and IEC 60068-2-27 Ea, IEC 61000-4-12, IEC 61000-4-11, and pollution degree 2.

Frequently asked questions

What is the closest alternative if I need just the controller?

The pack includes the SR3B261BD base unit. For a bare controller without the cable, order SR3B261BD directly.

Does this pack have a real-time clock?

Yes, a clock is present. Backup time lasts 10 years at 25 °C. Drift spec: 12 min/year over 0-55°C, 6 s/month at 25°C.

Does it check program memory on power-up?

Yes, program memory is checked on each power-up.

What compliance documents are available?

Standards listed include multiple IEC 61000-4 immunity tests at level 3, IEC 60068-2-6/27 vibration/shock. No specific RoHS/UL mention, but the IEC compliance covers EMC for industrial environments.
