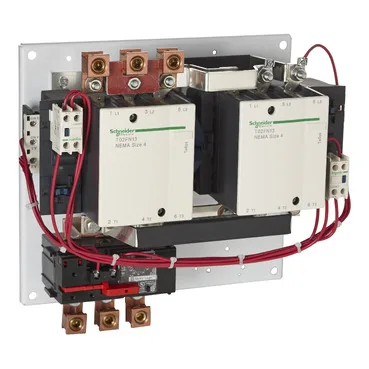

Schneider Electric T36FN23S7
MPNT36FN23S7
Obsolete
Rev starter TeSys NEMA Sz4 3P 480VAC
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Starter |
| Starter type | Reversing |
| Product range / family | TeSys N |
| Parameter | Value |
|---|---|
| Current rating | 135 A |
| Maximum voltage rating | 600 V AC |
| Horsepower rating (by voltage) | 40 HP 200 V AC 50 HP 230 V AC 100 HP 460 V AC 100 HP 575 V |
| NEMA size | 4 |
| Number of phases | 3 phase |
| Parameter | Value |
|---|---|
| Number of poles | 3P |
| Auxiliary contacts | 1 NO |
| Parameter | Value |
|---|---|
| Control circuit voltage | 500 V AC |
| Control circuit type | Common control circuit |
| Parameter | Value |
|---|---|
| Overload type / class | Solid state Motor Logic class 10/20 45...135 A |
| Parameter | Value |
|---|---|
| Electrical connection / terminals | Lugs ordered separately |
| Enclosure type / rating | Not rated (open device) |
| Parameter | Value |
|---|---|
| Certifications | UL Listed CSA |
MPN
T36FN23S7
