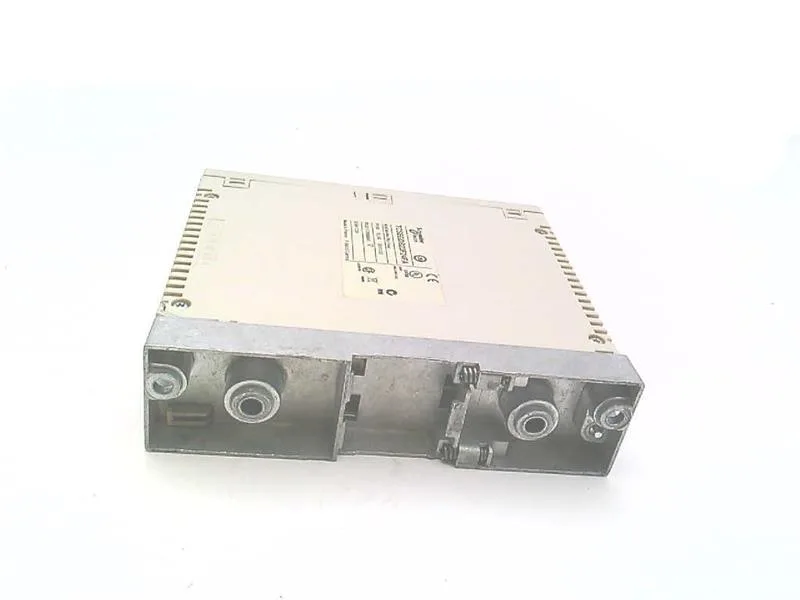

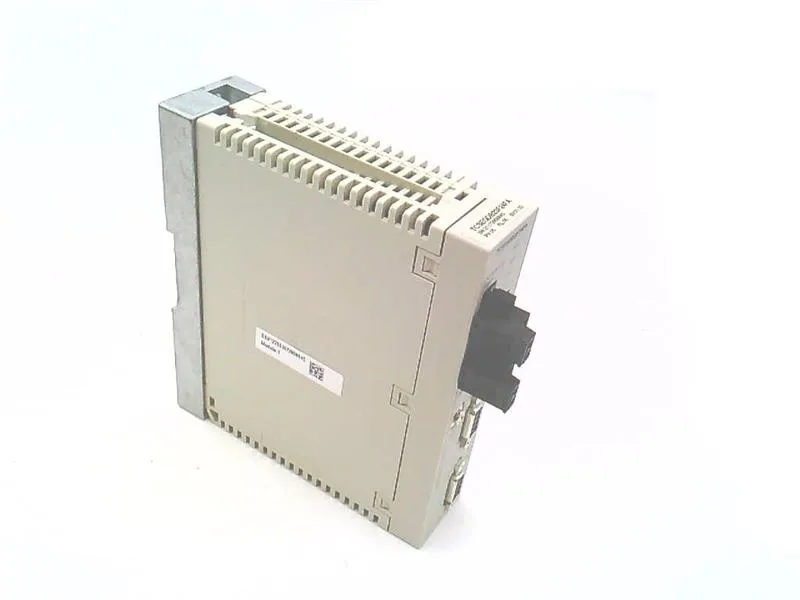

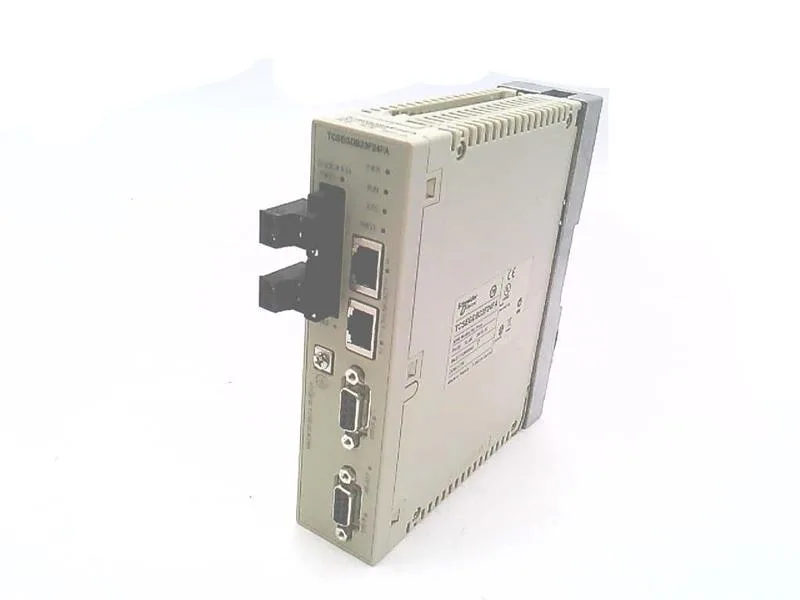

Schneider Electric TCSEGDB23F24FA
MPNTCSEGDB23F24FA
Active
Modbus Plus proxy module for Modicon M340 and Modicon M580|Modbus Plus proxy module for Modicon M340 and Modicon M580
$697.23 – $1,011.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Structure type | Industrial bus |
| Range of product | Modicon X80 |
| Product or component type | Modbus Plus proxy module |
| Integrated connection type | 2 Ethernet TCP/IP - RJ45 for Modbus TCP 2 Modbus - SUB-D 9 for Modbus Plus |
| Current consumption | 300 mA at 24 V DC external |
| Physical interface | 10/100BASE-T RS485 |
| Communication gateway | Ethernet Modbus TCP to Modbus Plus |
| Communication service | Modbus TCP messaging Modbus Plus messaging Configuration control Diagnostics Modbus Plus server (scanned by the PLC) FDR SNMP network management Read/write variables Global Data Peer cop dialogue |
| Relative humidity | 10...95 % without condensation |
| Operating altitude | <= 2000 m |
| Module format | Standard |
| Method of access | Token ring Modbus Plus CSMA/CD Modbus TCP |
| Transmission rate | 1 Mbit/s, 450 m bus for Modbus Plus per segment 1 Mbit/s, 1800 m bus for Modbus Plus with 3 repeaters 10...100 Mbit/s, 100 m bus for Modbus TCP without repeater |
| Number of server device | 128 |
| Transmission support medium | Modbus Plus single twisted pair cable Modbus TCP category 5 shielded twisted pair (STP) |
| Ambient air temperature for storage | -45...85 °C |
| Ambient air temperature for operation | 0...60 °C |
MPN
TCSEGDB23F24FA
