TCSESB083F23F0 (schneider) — datasheet specifications below.
TCSESB083F23F0 | schneider | industrial-networking
MPNTCSESB083F23F0
Active

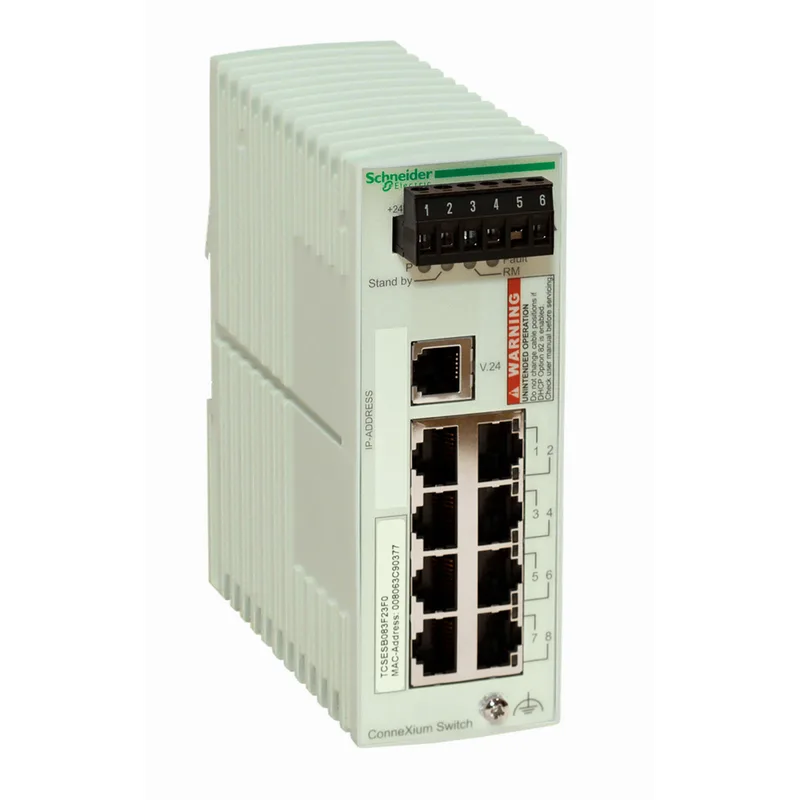

CONNEXIUM BASIC SWITCH 8TX|CONNEXIUM BASIC SWITCH 8TX
$390.70 – $831.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon Networking |
| Product or component type | Ethernet TCP/IP managed switch |
| Integrated connection type | Shielded RJ45 copper cable |
| Supply voltage limits | 9.6...32 V DC SELV |
| Supply voltage | 12...24 V |
| Power consumption in | 6 W |
| IP degree of protection | IP20 |
| Communication service | TFTP Quality of Service (QoS) Port monitoring Port mirroring |
| Communication port protocol | Ethernet TCP/IP HTTP SNMP LLDP SNTP MRP (Media Redundancy Protocol) |
| Mounting support | 35 mm symmetrical DIN rail |
| Electrical connection | Removable connector 6 ways power supply |
| Maximum cable distance between devices | 328.08 ft (100 m) copper cable |
All specifications
| Parameter | Value |
|---|---|
| Relative humidity | 10...95 % non-condensing |
| Depth | 4.4 in (111 mm) |
| Width | 1.9 in (47 mm) |
| Height | 5.2 in (131 mm) |
| Standards | UL 508 EN/IEC 61131 |
| Marking | CE UL RCM |
| Category | US1PC4118225 |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Redundancy | HiPER ring RSTP |
| Alarm output | 1 voltfree contact 1 A |
| Cybersecurity | Role-based access control |
| Port ethernet | 10/100BASE-TX - 8 copper cable |
| Alarm function | Power supply fault Data link status Switch fault Redundancy ring fault Incorrect configuration Temperature threshold |
| Ethernet service | Configuration via web server Multicast filtering Data stream control IGMP Snooping SNMP-Traps and SYSLOG |
| Local signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies 1 LED (red) for fault 1 dual colour LED (green/yellow) for ring manager 1 LED (green) for stand-by 1 dual colour LED (green/yellow) for channel diagnostic Device status |
| Function available | System information |
| Diagnostics run time | Signal contact Self test |
| Ethernet cabling system | TF switches |
| Transmission support medium | Twisted shielded pairs cable CAT 5E copper cable |
| Maximum number of switches in a ring | 50 |
| Ambient air temperature for operation | 32...140 °F (0...60 °C) |
| Maximum number of switches in cascade | Unlimited |
Product details
MPN
TCSESB083F23F0
