TM168E17 - Schneider Electric
MPNTM168E17
Obsolete

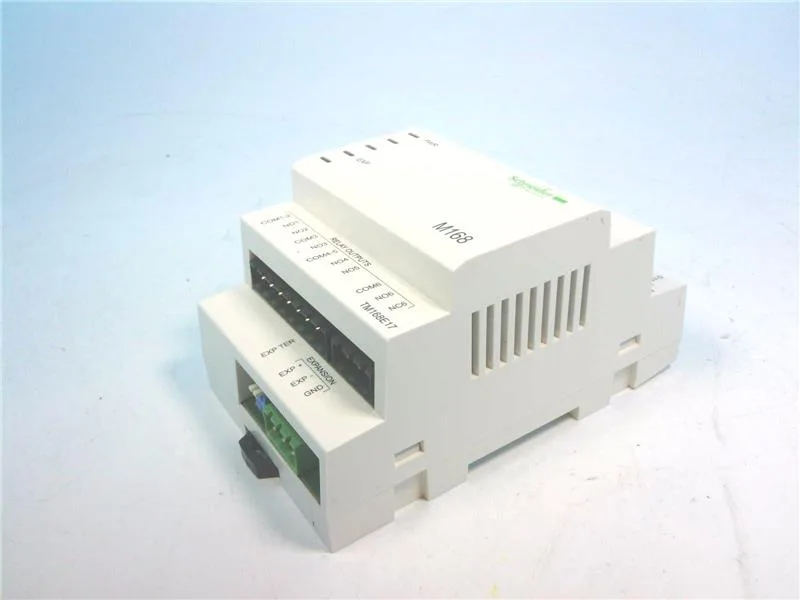

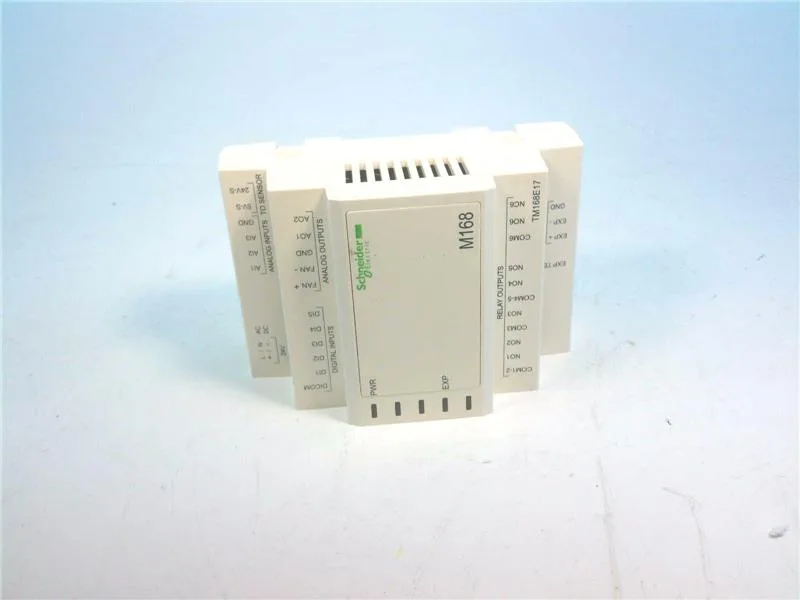

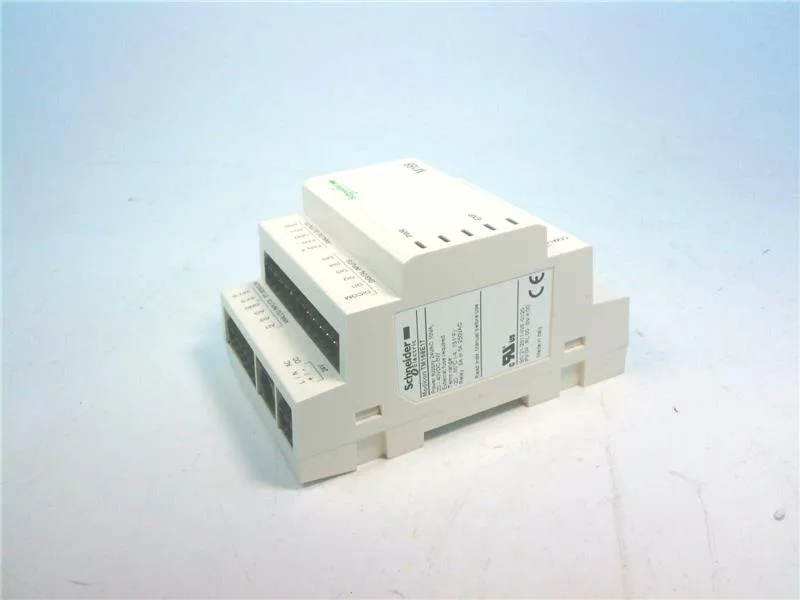

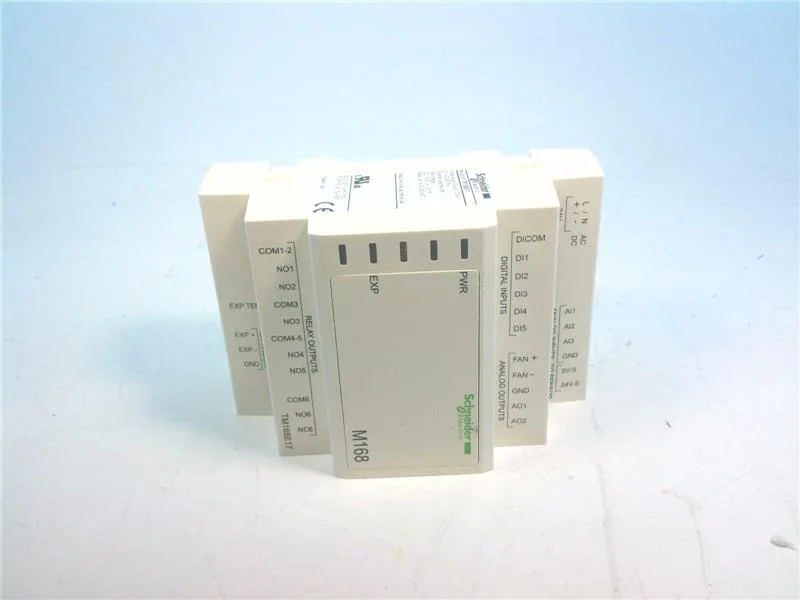

SQD TM168E17 EXPANSION MODULE 17|SQD TM168E17 EXPANSION MODULE 17 I/O
$474.45Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | Reverse polarity protection analog input voltage Overload protection analog output voltage Reverse polarity protection power supply |
| Range of product | Modicon M168 logic controller |
| Analogue input type | Current 0...20 mA/4...20 mA 0.01 mA Temperature probe -50...+120 °C 0.1 °CNTC Temperature probe -50...+150 °C 0.1 °CPTC Temperature probe -100...+200 °C 0.5 °CPt 1000 Current 0...10 V or 0...5 V ratio 0.01 V |
| Analogue output type | Voltage 0...10 V 0.01 V Current 0-20 mA or 4-20 mA 0.05 mA |
| Product or component type | I/O expansion module |
| Contacts type and composition | 1 C/O discrete output 5 NO discrete output |
| Supply voltage limits | 20.4...27.6 V |
| Supply voltage | 20...40 V DC 24 V AC |
| Load current | 8 A 5...30 V DC 8 A 24...250 V AC 5 A 5...30 V DC 5 A 24...250 V AC |
| Discrete output current | 8 mA relay output 5 mA relay output |
| Sensor power supply | 4.4...5 V DC 18...36 V DC |
| Power consumption in | 10 VA 24 V |
All specifications
| Parameter | Value |
|---|---|
| Maximum power consumption in | 26 W |
| Network frequency | 50/60 Hz |
| Operating rate in | 10 Hz - off load discrete output 8 mA 0.1 Hz - operating current discrete output 8 mA 20 Hz - off load discrete output 5 mA 0.1 Hz - operating current discrete output 5 mA |
| Network frequency limits | 47...63 Hz |
| IP degree of protection | IP20 IP40 front face: |
| Communication service | Open collector synchro on AC power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Response time | 10 ms closing discrete output 8 mA 5 ms opening discrete output 8 mA 8 ms closing discrete output 5 mA 4 ms opening discrete output 5 mA |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms |
| Storage altitude | 0...10000 ft (0...3048 m) |
| Relative humidity | 5...95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Vibration resistance | 3.5 mm constant amplitude 5...8.4 Hz) 1 gn constant amplitude 8.4...150 Hz) |
| Depth | 2.4 in (61.5 mm) |
| Width | 2.8 in (71 mm) |
| Height | 5.09 in (129.19 mm) |
| Electrical durability | 120000 cycles DC-12 8 A 30 V, 2 A 6000 cycles DC-13 8 A 24 V, 2 A 300 ms 300000 cycles AC-12 8 A 250 V, 2.5 A 6000 cycles AC-15 8 A 250 V, 3 A, cos phi = 0.3 120000 cycles DC-12 5 A 30 V, 2 A 200000 cycles DC-13 5 A 24 V, 1 A 48 ms 300000 cycles AC-12 5 A 250 V, 2.5 A 50000 cycles AC-15 5 A 250 V, 3 A, cos phi = 0.4 |
| Mechanical durability | 10000000 cycles relay output |
| Standards | EN/IEC 61000-6-1 EN/IEC 60730-1 EN/IEC 61000-6-3 |
| Marking | CE |
| Category | 22535-M168 HVAC CONTROLLER |
| LSB value | 10 mV analog output voltage 0.02 mA analog output current 0.07 °C analog input NTC 0.5 °C analog input Pt 1000 5 mV analog input voltage 0.01 mA analog input current |
| Minimum load | 10 mA 12 V |
| Contacts usage | Free contact |
| Data backed up | Date and hour internal battery, 3 days |
| Input impedance | Discrete input 0...< 500 Ohm at state 0 Discrete input >= 600 Ohm at state 1 |
| Input (output number) | 5 discrete input 3 configurable analog input 6 discrete output 1 dedicated PWM output 2 configurable analog output |
| Discrete input logic | Sink or source (positive/negative) |
| Load impedance ohmic | >= 1000 Ohm voltage 40...300 Ohm current |
| Overvoltage category | III |
| Analogue input number | 3 |
| Discrete input number | 5 |
| Analogue output number | 2 |
| Discrete output number | 5 8 mA) 3 5 mA) |
| Absolute accuracy error | -5 %...+2 % of full scale 1...5 kOhm analog output voltage +/- 2 % of full scale > 5 kOhm analog output voltage +/- 3 % of full scale analog output current +/- 0.5 % of full scale analog input |
| Immunity to microbreaks | 10 ms |
| Ambient air temperature for storage | -22...158 °F (-30...70 °C) |
| Ambient air temperature for operation | 14...131 °F (-10...55 °C) UL 14...149 °F (-10...65 °C) |
