Schneider Electric TM172DCLFG

Schneider TM172DCLFG Modicon M172 Touch Display, 320x240, IP

MPNTM172DCLFG
Active

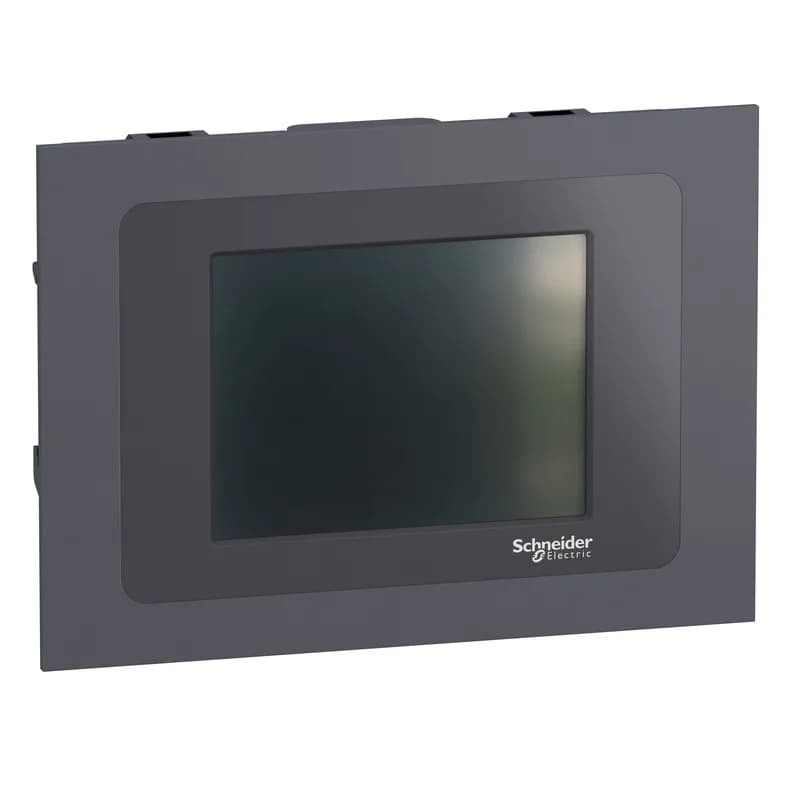

Schneider Electric Modicon M171/M172, TM172DCLFG LCD colour touchscreen display module, 320 x 240 pixels, 24 V AC/DC, IP65 front panel, Gray.

$270.51 – $489.00Ref. price · indicative, final on quote
Schneider Electric TM172DCLFG datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM172DCLFG key specifications
ParameterValue
Display typeLCD display Colour touchscreen
Range of productModicon M171/M172
Product or component typeDisplay module
Supply voltage24 V AC/DC
Power consumption in1.3 W 3.2 VA
IP degree of protectionIP65 front panel:
Pollution degree2
ColorGray
Depth1.4 in (35 mm)
Width5.3 in (134 mm)
Height3.8 in (96 mm)
StandardsUL 60730-1 UL 60730-2-9 CSA E60730-2-9 IEC 61000-4-3 IEC 61000-4-6 CAN/CSA-E60730-1 IEC 61000-4-2 IEC 61000-4-4 IEC 60730-1 IEC 61000-4-11 IEC 61000-4-5 IEC 60730-2-9 UL 94

All specifications

TM172DCLFG additional specifications
ParameterValue
SupplyExternal source
CategoryUS1PC1222537
Directives2014/30/EU - electromagnetic compatibility
Display resolution320 x 240 pixels
Overvoltage categoryII
Ambient air temperature for storage-22...140 °F (-30...60 °C)
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

Display module for Modicon M171/M172

The Schneider TM172DCLFG is an LCD colour touchscreen display module for the Modicon M171/M172 controller family. It runs on a 24 V AC/DC supply, drawing 1.3 W / 3.2 VA. The 320 x 240 pixel resolution and IP65 front panel rating make it suitable for panel-mounted HMI applications where occasional washdown or dust exposure occurs.

Listed to UL 60730-1, UL 60730-2-9, CSA E60730-2-9, CAN/CSA-E60730-1, and IEC/EN 60730-1/-2-9. Also meets EMC directive 2014/30/EU. Pollution degree 2, overvoltage category II per the IEC framework. The enclosure is rated IP65 on the front panel only; rear protection depends on the installation.

Physical dimensions and mounting

Width 5.3 in (134 mm), height 3.8 in (96 mm), depth 1.4 in (35 mm). Color is Gray.

Frequently asked questions

What are the key ratings?

LCD color touchscreen, 320 x 240 pixels, 24 V AC/DC supply, 1.3 W / 3.2 VA, IP65 front panel, operating temperature –20 to 60 °C, storage –30 to 60 °C.

What compliance documentation is available?

UL 60730-1, UL 60730-2-9, CSA E60730-2-9, IEC/EN 60730-1/-2-9, and EMC directive 2014/30/EU.
