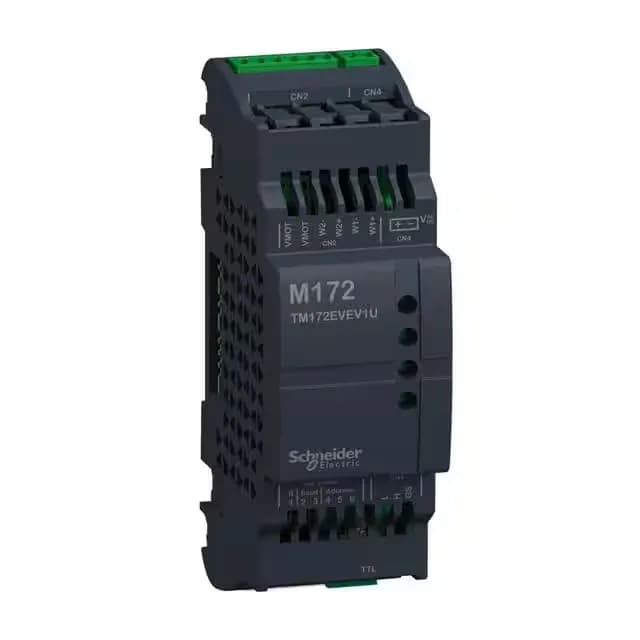

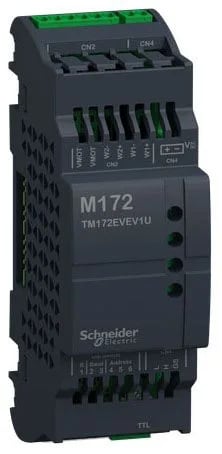

Schneider Electric TM172EVEV1U
MPNTM172EVEV1U
Active
M172 EXPANSION 1 EEV DRIVER UNIP
$80.09 – $84.48Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Display type | Without Display |
| Range of product | Modicon M171/M172 |
| Product or component type | Expansion unit |
| Supply voltage | 24 V +/- 10 % AC 20...38 V DC |
| Power consumption in | 9 W 24 V DC |
| Maximum power consumption in | 12 VA 24 V AC |
| IP degree of protection | IP20 |
| Mounting support | DIN rail |
| Pollution degree | 2 |
| Relative humidity | 5...95 % non-condensing |
| Depth | 2.4 in (60 mm) |
| Width | 1.4 in (36 mm) |
All specifications
| Parameter | Value |
|---|---|
| Height | 4.4 in (113 mm) |
| Standards | EN 60730-1 EN 60730-2-9 UL 60730-1 UL 60730-2-9 CAN/CSA-E60730-1 CSA E60730-2-9 IEC 6100-4-2 IEC 6100-4-3 IEC 6100-4-4 IEC 6100-4-5 IEC 6100-4-6 IEC 6100-4-11 EN 60068-2-27 EN 60068-2-6 Fc UL94 (material V0) |
| Category | US1PC1222537 |
| Number of port | 1 CAN port - 1 removable 3-way screw connector |
| Overvoltage category | I |
| Ambient air temperature for storage | -22...158 °F (-30...70 °C) |
| Ambient air temperature for operation | -4...149 °F (-20...65 °C) |
MPN
TM172EVEV1U
