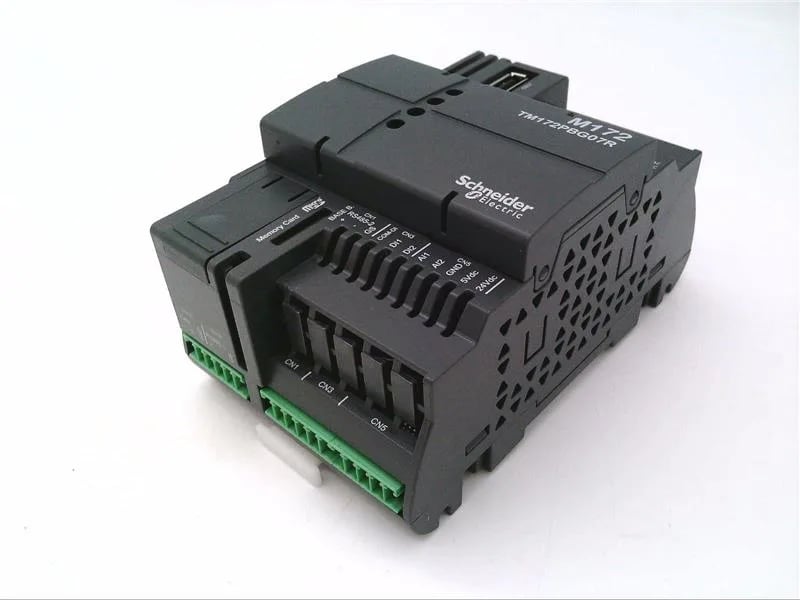

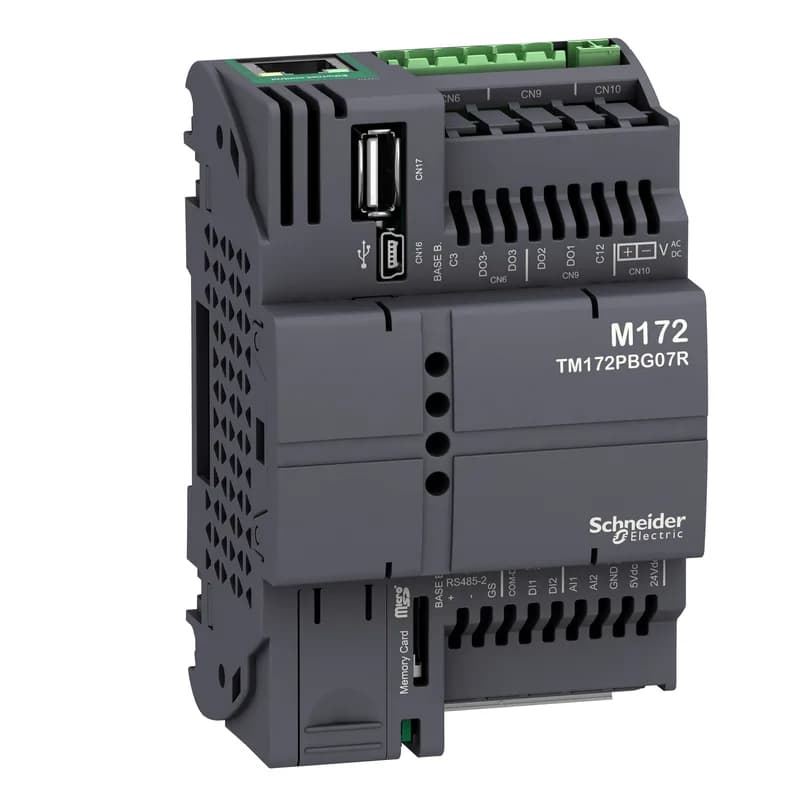

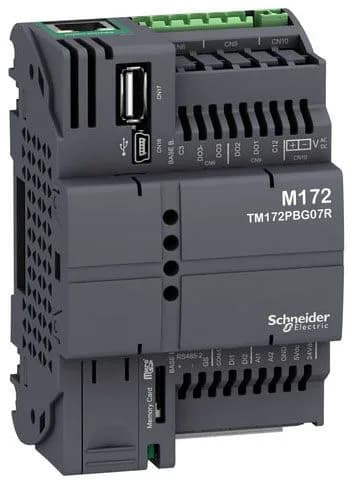

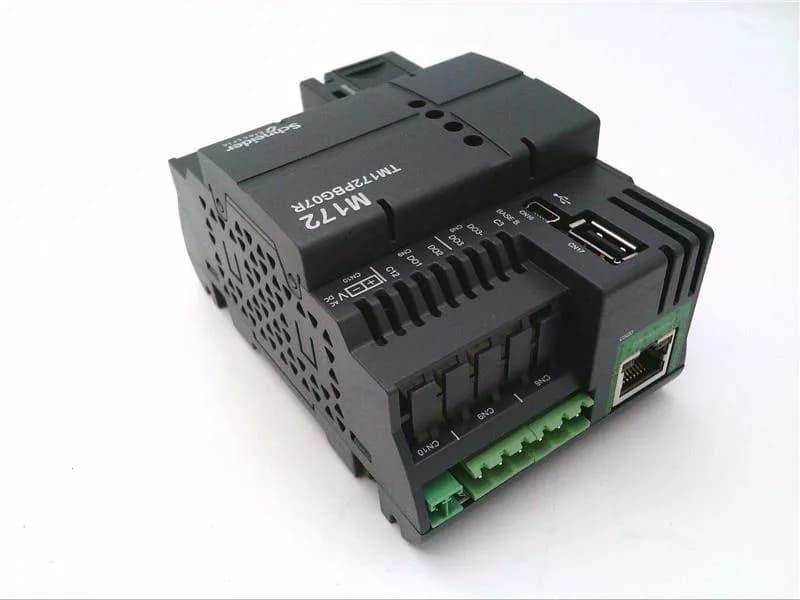

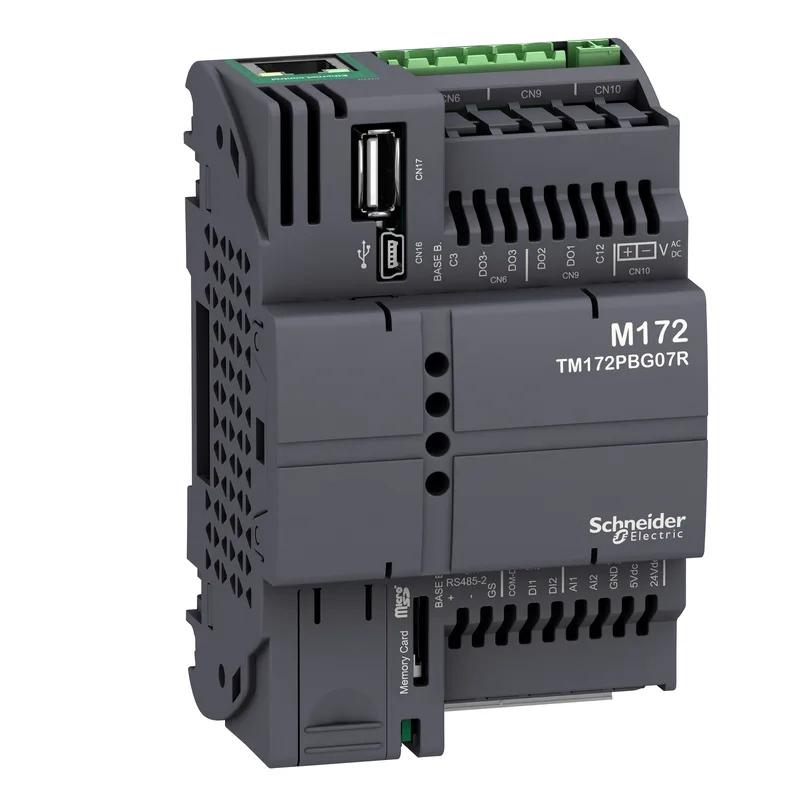

Schneider Electric TM172PBG07R

Schneider TM172PBG07R Modicon M172 HVAC Controller, 7 I/O

MPNTM172PBG07R
Active

Square D / Schneider Electric Modicon M172 HVAC Programmable Controller, TM172PBG07R, 7 I/O (2 DI + 2 AI + 3 DO), without display, Ethernet + RS485 + CAN + USB.

$185.42 – $273.00Ref. price · indicative, final on quote
Schneider Electric TM172PBG07R datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM172PBG07R key specifications
ParameterValue
Display typeWithout Display
Range of productModicon M171/M172
Analogue input typeNTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm at 25 °C) NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm at 25 °C) voltage 0...10 V 1 digit > 10 kOhm voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric) impedance 0...1500 hOhm 1 hOhm 10 kOhm impedance 0...300 daOhm 1 daOhm 1500 Ohm PTC temperature probe - 55...150 °C 0.1 °C 1500 Ohm Pt 1000 temperature probe - 200...850 °C 0.1 °C 1500 Ohm current 0...20 mA/4...20 mA 1 digit < 150 Ohm direct input 10 kOhm Dry contact)
Product or component typeProgrammable controllers
Discrete input voltage24 V AC/DC
Supply voltage24 V +/- 10 % AC 20...38 V DC
Discrete input current5 mA AC/DC
Discrete output current3 A relay SPST 3 A relay SPDT
Sensor power supply5 V DC 40 mA supplied by the controller 24 V DC 100 mA supplied by the controller
Power consumption in10 W 24 V AC/DC
IP degree of protectionIP20
Mounting supportDIN rail Panel mounting with accessory

All specifications

TM172PBG07R additional specifications
ParameterValue
Pollution degree2
Relative humidity5...95 % non-condensing
Operating altitude0...6561.68 ft (0...2000 m)
Depth2.4 in (60.5 mm)
Width2.8 in (72 mm)
Height4.3 in (110 mm)
StandardsIEC 61000-4-6 UL 60730-1 IEC 61000-4-3 EN 60730-1 IEC 61000-4-5 IEC 61000-4-2 EN 60068-2-6 Fc EN 60730-2-9 CSA E60730-2-9 EN 60068-2-27 CAN/CSA-E60730-1 IEC 61000-4-11 UL 60730-2-9 IEC 61000-4-4 UL94 (material V0)
VariantProgrammable
CategoryUS1PC1222537
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Number of port1 CAN port - screw terminal block 1 USB type A - USB type A female 1 USB type mini B - USB device port Mini-B 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)
Realtime clockBuilt-in clock, clock drift <= 30 s/month at -4...140 °F (-20...60 °C)
Input impedance10 kOhm
Local signalling1 LED (red) for programmable 1 LED (yellow) for programmable 1 LED (green) for programmable 1 LED (green) for power
Input (output number)2 digital input 2 analog input 3 digital output
Discrete input logicSink or source (positive/negative) up to 2 kHz
Measurement accuracy0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit 4...20 mA +/- 1 % of full scale +/- 1 digit 0...10 V +/- 1 % of full scale +/- 1 digit 0...5 V +/- 1 % of full scale +/- 1 digit DaOhm 0...300 daOhm +/- 2.5 daOhm NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C NTC 103AT-2 Beta 3435 - 50...110 °C +/- 1 °C PTC - 55...155 °C +/- 1.1 °C Pt 1000 - 200...-100 °C +/- 10 °C Pt 1000 - 100...-50 °C +/- 2.5 °C Pt 1000 - 50...100 °C +/- 1.5 °C Pt 1000 100...400 °C +/- 2.4 °C Pt 1000 400...850 °C +/- 10 °C HOhm 0...750 hOhm +/- 8.5 hOhm HOhm 750 hOhm...1500 hOhm +/- 24 hOhm
Overvoltage categoryII
Total inputs (outputs)7
Analogue input number2 configurable by pair
Discrete input number2
Discrete output number1 relay outputs SPDT with independent common 2 relay outputs SPST with same common
Product specific applicationHVAC
Ambient air temperature for storage-22...158 °F (-30...70 °C)
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

The Schneider Electric TM172PBG07R is a Modicon M172 programmable logic controller built for HVAC and building automation. Its I/O set—2 digital inputs, 2 analog inputs configurable for NTC, PTC, Pt1000, 0–10 V, 0–20 mA, and 3 relay outputs (one SPDT, two SPST with a shared common)—covers the sensor and actuator mix in an air-handling unit or zone controller without needing signal conditioners.

Mounts on DIN rail or panel with accessory; IP20 enclosure and pollution degree 2 keep it clean for cabinet install. Communication ports: one CAN over screw terminals, two RS485 (Modbus or BACnet MS/TP), one Ethernet (Modbus TCP and BACnet IP with webserver), plus USB host and device. The relay outputs switch 3 A each; the two SPST outputs share a common, so plan your return wiring accordingly.

Frequently asked questions

What communication ports does TM172PBG07R include?

One CAN screw terminal, two RS485 (Modbus/BACnet MS/TP), one Ethernet (Modbus TCP/BACnet IP), one USB type A host, and one USB mini-B device.

What standards does TM172PBG07R comply with?

It complies with UL 60730-1, CSA E60730-1, EN 60730-1/2-9, and IEC 61000-4-x series for EMC, plus UL94 V0 for materials.
