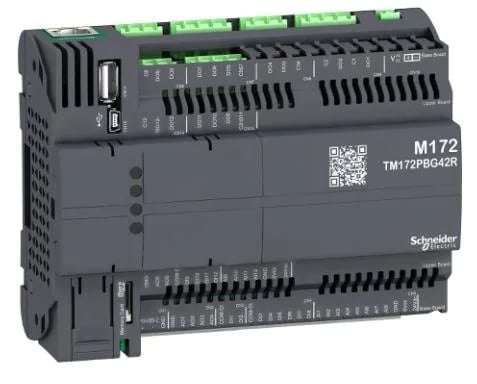

Schneider Electric TM172PBG42R

SQUARE D TM172PBG42R Modicon M172 Controller, 42 I/O

MPNTM172PBG42R
Active

SQUARE D Modicon M172 programmable controller, TM172PBG42R, 42 total I/O with 12 configurable analog inputs, Ethernet and RS485 communications, built-in real-time clock.

$538.48Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM172PBG42R key specifications
ParameterValue
Display typeWithout Display
Range of productModicon M171/M172
Analogue input typeimpedance 0...1500 hOhm impedance 0...300 daOhm direct input NTC temperature probe - 50...110 °C 0.1 °C extended) voltage 0...10 V NTC temperature probe - 40...150 °C 0.1 °C current 0...20 mA/4...20 mA PTC temperature probe - 55...150 °C 0.1 °C voltage 0...5 V absolute or ratiometric) Pt 1000 temperature probe - 200...850 °C 0.1 °C
Product or component typeProgrammable controllers
Discrete input voltage24 V AC/DC
Supply voltage24 V +/- 10 % AC 20...38 V DC
Discrete input current2.5 mA
Discrete output current1 A relay SPDT 3 A relay SPST
Sensor power supply5 V DC 50 mA supplied by the controller 24 V DC 150 mA supplied by the controller
Power consumption in15 W 24 V AC/DC
IP degree of protectionIP20
Mounting supportPanel mounting with accessory DIN rail

All specifications

TM172PBG42R additional specifications
ParameterValue
Pollution degree2
Relative humidity5...95 % non-condensing
Operating altitude0...6561.68 ft (0...2000 m)
Depth2.4 in (60.5 mm)
Width5.7 in (144 mm)
Height4.3 in (110 mm)
StandardsEN/IEC 60730 UL94 (material V0)
VariantProgrammable
CategoryUS1PC1222537
Directives2006/95/EC - low voltage directive 86/188/EEC - physical agents (noise) directive
Number of port1 CAN port - screw terminal block 1 USB type A - USB type A female 1 USB type mini B - USB device port Mini-B 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)
Realtime clockBuilt-in clock at -4...140 °F (-20...60 °C)
Input impedance10 kOhm
Local signalling1 LED (red) for programmable 1 LED (yellow) for programmable 1 LED (green) for programmable 1 LED (green) for power
Input (output number)12 analog input 6 analog output 12 digital input 12 digital output
Discrete input logicSink or source (positive/negative)
Overvoltage categoryII
Total inputs (outputs)42
Analogue input number12 configurable by pair
Discrete input number12
Analogue output number4 voltage 0...10 V 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)
Discrete output number5 relay outputs SPST with same common 2 relay outputs SPST with independent common 2 relay outputs SPDT with same common 3 relay outputs SPST with independent common
Product specific applicationHVAC and pumping solution
Ambient air temperature for storage-22...158 °F (-30...70 °C)
Ambient air temperature for operation-4...140 °F (-20...60 °C) UL 60730-1 -4...149 °F (-20...65 °C) with derating UL 60730-1

Product details

Controller Overview for HVAC and Pumping Applications

The TM172PBG42R is a current-production Modicon M172 programmable controller built for HVAC and pumping solutions. Its 42 mixed I/O include 12 configurable analog inputs and multiple communication options—Ethernet Modbus TCP/BACnet IP, dual RS485 for Modbus serial or BACnet MS/TP, and USB—making it a fit for building management and pumping station controls.

I/O Configuration and Field Wiring

The 12 discrete inputs accept 24 V AC/DC and are configurable sink or source. Relay outputs are split across groupings: five SPST with a common, two SPST independent common, two SPDT same common, and three SPST independent common. Each SPST relay is rated 3 A, SPDT at 1 A. Analog outputs include four 0–10 V and two that can be 4–20 mA, 0–10 V, or 2 kHz PWM.

Power, Mounting, and Environment

Runs on 24 V AC/DC (±10%) drawing 15 W. Rated IP20, pollution degree 2, with an operating range of -4 to 140 °F (-20 to 60 °C). The built-in real-time clock holds at -4…140 °F (-20…60 °C).

Frequently asked questions

What is TM172PBG42R's listed depth?

The depth is 2.4 inches (60.5 mm).

What is its width?

The width is 5.7 inches (144 mm).

What compliance documentation does this brand provide for TM172PBG42R?

It meets EN/IEC 60730 and UL94 V0 material, and complies with the Low Voltage Directive 2006/95/EC and the noise directive 86/188/EEC.
