Schneider Electric TM172PBG42RI

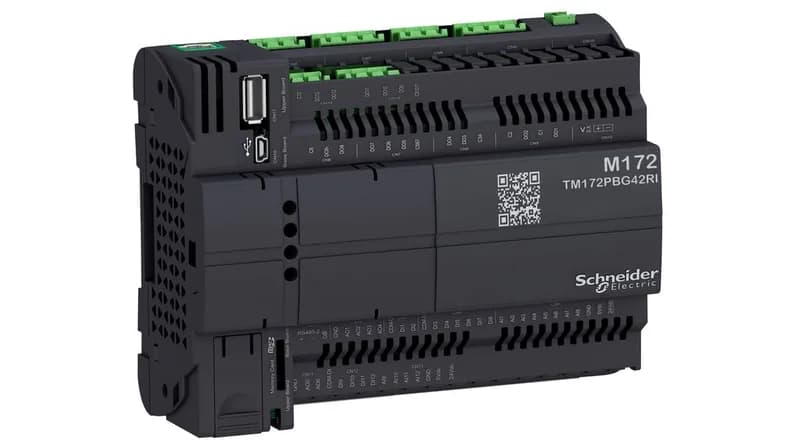

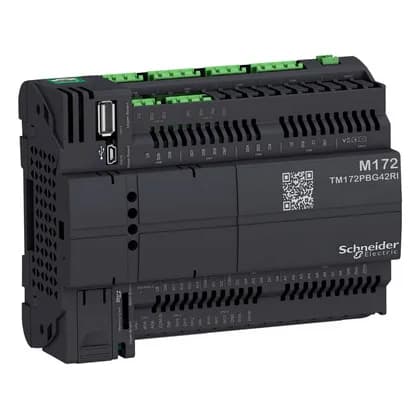

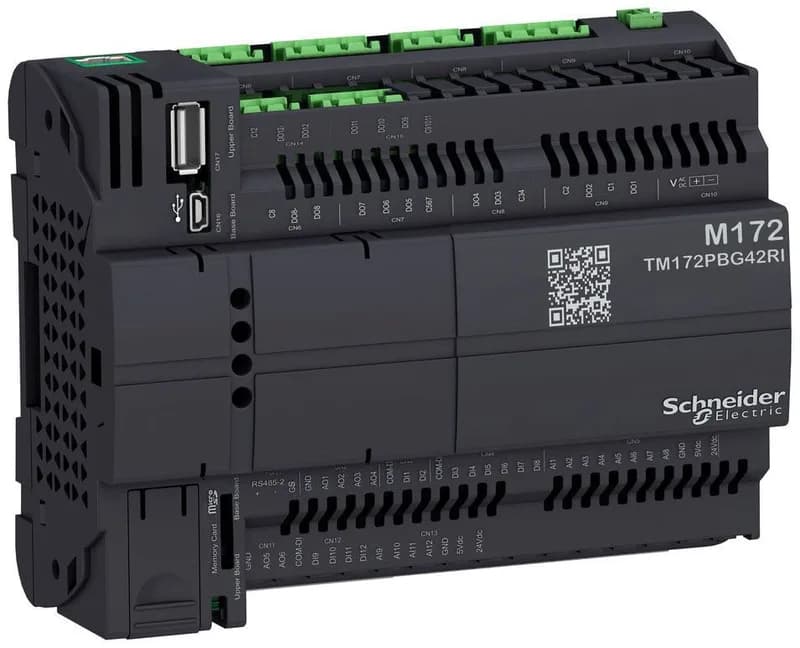

Schneider TM172PBG42RI Modicon M172 HVAC Controller, 42 I/O

MPNTM172PBG42RI
Active

Schneider Electric Modicon M172 programmable controller TM172PBG42RI, 42 I/O, HVAC application, Ethernet and RS485 ports, without display.

$354.33 – $540.53Ref. price · indicative, final on quote
Schneider Electric TM172PBG42RI datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM172PBG42RI key specifications
ParameterValue
Display typeWithout Display
Range of productModicon M171/M172
Analogue input typeimpedance 0...1500 hOhm 1 hOhm 10 kOhm impedance 0...300 daOhm 1 daOhm 2 kOhm NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm voltage 0...10 V 1 digit > 10 kOhm NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm extended) current 0...20 mA/4...20 mA 1 digit < 150 Ohm PTC temperature probe - 55...150 °C 0.1 °C 2 kOhm voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric) Pt 1000 temperature probe - 200...850 °C 0.1 °C 2 kOhm direct input > 10 kOhm
Product or component typeProgrammable controllers
Discrete input voltage24 V AC/DC
Supply voltage24 V +/- 10 % AC 20...38 V DC
Discrete input current2.5 mA
Discrete output current3 A relay SPDT 3 A relay SPST
Sensor power supply5 V DC 50 mA supplied by the controller 24 V DC 150 mA supplied by the controller
Power consumption in14 W 24 V AC/DC
IP degree of protectionIP20
Mounting supportPanel mounting with accessory DIN rail

All specifications

TM172PBG42RI additional specifications
ParameterValue
Pollution degree2
Relative humidity5...95 % non-condensing
Operating altitude0...6561.68 ft (0...2000 m)
Depth2.4 in (60.5 mm)
Width5.7 in (144 mm)
Height4.3 in (110 mm)
StandardsCAN/CSA-E60730-1 CSA E60730-2-9 EN 60068-2-27 EN 60068-2-6 Fc EN 60730-1 EN 60730-2-9 UL 60730-1 UL 60730-2-9 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-11 UL94 (material V0)
VariantProgrammable
CategoryUS1PC1222537
Directives2014/30/EU - electromagnetic compatibility 2014/35/EU - low voltage directive
Number of port1 CAN port - screw terminal block 1 USB type A - USB type A female 1 USB type mini B - USB device port Mini-B 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)
Realtime clockBuilt-in clock, clock drift <= 30 s/month at -4...149 °F (-20...65 °C)
Input impedance10 kOhm
Local signalling1 LED (red) for programmable 1 LED (yellow) for programmable 1 LED (green) for programmable 1 LED (green) for power
Input (output number)12 analog input 6 analog output 12 digital input 12 digital output
Discrete input logicSink or source (positive/negative)
Measurement accuracyNTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C NTC 103AT-2 Beta 3435 - 50...110 °C +/- 1 °C PTC - 55...155 °C +/- 1.1 °C Pt 1000 - 200...-100 °C +/- 10 °C Pt 1000 - 100...-50 °C +/- 2.5 °C Pt 1000 - 50...100 °C +/- 1.5 °C Pt 1000 100...400 °C +/- 2.4 °C Pt 1000 400...850 °C +/- 10 °C 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit 4...20 mA +/- 1 % of full scale +/- 1 digit 0...10 V +/- 1 % of full scale +/- 1 digit 0...5 V +/- 1 % of full scale +/- 1 digit HOhm 0...1500 hOhm +/- 8.5 hOhm DaOhm 0...300 daOhm +/- 2.5 daOhm
Overvoltage categoryII
Total inputs (outputs)42
Analogue input number12 configurable by pair
Discrete input number12
Analogue output number4 voltage 0...10 V 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)
Discrete output number2 relay outputs SPDT with independent common 3 relay outputs SPST with same common 5 relay outputs SPST with same common 2 relay outputs SPST with independent common
Product specific applicationHVAC control
Ambient air temperature for storage-22...158 °F (-30...70 °C)
Ambient air temperature for operation-4...149 °F (-20...65 °C) UL 60730-1 -4...140 °F (-20...60 °C) horizontal UL 60730-1

Product details

HVAC controller with 42 I/O

The Schneider TM172PBG42RI is a Modicon M172 programmable controller designed for HVAC control, offering 42 I/O points: 12 digital inputs (24 V AC/DC sink/source), 12 relay digital outputs (SPST/SPDT, 3 A), 12 analog inputs configurable by pair (0-10 V, 0/4-20 mA, NTC/PTC/Pt1000), and 6 analog outputs (4 voltage, 2 voltage/current/PWM). Built-in real-time clock drifts under 30 s/month across the -4 to 149 °F operating range. Communication stack includes Ethernet (Modbus TCP and BACnet IP), two RS485 ports (Modbus serial or BACnet MS/TP), USB for programming, and a CAN port. No display on this variant.

Mounts on DIN rail using an accessory (panel mount also possible). Dimensions: 5.7 x 4.3 x 2.4 in (144 x 110 x 60.5 mm). IP20 rated, pollution degree 2, overvoltage category II. Power draw is 14 W at 24 V AC/DC (20-38 V DC or 24 V ±10% AC). Digital output relay contacts rated 3 A per output. Discrete inputs are sink or source, 2.5 mA at 24 V AC/DC. Sensor power supply provides 5 V DC at 50 mA and 24 V DC at 150 mA.

Carries CE marking under EMC directive 2014/30/EU and Low Voltage directive 2014/35/EU. Material flammability rating UL94 V0. Ambient storage -22 to 158 °F, operation -4 to 149 °F (UL derated to 140 °F horizontal). Lifecycle stage is current — no discontinuation risk, no last-time buy needed for this code.

Frequently asked questions

What compliance documentation does the TM172PBG42RI meet?

The controller carries UL 60730-1, CSA E60730-1, EN 60730-1 and EN 60730-2-9, plus EN 60068-2-27/2-6 for shock and vibration, and IEC 61000-4-2/3/4/5/6/11 for EMC. It also meets EMC and Low Voltage directives for CE marking. Material is UL94 V0.

MPN
TM172PBG42RI
