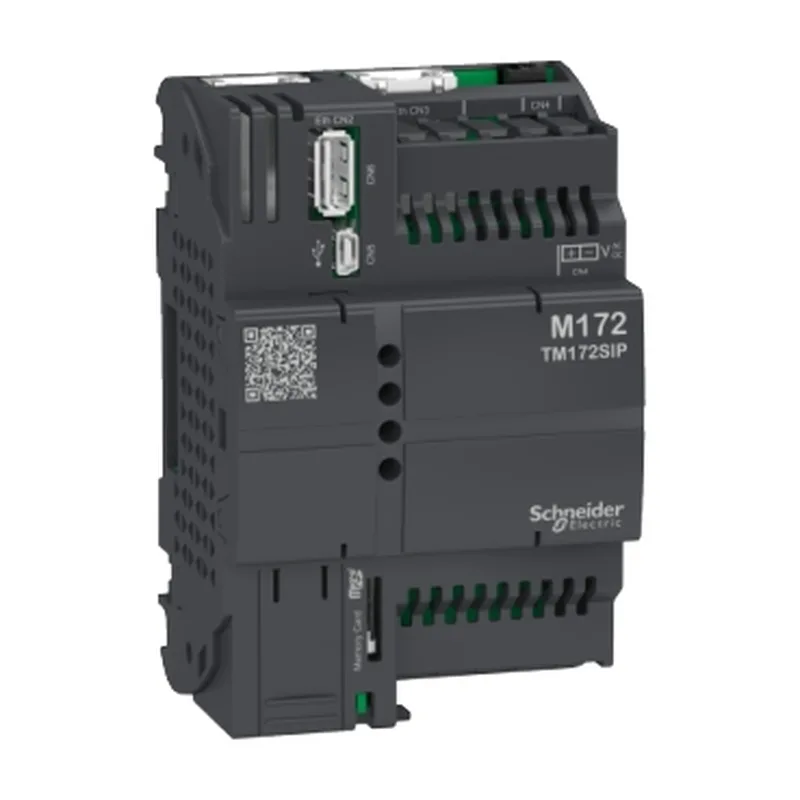

TM172SIP - Schneider Electric
MPNTM172SIP
Active
M172 IIoT Secure Interface Plug-in
$317.75Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon M171/M172 |
| Product or component type | Communication module |
| Integrated connection type | 2 Ethernet TCP/IP 2 x RJ45 in parallel - ethernet cable - embedded HTTPS server 1 USB (V2.0) port USB host port type A 1 USB (V2.0) port USB device port type mini-B |
| Power consumption in | 8 W |
| IP degree of protection | IP20 |
| Physical interface | 10 BASE-T/100 BASE-TX/1000 BASE-T - 10/100/1000 BASE-TX |
| Communication port protocol | Modbus TCP/IP HTTPS FTPS NTP SMTPS SNMP v2 SNMP v3 MQTT over TLS |
| Pollution degree | 2 |
| Shock resistance | 1 g 11 ms |
| Relative humidity | 5...95 % non-condensing |
| Depth | 2.8 in (72 mm) |
| Width | 4.3 in (110 mm) |
All specifications
| Parameter | Value |
|---|---|
| Height | 2.4 in (60 mm) |
| Supply | External power supply |
| Concept | Modbus |
| Category | US1PC1222537 |
| Local signalling | LED (green) for power ON LED (red) for USER (programmable) LED (yellow) for USER (programmable) LED (green) for USER (programmable) |
| Transmission rate | 10/100/1000 Mbps for connecting Ethernet network |
| Memory description | Internal RAM 256 MB Flash 512 MB |
| Overvoltage category | I |
| Ambient air temperature for storage | -22...158 °F (-30...70 °C) |
| Ambient air temperature for operation | -4...131 °F (-20...55 °C) |
MPN
TM172SIP
